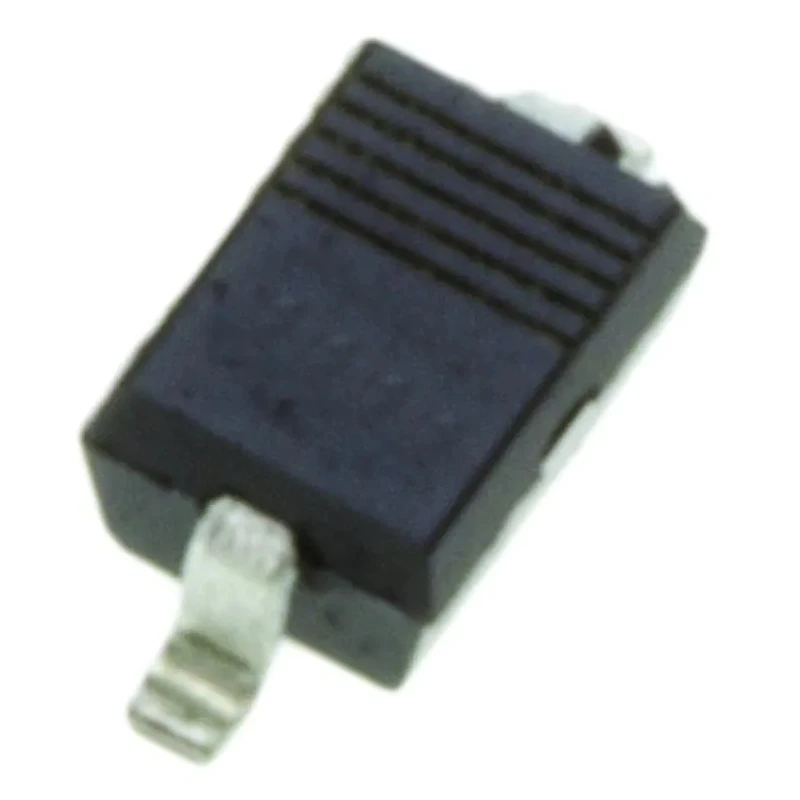

STMicroelectronics Schottky Diode 40 V 300 mA 2-Pin SOD-323 BAT54JFILM

STMicroelectronics BAT54JFILM is a high-efficiency Schottky Diode designed for demanding electronic applications requiring a surface-mount device. With a compact 2-pin SOD-323 package, this diode offers excellent electrical characteristics, including a maximum continuous forward current of 300 mA and a peak reverse voltage of 40 V, ensuring reliable performance in power management circuits.

Its low forward voltage drop of 900 mV enhances power efficiency by minimizing conduction losses, while a rapid peak reverse recovery time of only 5 nanoseconds enables fast switching suitable for switching power supplies and high-frequency rectification applications.

This diode operates effectively over a wide temperature range from -40°C to 150°C, making it suitable for industrial, automotive (non-automotive standard compliant), manufacturing, and general electronic device use cases. The diode’s small form factor with dimensions of 1.8 mm length, 1.45 mm width, and 1.07 mm height facilitates compact circuit designs, ideal for modern miniaturized electronics.

Its two-pin configuration and single diode design within the BAT54 series provide flexibility for diverse semiconductor applications. The diode’s peak non-repetitive forward surge current rating of 1 A equips the device to handle transient surges, increasing robustness in various operational environments.

Applications include power rectification, voltage clamping, reverse polarity protection, and efficient signal correction in electronic circuits. The robust semiconductor characteristics of the BAT54JFILM, combined with STMicroelectronics’ quality standards, make it a reliable component in discrete semiconductor collections.

The diode has a SOD-323 package type suitable for compact PCB mounting. Maximum forward voltage is 900 mV supporting efficient power handling. Peak reverse recovery time is low at 5 nanoseconds, enabling high-speed performance.

Operates reliably between -40°C and 150°C, suitable for various environmental conditions. Designed as a single diode configuration in the BAT54 series for discrete semiconductor needs. Features a peak non-repetitive forward surge current of 1 A for transient tolerance.

Its small dimensions are 1.8 mm length, 1.45 mm width, and 1.07 mm height allowing for space-saving design. Pin count is two, facilitating simple electrical connections in circuits. Peak reverse current is modest at 100 microamperes, contributing to reduced leakage currents.

Ideal for use in power management, rectification, and signal applications in electronics and electrical systems. Consider browsing for more semiconductor and diode solutions at EnvMart to suit your industrial and electronic assembly needs.
