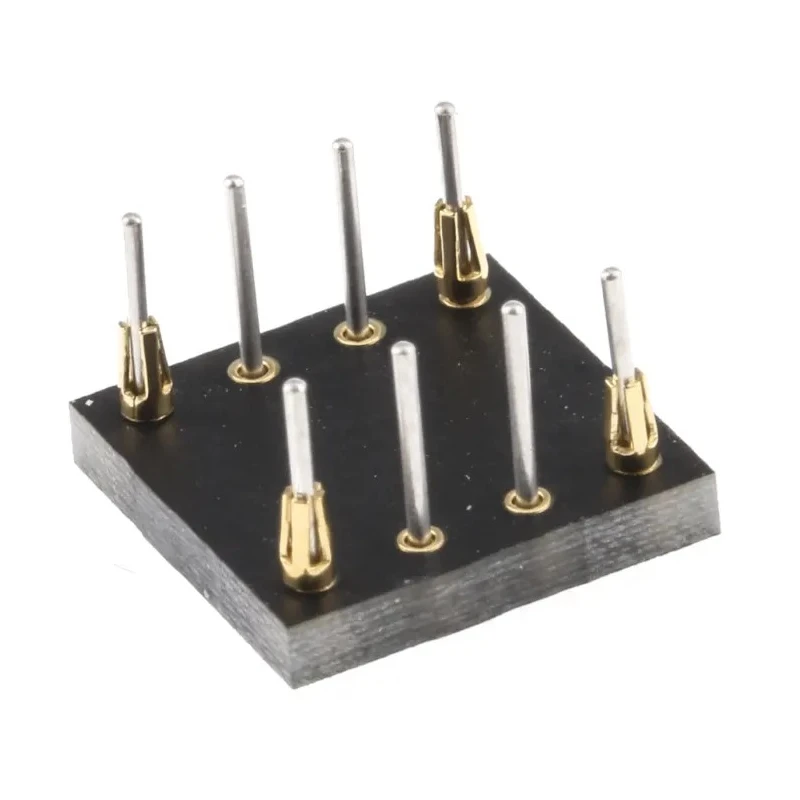

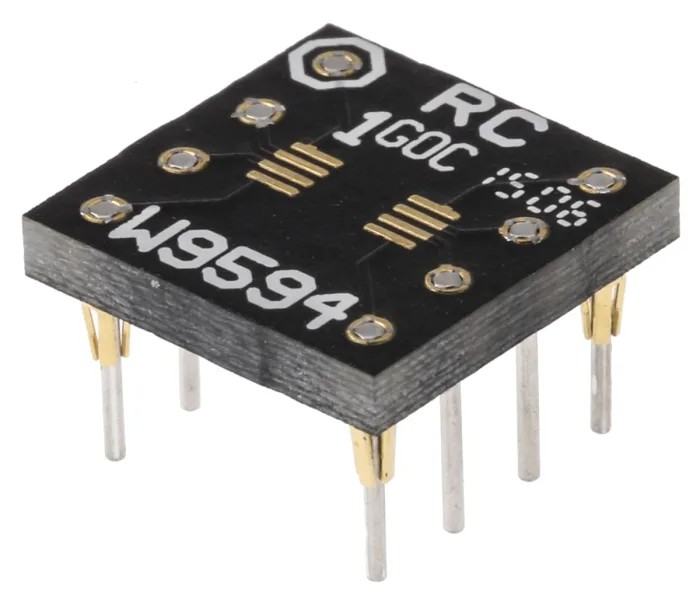

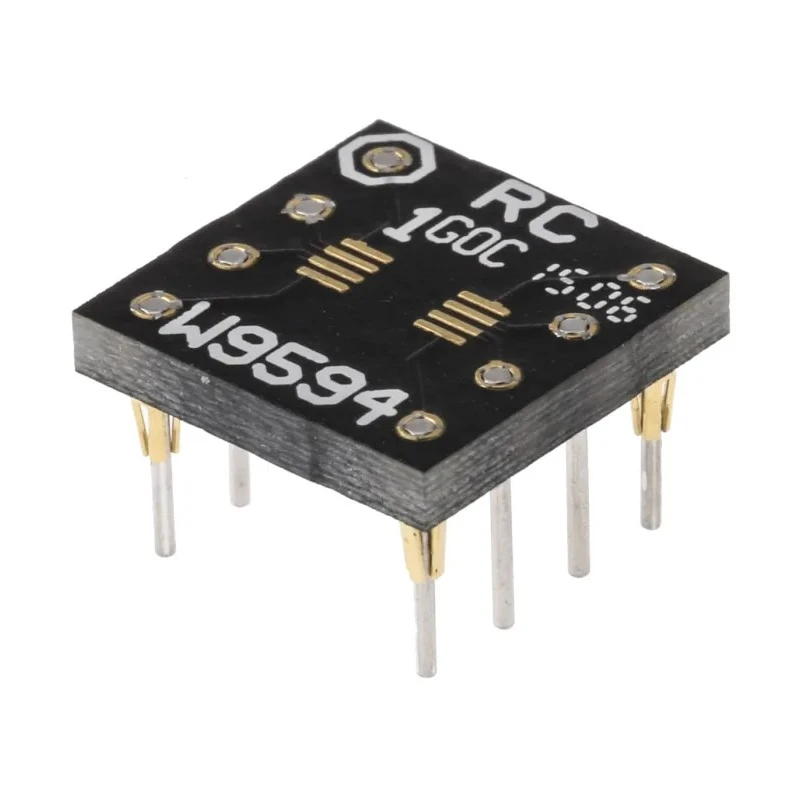

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9594RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9594RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 8 |
| Connection Gender B | Male |
| Connection A | SOP |
| Connection B | DIP |
Key Features
- Designed to convert various small outline packages to dual in line package format.
- Features 8 female SOP contacts and 8 male DIP contacts with 2.54 mm pitch.
- Contact plating is tin over nickel for reliable conductivity and corrosion resistance.
- Constructed with brass contacts and FR4 housing material for durability and insulation.
- Through hole mounting type with straight orientation suitable for PCB integration.
- Manufactured in the United Kingdom ensuring strict quality standards.
- Ideal for prototyping, development, and manufacturing to reduce redesign costs.
- Meets industrial quality standards without formal approvals.
Product Description
Winslow W9594RC is a durable straight through hole mount IC socket adapter designed for SOP to DIP package conversion with a 2.54 mm pitch. This adapter facilitates easy integration of small outline integrated circuit packages into dual in line package (DIP) style printed circuit boards without the need for redesign.
The product features 8 contacts on both SOP (female) and DIP (male) sides, providing secure and effective connectivity. The contacts are crafted from brass and plated with tin over nickel to ensure longevity, enhanced corrosion resistance, and stable electrical performance.
The housing material is a high quality FR4, offering excellent electrical insulation and mechanical stability during soldering and operation. The adapter supports through hole mounting with a straight orientation, allowing robust mechanical and electrical interface for professional electronics assembly.
This IC socket adapter is widely used in electronics development, prototyping, and manufacturing environments where adaptation between varying IC package formats is needed. It allows designers and engineers to reduce development costs by reusing existing PCB designs with alternative IC packages.
The adapter does not carry formal approvals but meets rigorous industrial standards to ensure reliable performance. Manufacturing origin is the United Kingdom, known for maintaining strict quality control in electronic components.
Designed to convert multiple small outline IC packages to DIP format effectively. Includes 8 female SOP contacts and 8 male DIP contacts with 2.54 mm pitch spacing. Contact plating uses tin over nickel for improved conductivity and corrosion resistance.
Brass contact material combined with FR4 housing provides durability and insulation. Through hole, straight mount type suits standard PCB assembly methods. Ideal for use in electronics prototyping, manufacturing, and development applications.
For browsing more related components and accessories, explore our IC Socket Adapter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this IC socket adapter have a pitch of 2.54 mm.
This model supports a female SOP connection on one side and a male DIP connection on the other side, featuring 8 contacts for each.
It features a through hole mounting type, which is suitable for standard PCB assembly methods.
The contacts are made from brass and are plated with tin over nickel, while the housing is constructed from FR4 material.
The Winslow W9594RC has a straight orientation, which is designed for easy integration into PCBs.
It is manufactured in the United Kingdom, ensuring adherence to strict quality standards.
This model features a total of 16 contacts, with 8 female contacts for SOP and 8 male contacts for DIP.
It is designed to convert various small outline packages to dual in line package format, facilitating integration without redesign.
The adapter does not carry formal approvals but meets rigorous industrial standards for performance.
This model is ideal for use in electronics prototyping, development, and manufacturing environments.
The contact plating consists of tin over nickel, which enhances conductivity and corrosion resistance.
The housing material is FR4, which provides excellent electrical insulation and mechanical stability.
