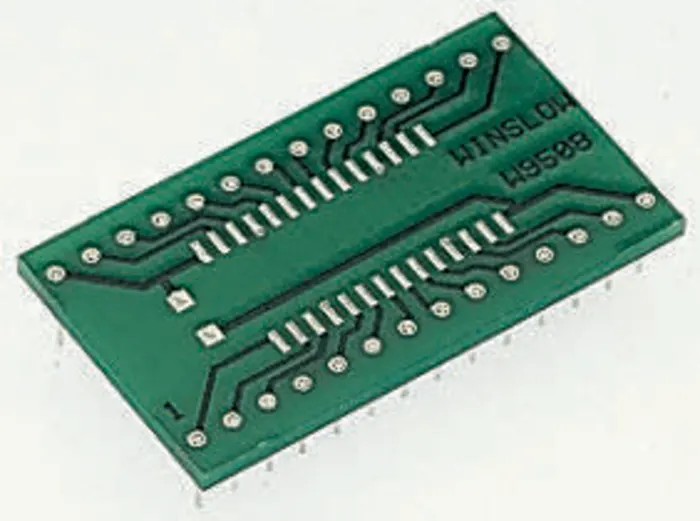

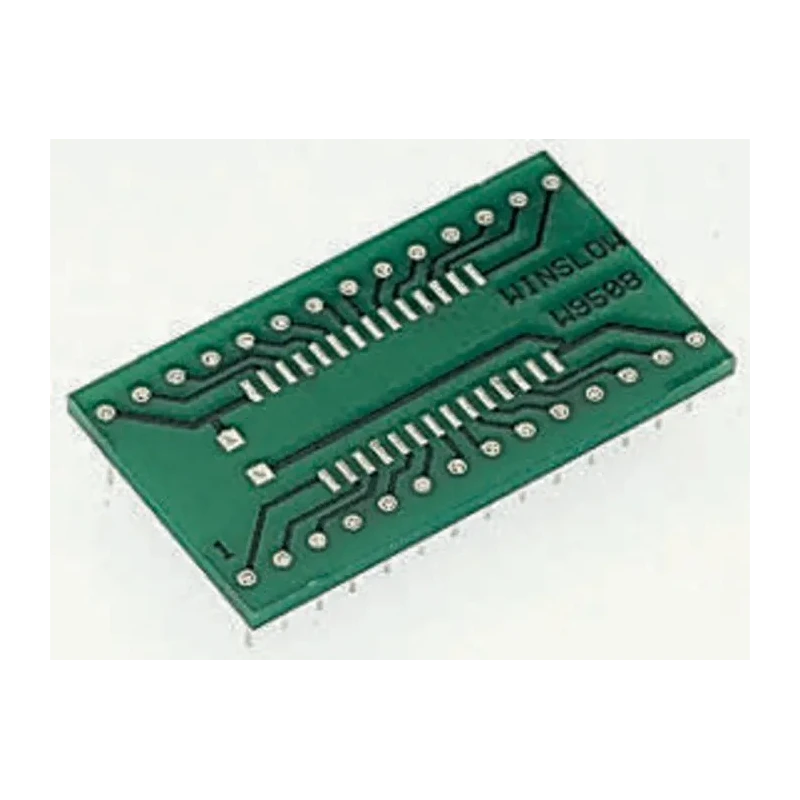

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9521RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9521RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 44 |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | SOP |
| Connection B | DIP |
Key Features
- This adapter connects SOP type ICs with 44 female contacts to DIP format with 44 male contacts.
- Constructed with brass contact material featuring tin over nickel plating to ensure durability.
- Mount type is through hole with a straight orientation, enhancing ease of PCB integration.
- The housing is made of durable FR4 epoxy fibreglass material for reliable insulation and stability.
- Designed and manufactured in the United Kingdom, ensuring quality standards.
- Ideal for electronics development, prototyping, and testing applications.
- Compatible with PCB designs requiring 2.54 mm pitch spacing.
Product Description

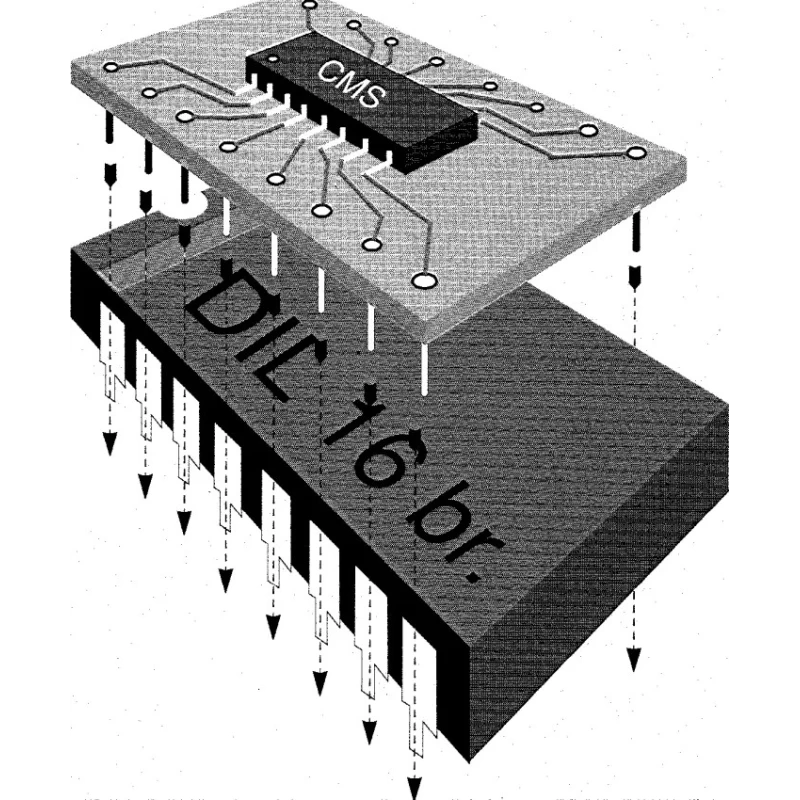

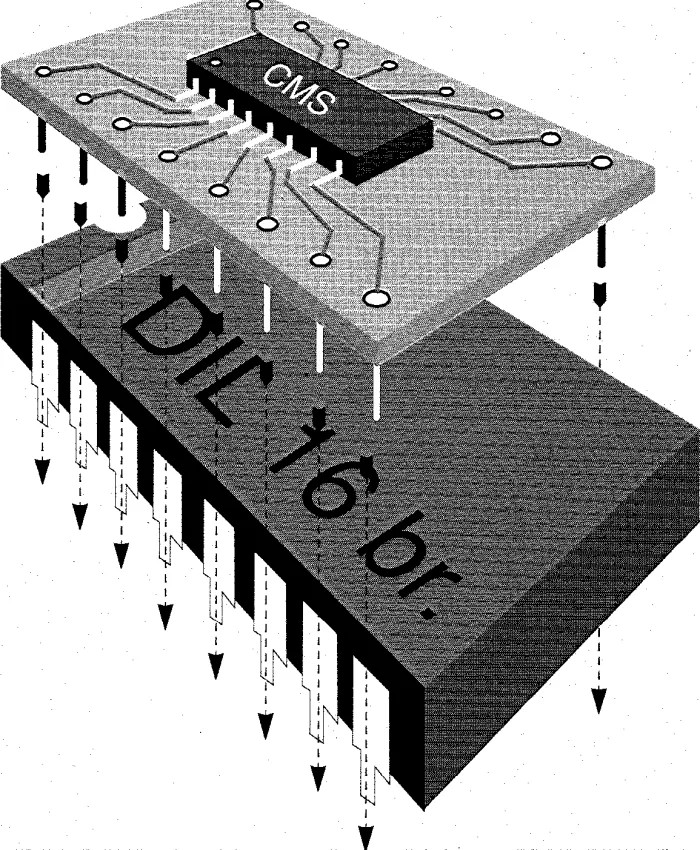

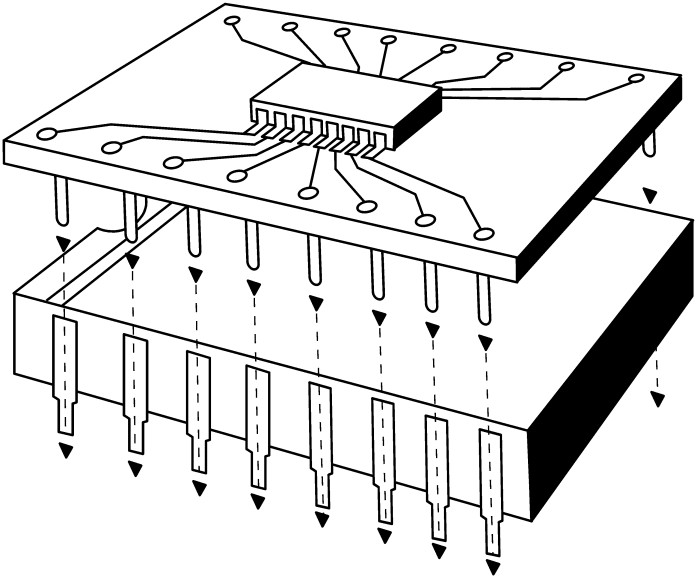

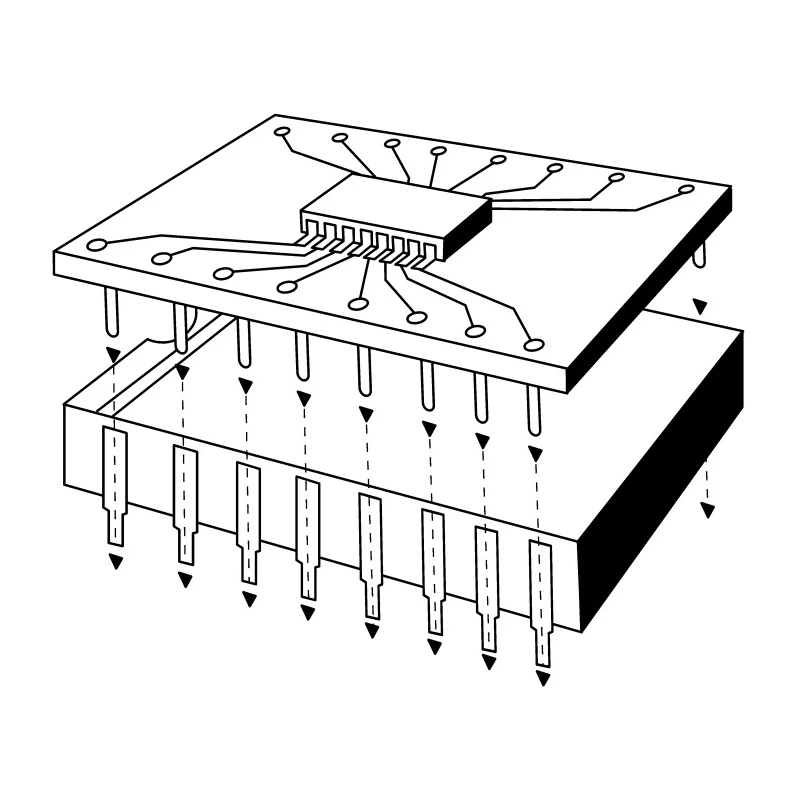

Winslow W9521RC IC Socket Adapter is engineered to convert Small Outline ICs (SOIC) to a dual in line package (DIP) format with a standard 2.54 mm pitch. This through hole mounted adapter supports 44 contact points on each side, connecting female SOP contacts to male DIP contacts with precision and reliability.
The contact material is brass, plated with tin over nickel, offering robust electrical connectivity and resistance to corrosion. Its housing is composed of high-quality FR4 epoxy fibreglass, providing excellent mechanical strength and circuit board compatibility.
This adapter is straight orientation type, enabling seamless and secure integration into circuit boards designed for through hole components with dual in line packaging requirements.
Manufactured in the United Kingdom, the W9521RC model embodies stringent quality controls, suitable for a wide range of electronic component applications including prototyping, repair, testing, and bespoke PCB circuit designs.
The product's design helps reduce development costs by allowing interchangeability between SOIC and DIP packages without redesigning PCBs, promoting efficiency in electronics manufacturing and R&D.
This adapter connects SOP type ICs with 44 female contacts to DIP format with 44 male contacts. Constructed with brass contact material featuring tin over nickel plating to ensure durability. Mount type is through hole with a straight orientation, enhancing ease of PCB integration.
The housing is made of durable FR4 epoxy fibreglass material for reliable insulation and stability. Designed and manufactured in the United Kingdom, ensuring quality standards. Ideal for electronics development, prototyping, and testing applications.
Compatible with PCB designs requiring 2.54 mm pitch spacing. Explore more IC Socket Adapters and connectors in the Electronics & Electricals category at EnvMart, your partner for reliable industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this adapter is 2.54 mm, designed for compatibility with PCB designs requiring this spacing.
This model supports 44 female contacts on the SOP side and 44 male contacts on the DIP side, allowing for a total of 88 contacts.
The contacts are made of brass and are plated with tin over nickel, while the housing is constructed from FR4 epoxy fibreglass.
The mounting type is through hole, which facilitates easy integration into circuit boards designed for through hole components.
This adapter features a straight orientation, enhancing ease of PCB integration.
It is designed and manufactured in the United Kingdom, ensuring adherence to quality standards.
This model connects SOP type ICs with female contacts to DIP format with male contacts.
It is ideal for electronics development, prototyping, testing applications, and bespoke PCB circuit designs.
The tin over nickel plating provides robust electrical connectivity and resistance to corrosion, enhancing the performance of the adapter.
The FR4 epoxy fibreglass housing provides excellent mechanical strength and reliable insulation, ensuring stability during operation.
Yes, it is designed to assist in reducing development time without the need to redesign PCBs, making it suitable for custom applications.
