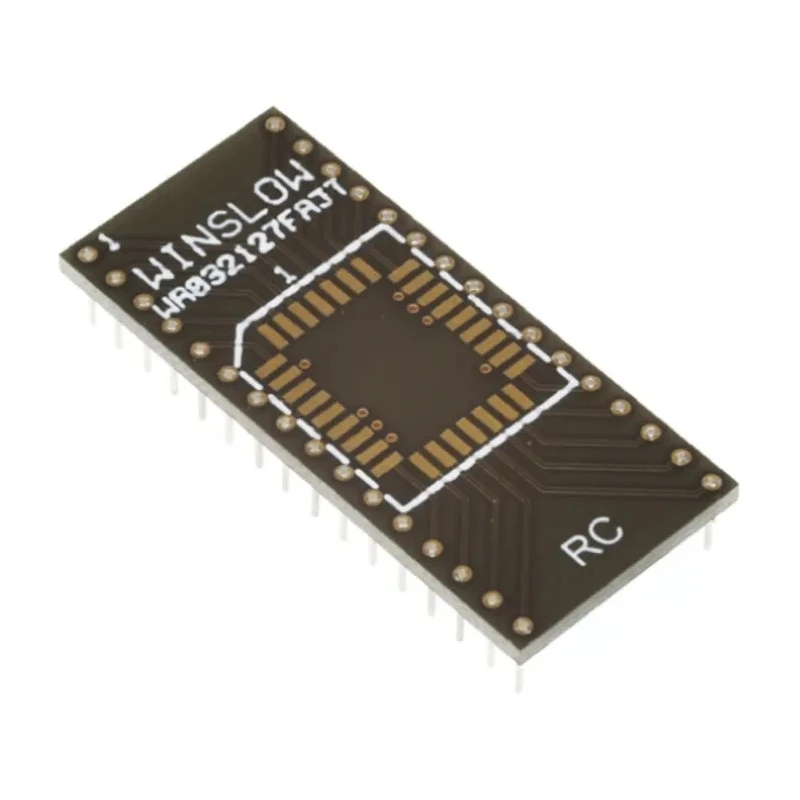

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter PLCC to DIP WA032127FAJTRC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | WA032127FAJTRC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 32 |
| Connection Gender B | Male |
| Connection A | PLCC |
| Connection B | DIP |
Key Features
- The adapter features 32 female PLCC connections and 32 male DIP connections.
- Contact plating is tin over nickel to ensure reliable conductivity.
- Constructed from brass contacts and a FR4 housing material for durability.
- Through hole mount type with a straight orientation simplifies PCB integration.
- This adapter reduces development costs by allowing package style conversion without redesigning boards.
- Manufactured in the United Kingdom with a focus on quality and performance.
Product Description
Winslow WA032127FAJTRC Straight Through Hole Mount IC Socket Adapter is designed to convert PLCC pads to DIP pins, featuring a 2.54 mm pitch suitable for numerous electronic applications.
This adapter includes 32 female PLCC connections on one side and 32 male DIP contacts on the other, enabling seamless interfacing between different integrated circuit packages.
Constructed with brass contact material and plated with tin over nickel, it ensures good electrical conductivity and durability. The housing is made from high-quality FR4 material, providing structural integrity and stability.
The through hole mount type with a straight orientation allows easy installation on printed circuit boards via standard through-hole soldering techniques.
Ideal for electronic design, prototyping, and manufacturing environments where adaptation between package formats is needed, it helps reduce development costs by eliminating the need to redesign circuit boards when changing IC package types.
Manufactured in the United Kingdom, the product adheres to quality standards characteristic of Winslow's electronic components range. The adapter features 32 female PLCC connections and 32 male DIP connections. Contact plating uses tin over nickel for corrosion resistance.
Mount type is through hole with a straight orientation. Contact material is brass and housing material is FR4. 2.54 mm pitch spacing ensures compatibility with standard DIP sockets. Supports efficient package format conversion, streamlining design cycles.
This IC socket adapter is suitable for use in electronics manufacturing, repair, testing, and development laboratories. Explore more IC Socket Adapters and related electronic components through EnvMart's comprehensive catalog for reliable sourcing and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this adapter is 2.54 mm, suitable for standard DIP sockets.
It features a total of 64 contacts, with 32 female PLCC connections and 32 male DIP connections.
The contacts are made of brass, and the housing is constructed from FR4 material.
This model supports through hole mounting with a straight orientation for easy installation.
The contact plating is tin over nickel, which provides good electrical conductivity and corrosion resistance.
It is manufactured in the United Kingdom, adhering to quality standards characteristic of Winslow's electronic components range.
It facilitates connections between PLCC and DIP formats, allowing seamless interfacing between different integrated circuit packages.
Yes, it is ideal for electronic design, prototyping, and manufacturing environments where adaptation between package formats is needed.
The connections are oriented straight, which simplifies PCB integration.
It helps reduce development time when changing IC package types, streamlining design cycles.
The adapter has female connections on the PLCC side and male connections on the DIP side.
This adapter is suitable for use in electronics manufacturing, repair, testing, and development laboratories.
