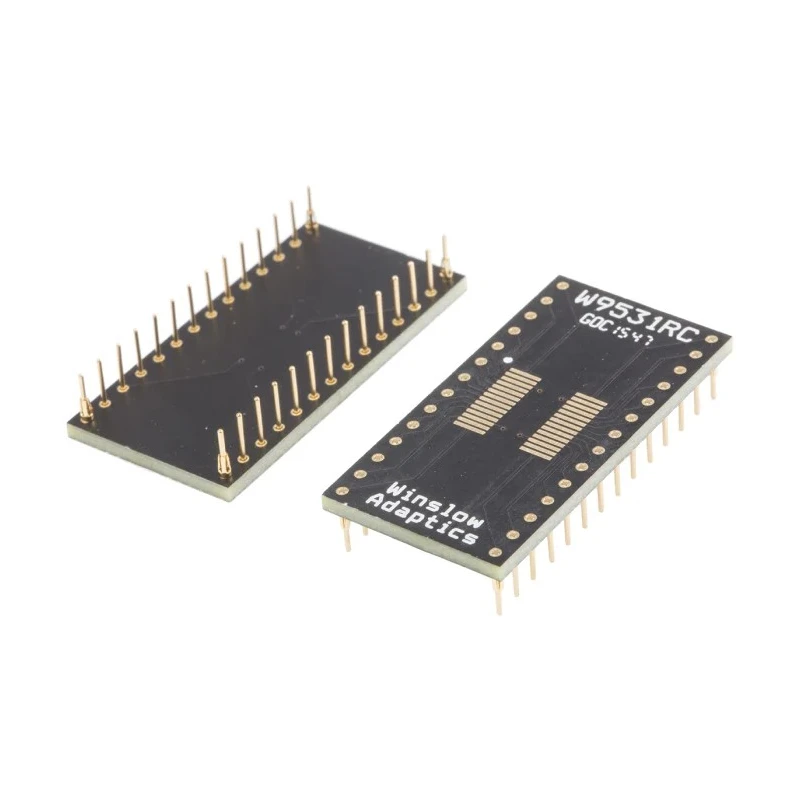

Winslow Straight Through Hole Mount 2.54 mm Pitch SSOP to DIP IC Socket Adapter W9531RC

Winslow W9531RC is a Straight Through Hole Mount IC Socket Adapter featuring a 2.54 mm pitch designed to convert SSOP packages to DIP format. This adapter enables the seamless conversion of various small outline packages including SOP, SSOP, TSOP, TSSOP, MSOP, and QSOP to dual inline package (DIP) format, aiding board compatibility and development flexibility.

The adapter includes 28 female contacts on the SSOP side and 28 male contacts on the DIP side, both constructed from brass with tin over nickel plating to provide reliable electrical conductivity and corrosion resistance. The housing is manufactured from FR4 material, ensuring mechanical strength and electrical insulation, suitable for use in demanding electronics and industrial environments.

The product is designed for through hole mounting with a straight orientation that optimizes PCB assembly processes. Its robust construction and material selection make it well-suited for professional electronics prototyping, testing setups, and small-scale manufacturing adjustments where package compatibility is necessary.

The adapter supports 28 female contacts on the SSOP side. 28 male contacts are provided on the DIP side for secure interfacing. Constructed with brass contact material plated with tin over nickel for durability. The housing is made from FR4 material ensuring reliable insulation.

Designed for through hole mounting with a straight orientation for PCB applications. Compatible with multiple small outline packages to DIP conversion. Ideal for prototyping, testing, and development environments. Manufactured in the United Kingdom with quality controls.

Provides durable and stable electrical connections without specific approvals.

This IC Socket Adapter is suitable for electronics manufacturing, laboratory electronics, industrial prototyping, and educational use where quick adaptation between package types is necessary. It facilitates development cost reductions by reusing existing PCB layouts and eases mechanical design changes without full redesigns.
