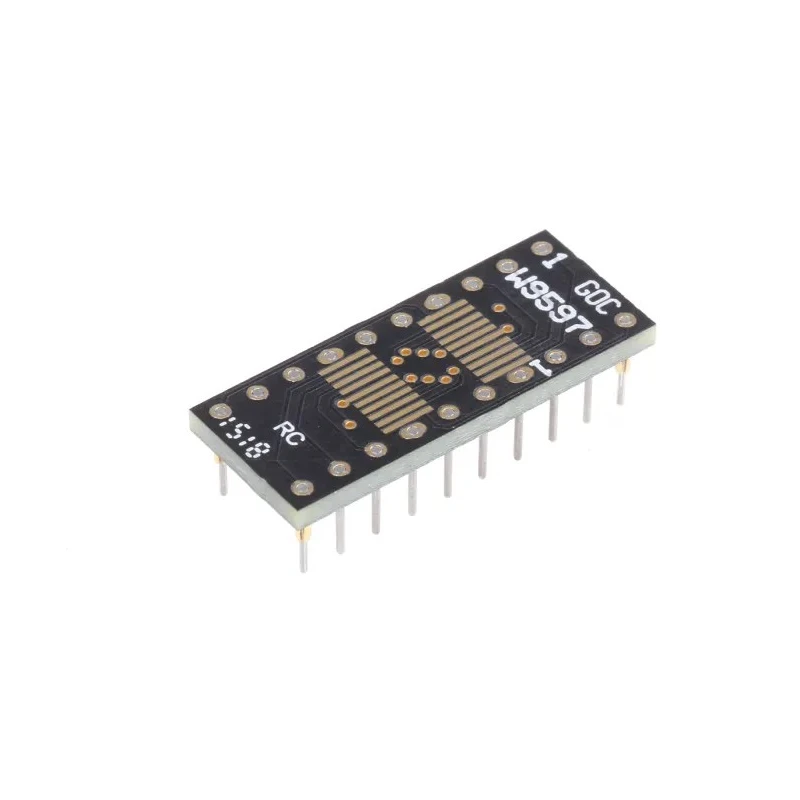

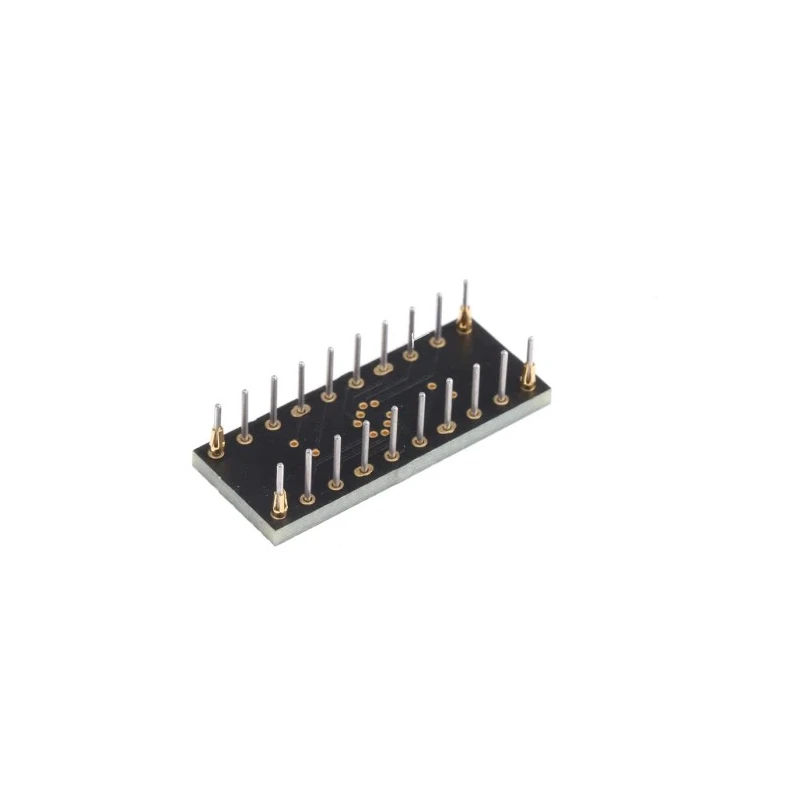

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter, SSOP to DIP W9597RC

Winslow W9597RC IC Socket Adapter is a precision-engineered component designed to facilitate the conversion of various small outline packages such as SOP, SSOP, TSOP, TSSOP, MSOP, and QSOP to the dual in-line package (DIP) format. It features a 2.54 mm pitch and a through-hole mount with a straight orientation, ensuring stable and reliable connection on printed circuit boards.

The adapter provides 20 female contacts for SSOP input and 20 male contacts for DIP output, both crafted from brass and plated with tin over nickel to guarantee excellent electrical conductivity and corrosion resistance. The housing is fabricated from high-quality FR4 material, offering enhanced mechanical strength and electrical insulation.

This IC socket adapter is manufactured in the United Kingdom, adhering to rigorous quality and performance standards, although it does not carry specific industry approvals. Its versatile design makes it ideal for use in electronics development, testing, and repair environments across industrial and laboratory settings.

Designed to reduce development costs by enabling flexible board designs without redesign when switching package types, this adapter serves as a vital component in prototype and small-scale production electronics applications.

This IC socket adapter supports 20 contacts on both SSOP and DIP sides. Features straight orientation with through-hole mounting style ensuring secure board placement. Constructed with brass contacts plated with tin over nickel for excellent conductivity and durability.

Housing made from FR4 material provides robust insulation and mechanical strength. Compatible for adapting SOP, SSOP, TSOP, TSSOP, MSOP, and QSOP packages to DIP format for flexible PCB design options. Manufactured in the United Kingdom under strict quality controls.

Suitable for industrial and laboratory electronics applications, including prototype development and repair.
