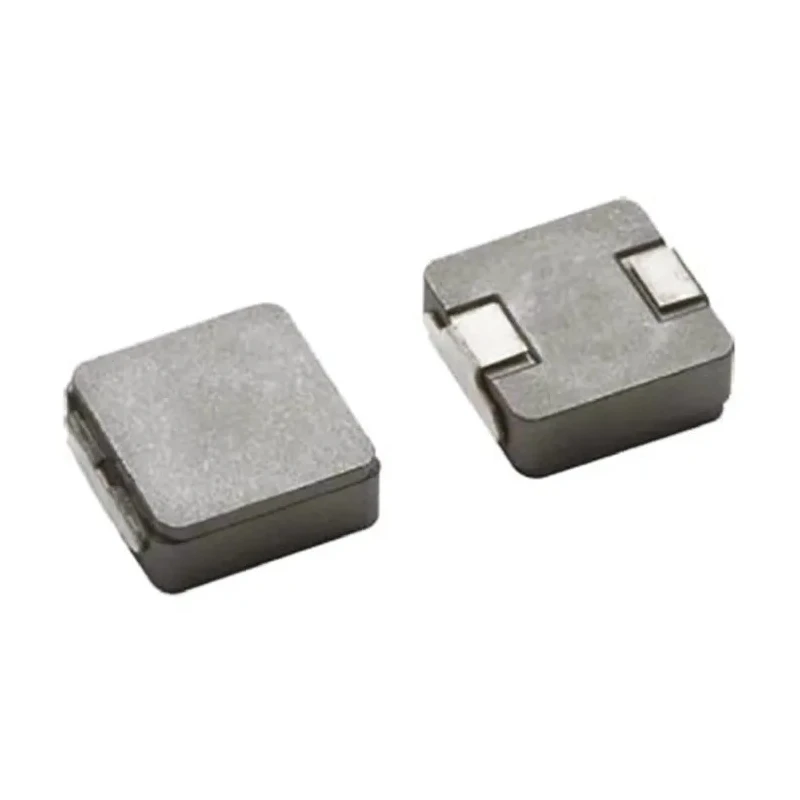

Vishay 4040 Shielded Surface Mount Inductor with Metal Composite Core 6.8 μH ±20% 8 A Idc IHLP4040DZER6R8M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 10.8mm |
| Model | IHLP4040DZER6R8M01 |
| Depth | 10.16mm |
| Series | IHLP-4040DZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS, JEDEC |
| Package/Case | 4040 |
| Maximum DC Current | 8A |
| Maximum DC Resistance | 23.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- The inductor features a low profile 4040 package case for surface mounting.
- Constructed with a metal composite core for high current handling and low buzz noise.
- Capable of operating between -55°C and 125°C temperature range.
- Maximum DC resistance is 23.3 milliohms ensuring efficient performance.
- Suitable for high-frequency applications up to 5 MHz resonance frequency.
- Offers robust shielding and wire wound choke construction for reduced electromagnetic interference.
- Designed for applications including DC/DC converters, POL converters, and battery-powered devices.
Product Description
Vishay IHLP4040DZER6R8M01 is a 4040 shielded surface mount inductor that incorporates a metal composite core, providing an inductance of 6.8 μH with ±20% tolerance and a maximum DC current rating of 8 A. This product is designed for efficient high current performance in a compact footprint.
The inductor's 4040 package dimensions are 10.8 mm length, 10.16 mm depth, and 4 mm height, making it suitable for compact power electronics assemblies. The metal composite core coupled with magnetically shielded wire wound construction minimizes buzz noise and ensures stable operation under transient current spikes.
Operating temperature ranges from -55°C to 125°C, which makes it reliable for automotive and industrial environments. With a maximum DC resistance of 23.3 mΩ, the inductor maintains low power losses and high efficiency in power supply circuits.
This series supports frequencies up to 5 MHz self-resonant frequency, appropriate for demanding applications like PDAs, notebooks, servers, and FPGA power supplies. Its molded construction and surface mount termination style ease assembly into automated PCB manufacturing processes.
Compact 4040 package for space-saving surface mount applications. High current capability of 8 A with low DC resistance of 23.3 mΩ. Magnetically shielded design to reduce EMI and noise. Wide operating temperature range ensures suitability for harsh environments.
Typical applications include DC/DC converters, POL converters, and battery-powered electronics. Discover more Surface Mount Inductors and electronic components by browsing our comprehensive Vishay catalog on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay IHLP4040DZER6R8M01 has an inductance value of 6.8 μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 8 A, making it suitable for high current applications.
The dimensions of the 4040 package are 10.8 mm in length, 10.16 mm in depth, and 4 mm in height.
The maximum operating temperature for this model is 125°C, allowing it to function in high-temperature environments.
It is constructed with a metal composite core and features a shielded design to reduce electromagnetic interference.
The maximum self-resonant frequency of the Vishay IHLP4040DZER6R8M01 is 5 MHz, suitable for high-frequency applications.
The maximum DC resistance is 23.3 milliohms, ensuring efficient performance in power supply circuits.
This inductor features a surface mount termination style, facilitating automated assembly into PCBs.
It is suitable for applications such as DC/DC converters, POL converters, and battery-powered devices.
This model complies with RoHS and JEDEC standards, ensuring it meets specific environmental and quality requirements.
The inductor features a shielded construction, which helps minimize buzz noise and electromagnetic interference.
The Vishay IHLP4040DZER6R8M01 is manufactured in India.
