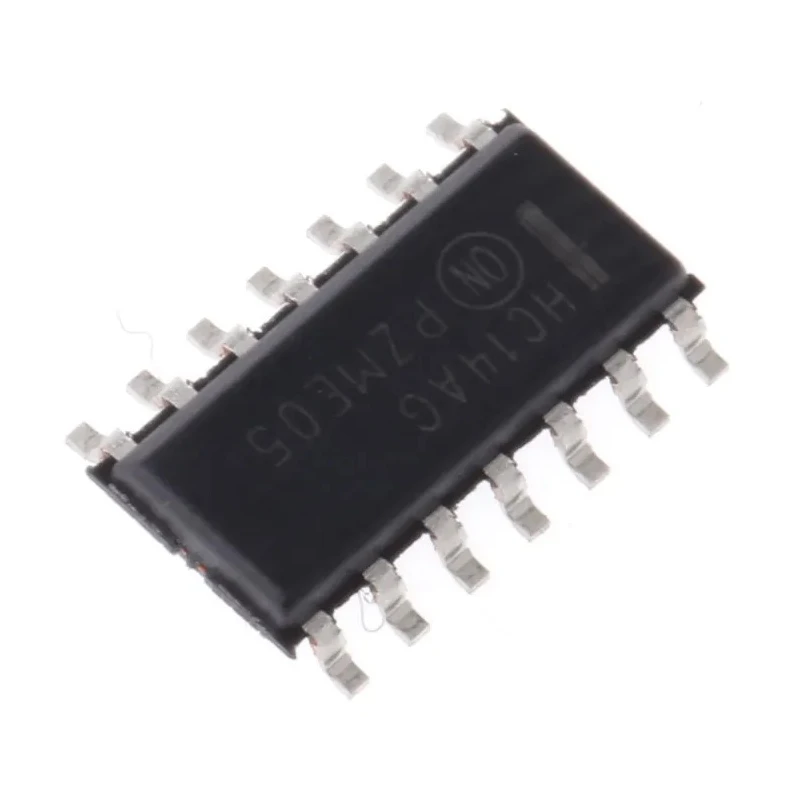

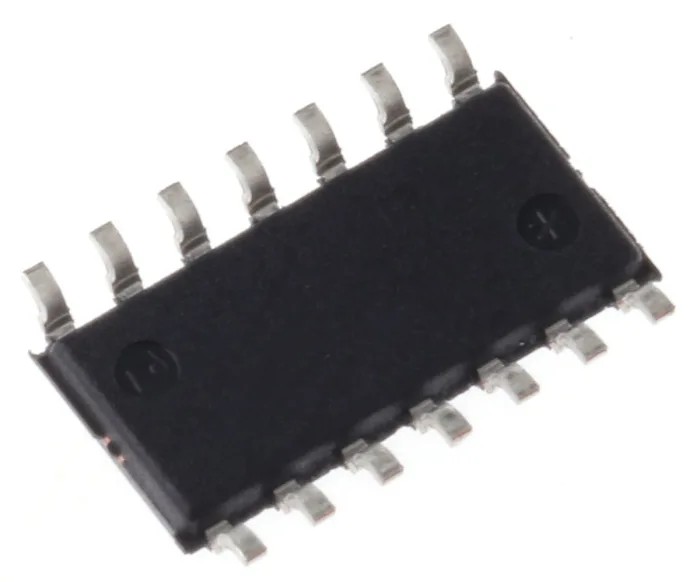

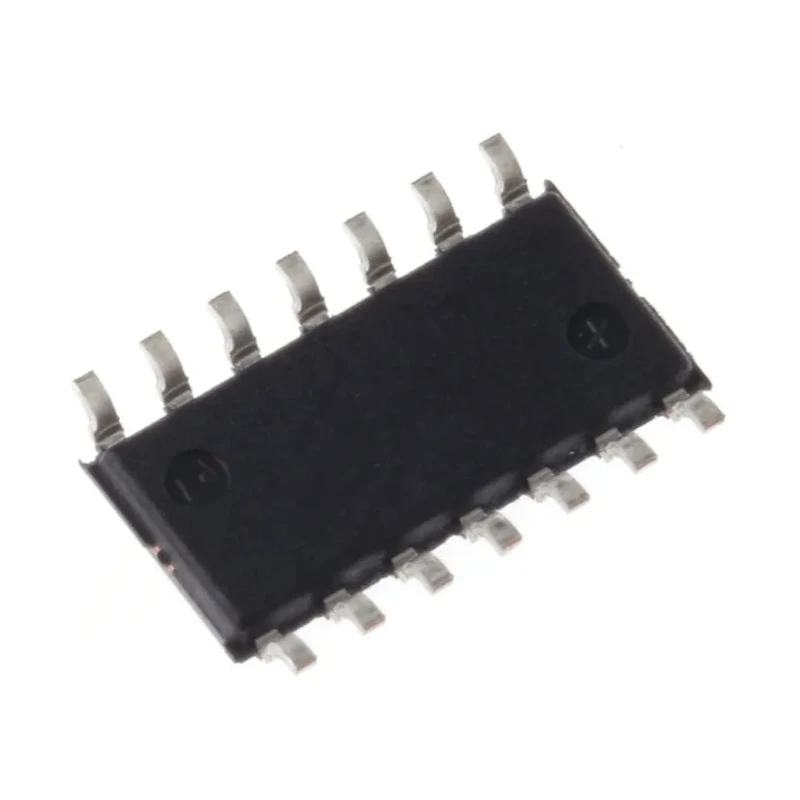

onsemi Schmitt Trigger Input Inverter MC74HC14ADR2G 6-Element, 14-Pin SOIC, 2 to 6V Operating Voltage MC74HC14ADR2G

onsemi MC74HC14ADR2G is a 6-element inverter integrated circuit with Schmitt trigger inputs packaged in a 14-pin SOIC surface mount format. Designed for CMOS logic applications, it operates over a voltage range of 2 to 6 volts, compatible with both input and output CMOS logic levels. The Schmitt trigger inputs provide noise immunity and clean signal transitions, making it ideal for digital signal conditioning.

This IC supports a maximum propagation delay time of 110 nanoseconds, suitable for high-speed switching needs in electronic circuits. It supplies a maximum output current of ±5.2 mA to interface reliably with LSTTL and TTL logic devices. The device meets automotive-grade AEC-Q100 standards, with operating temperatures spanning from -55°C to 125°C, ensuring durability in harsh environments.

The compact SOIC package measures approximately 8.75 mm in length, 4 mm in width, and 1.5 mm in height, facilitating efficient board space usage. Its surface mount design supports modern PCB assembly processes. This inverter IC finds applications in industrial and automotive electronics, signal processing, embedded systems, and various digital logic implementations.

Key features include its 74HC series high-speed CMOS technology, low power consumption, and compatibility with both input CMOS and output CMOS levels. The Schmitt trigger input capability significantly improves input signal reliability against noise.

Includes 6 inverter elements per chip with Schmitt trigger inputs for enhanced noise immunity. Broad operating voltage range of 2V to 6V suitable for various logic circuits. Surface mount package (SOIC) with 14 pins optimized for compact PCB designs.

Maximum propagation delay time of 110 ns at specified capacitive load. Maximum output current of ±5.2 mA to drive TTL compatible loads. Wide temperature range operation from -55°C to 125°C complying with AEC-Q100 automotive standards.

High-speed CMOS logic technology from 74HC family ensuring fast switching performance. Dimensions approximately 8.75 mm length, 4 mm width, and 1.5 mm height for space-efficient integration.

This product supports industrial, automotive, and commercial electronics applications requiring reliable Schmitt trigger inverter ICs. Its surface mount design and automotive qualification make it a versatile choice for embedded systems and signal conditioning tasks.
