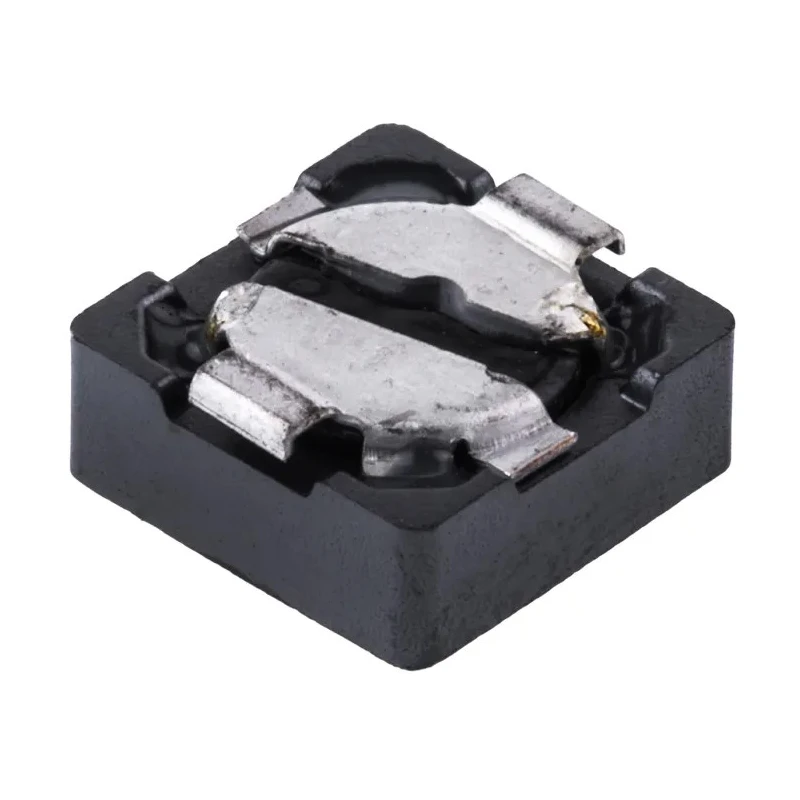

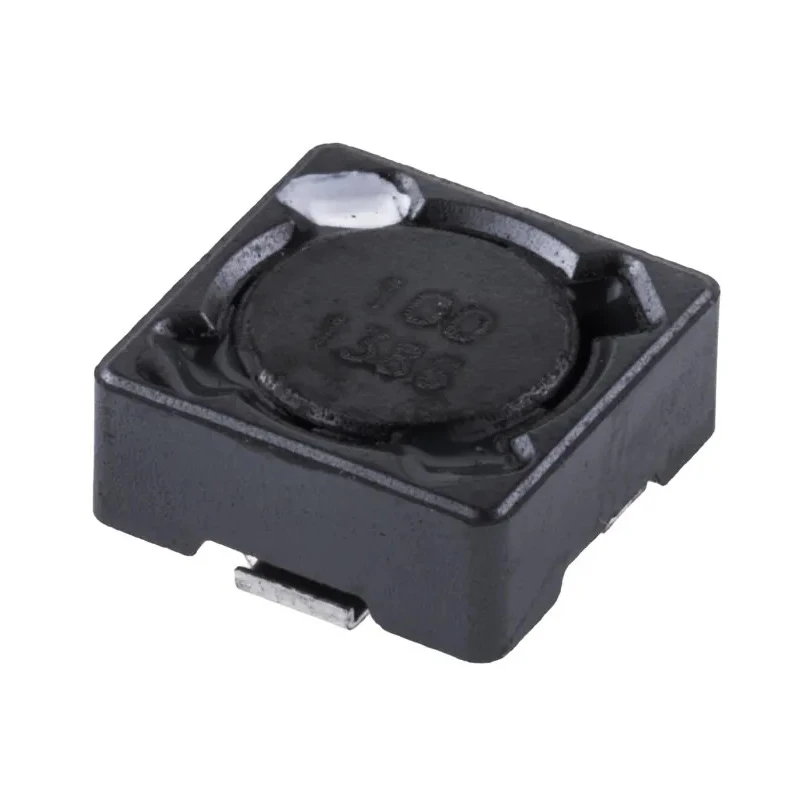

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 10μH ±20% 1.7A Idc B82472G4103M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4103M000 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded ferrite core reduces electromagnetic interference.
- Wirewound construction provides high stability and durability.
- Solder termination style suitable for surface mount assembly.
- Compact size suitable for dense PCB designs.
- Tape and reel packaging compatible with automated insertion systems.
- RoHS compliant ensuring environmental safety.
- Operates effectively between -55°C and 125°C ambient temperature.
- Maximum DC current of 1.7 A with low resistance of 80 milliohms.
Product Description
TDK B82472G4103M000 shielded wirewound surface mount inductor features a magnetically shielded ferrite core with enamel copper wire winding soldered to terminals, providing reliable inductance of 10μH with ±20% tolerance and a maximum DC current rating of 1.7 A. This inductor is designed for surface mounting with a solder termination style and comes in tape and reel packaging for easy automated PCB assembly. Its compact dimensions are 7.3 mm length, 3.3 mm height, and 7.3 mm depth, making it suitable for space-constrained electronics.
Operating reliably in a temperature range from -55°C to 125°C, the component exhibits a maximum DC resistance of 80 mΩ, ensuring energy efficiency and reduced power loss.
The magnetically shielded ferrite core design helps minimize EMI interference, enhancing overall circuit performance. Its wirewound construction ensures stability under electrical and mechanical stress. The product is lead-free with tinned terminals, supporting environmental and regulatory requirements.
Magnetically shielded ferrite core reduces electromagnetic interference. Wirewound construction provides high stability and durability. Solder termination style suitable for surface mount assembly. Compact size suitable for dense PCB designs.
Tape and reel packaging compatible with automated insertion systems. RoHS compliant ensuring environmental safety. Operates effectively between -55°C and 125°C ambient temperature. Maximum DC current of 1.7 A with low resistance of 80 milliohms.
Application readiness for automotive electronics and power filtering circuits.
This Surface Mount Inductor serves critical roles in industrial and commercial electronic manufacturing, including power management in automotive, telecommunications, and computing devices. It is engineered for precise electrical characteristics combined with durability and compliance to major industry standards.
Explore the Electronics & Electricals category at EnvMart for a wide range of TDK inductors and related components designed to meet stringent technical and quality requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 1.7 A.

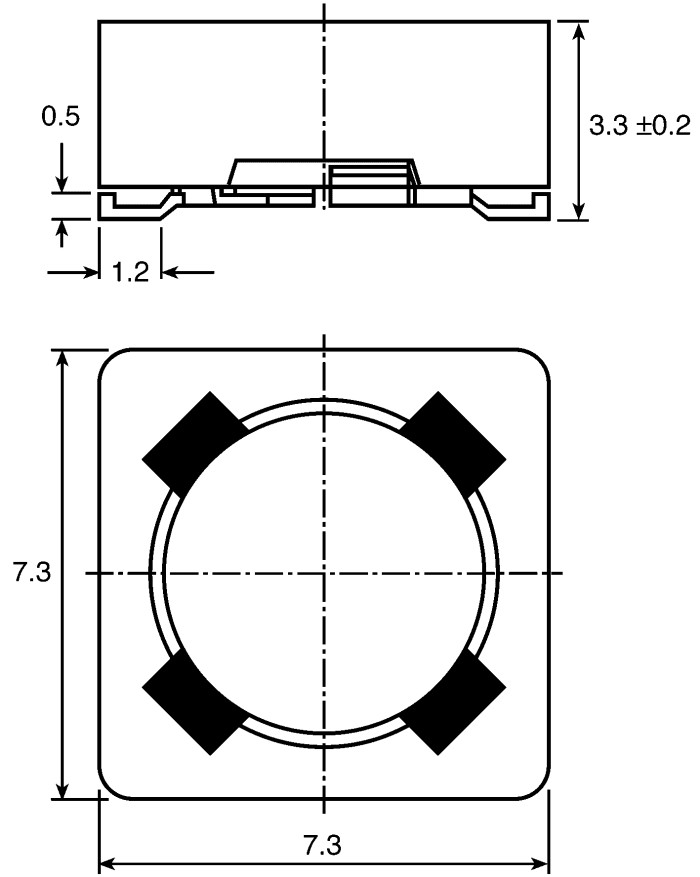

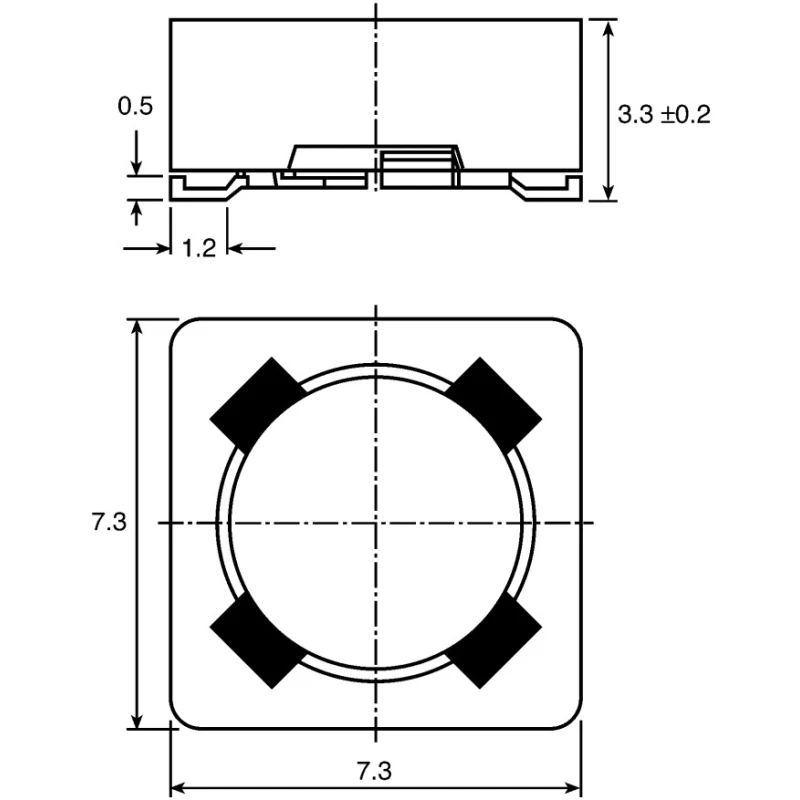

The dimensions of this unit are 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth.
It operates effectively within a temperature range of -55°C to 125°C.
This model features a wirewound construction, which provides high stability and durability.
The maximum DC resistance is 80 milliohms.
It comes in tape and reel packaging, making it compatible with automated PCB assembly systems.
The termination style is solder, suitable for surface mount assembly.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The core material of this inductor is ferrite.
It is suitable for applications in automotive electronics and power filtering circuits.
This inductor has a pin count of 2.
