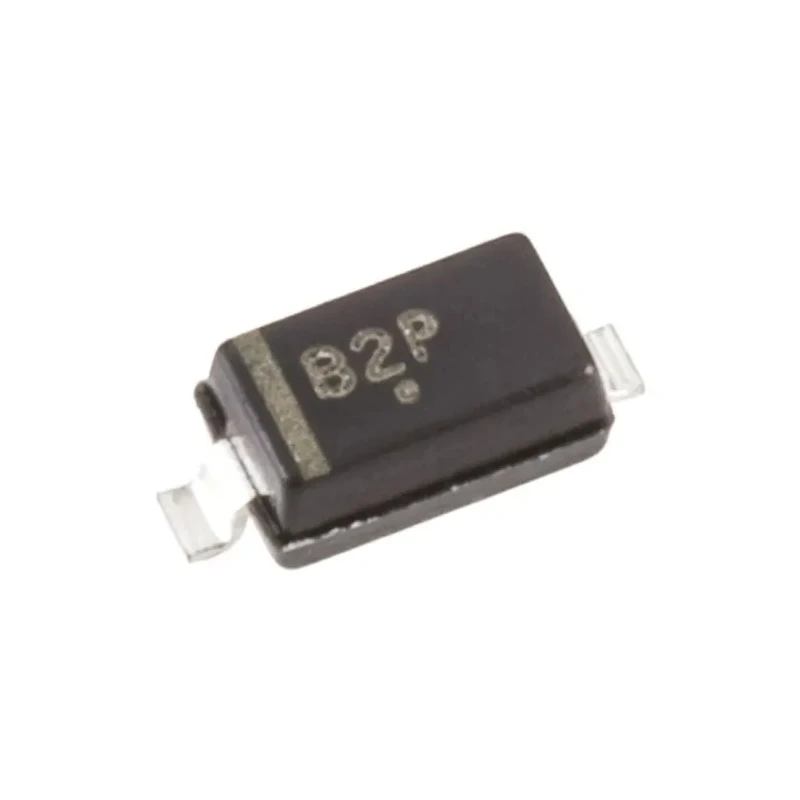

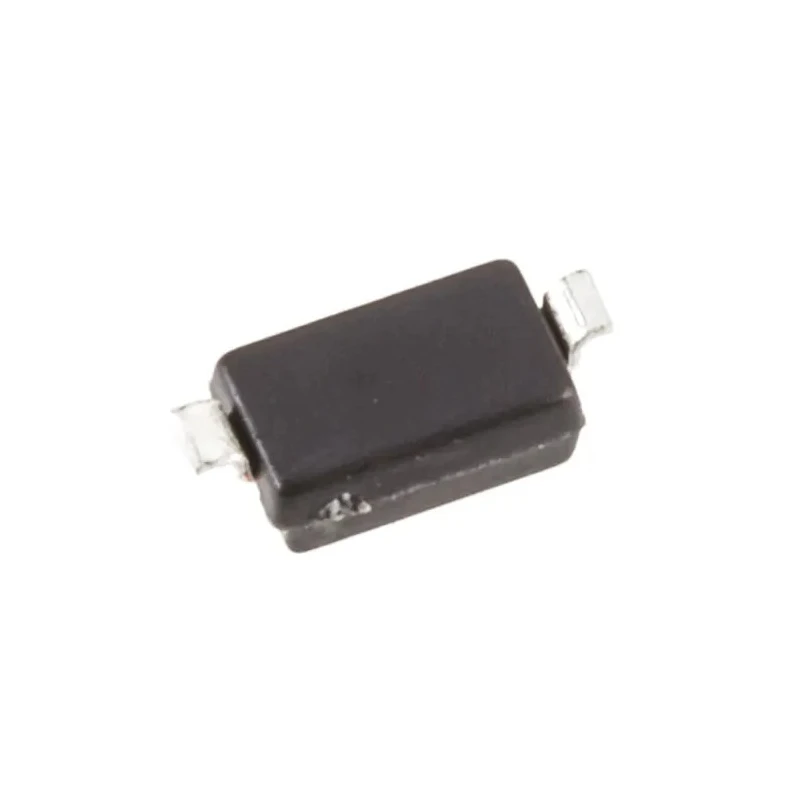

onsemi Schottky Diode 20 V 500 mA Surface Mount 2-Pin SOD-123 MBR0520LT1G

The onsemi MBR0520LT1G is a Schottky barrier rectifier diode designed to handle 500 mA continuous forward current and withstand peak reverse repetitive voltage of 20 V. Packaged in a small 2-Pin SOD-123 surface mount plastic case, this diode is optimal for compact electronic assemblies requiring efficient low voltage, high frequency rectification.

This device features a stress protection guard ring and a cathode band for easy polarity identification. Its low forward voltage drop (typically 385 mV) and minimal peak reverse current (250 µA) maximize efficiency while minimizing power loss and heat generation.

The diode supports a wide operating temperature range from -65°C to 125°C, making it suitable for automotive and industrial environments with demanding temperature conditions. The plastic SOD-123 package offers corrosion resistance and is compatible with automated assembly processes.

With a peak non-repetitive forward surge current of 5.5 A, it can handle transient current spikes common in power supply circuits. The diode conforms to AEC-Q101 automotive standard, ensuring reliability in automotive electronics.

Applications include low voltage power rectification, power management in consumer electronics, industrial control systems, and automotive electronics where efficient switching and fast response times are critical.

Low forward voltage drop reduces power dissipation. Suitable for automated board assembly in compact electronics. Corrosion resistant external surfaces extend service life. Wide temperature operation ensures durability under harsh conditions.

Surge current capability supports transient loads effectively. AEC-Q101 compliance assures automotive-grade quality. Compact 2-Pin SOD-123 surface mount package for space-saving designs. Reliable operation in high frequency rectification applications.

Low leakage current enhances efficiency in power systems.

This onsemi MBR0520LT1G Schottky diode is a dependable component for engineers designing robust and efficient power rectification circuits in industrial, automotive, and commercial electronic devices. Explore more semiconductor components in the Schottky Diode category at EnvMart for comprehensive solutions.
