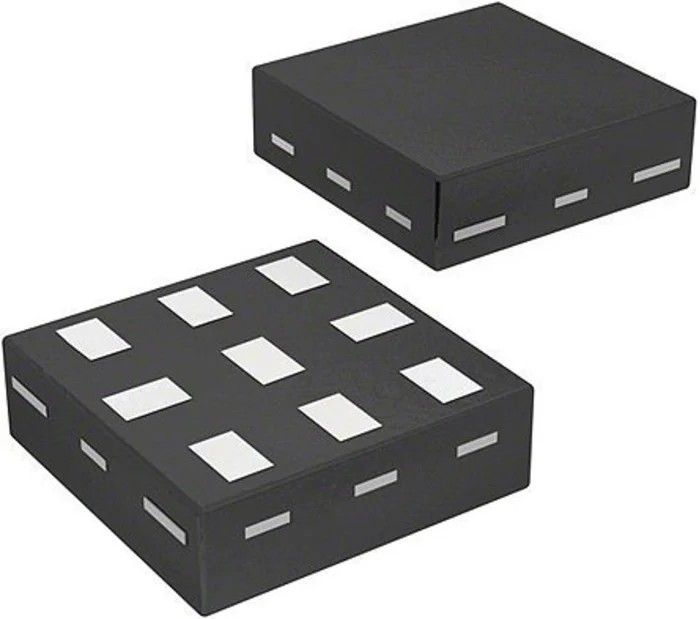

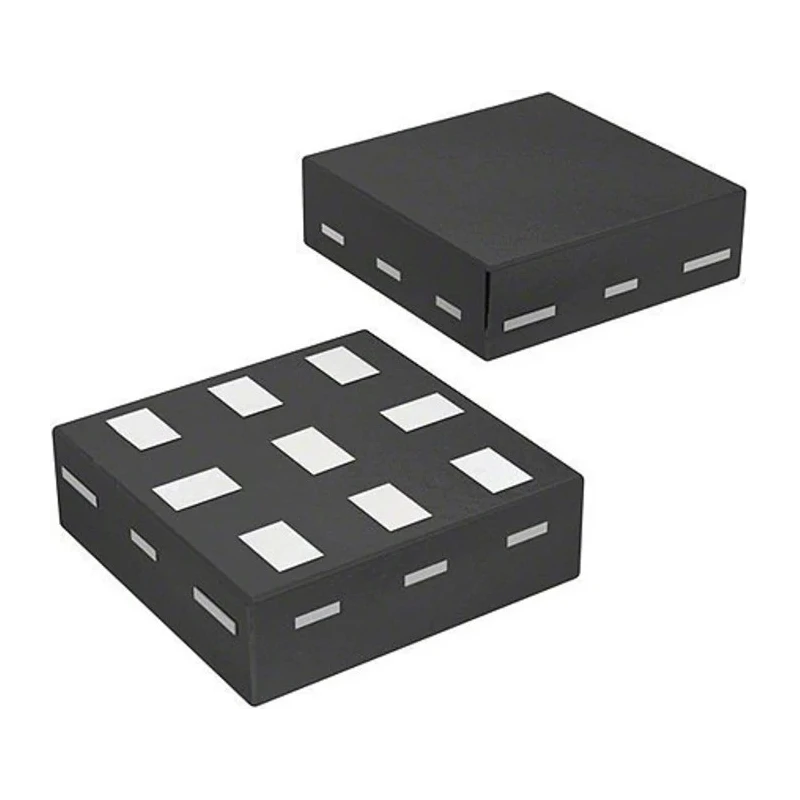

DiodesZetex Audio Amplifier IC, 9-Pin Surface Mount, 3W Class D Output, UFLGA Package PAM8013AKR
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.55mm |
| Length | 1.45mm |
| Model | PAM8013AKR |
| Width | 1.45mm |
| Output Power | 3W |
| Mount Type | Surface |
| Series | PAM8013 |
| Maximum Operating Temperature | 85°C |
| Package Type | UFLGA |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Pin Count | 9 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.8V |
| Amplifier Type | Audio |
| Amplifier Class | Class D |
Key Features
- Measures 1.45mm length, 1.45mm width, and 0.55mm height for compact PCB designs.
- Operates within a voltage range of 2.8V to 5.5V suitable for diverse audio applications.
- Designed for single channel audio amplification with efficient Class D technology.
- Offers operation from -25°C to a maximum of 85°C to ensure reliability under varying conditions.
- Ideal for speaker amplification in automotive and consumer electronics.
- Package type UFLGA ensures easy surface mounting and integration.
- Manufactured in China with robust quality standards.
Product Description
DiodesZetex PAM8013AKR is a specialized Audio Amplifier IC designed for high efficiency and compact applications. It features a 3W audio output power in a small 9-pin UFLGA surface mount package, enabling efficient integration into modern audio devices. The amplifier operates under Class D technology, ensuring low power consumption and minimal heat generation.
This device supports a supply voltage range from 2.8V to 5.5V and functions reliably across a wide temperature range from -25°C to 85°C. Its compact dimensions of 1.45mm length, 1.45mm width, and 0.55mm height make it suitable for space-constrained PCB layouts.
The PAM8013AKR is designed primarily for single channel audio amplification, ideal for driving small speakers in consumer and automotive electronics. Its surface mount package (UFLGA) facilitates automated assembly, enhancing production efficiency for manufacturers.
Produced by DiodesZetex, this IC complies with no specific approvals or automotive standards but is a dependable component optimized for various audio amplification tasks. It is manufactured in China.
Measures 1.45mm length, 1.45mm width, and 0.55mm height for compact PCB designs. Operates within a voltage range of 2.8V to 5.5V suitable for diverse audio applications. Designed for single channel audio amplification with efficient Class D technology.
Offers operation from -25°C to a maximum of 85°C to ensure reliability under varying conditions. Ideal for speaker amplification in automotive and consumer electronics. Package type UFLGA ensures easy surface mounting and integration.
Manufactured in China with robust quality standards.
This product is suitable for use in industrial, automotive, consumer electronic, and manufacturing applications that require efficient audio amplification within compact form factors. Browse EnvMart’s comprehensive collection of semiconductor Audio Amplifier ICs to find compatible and complementary components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAM8013AKR provides an output power of 3W, suitable for driving small speakers in various applications.
It operates within a supply voltage range of 2.8V to 5.5V, making it versatile for different audio applications.
This audio amplifier IC measures 1.45mm in length, 1.45mm in width, and 0.55mm in height, allowing for compact PCB designs.
It is designed to operate within a temperature range of -25°C to 85°C, ensuring reliability under varying conditions.
This model is designed for single channel audio amplification, making it suitable for specific audio tasks.
It comes in a UFLGA package type, which facilitates easy surface mounting and integration into electronic devices.
The PAM8013AKR operates as a Class D amplifier, which is known for its efficiency and low power consumption.
It is ideal for speaker amplification in automotive and consumer electronics, as well as other industrial applications requiring efficient audio amplification.
This audio amplifier IC features a pin count of 9, which is standard for its compact design.
It is manufactured in China, adhering to robust quality standards.
This model supports surface mounting, making it suitable for automated assembly processes in production.
It belongs to the PAM8013 series of audio amplifier ICs, which are designed for high efficiency and compact applications.
