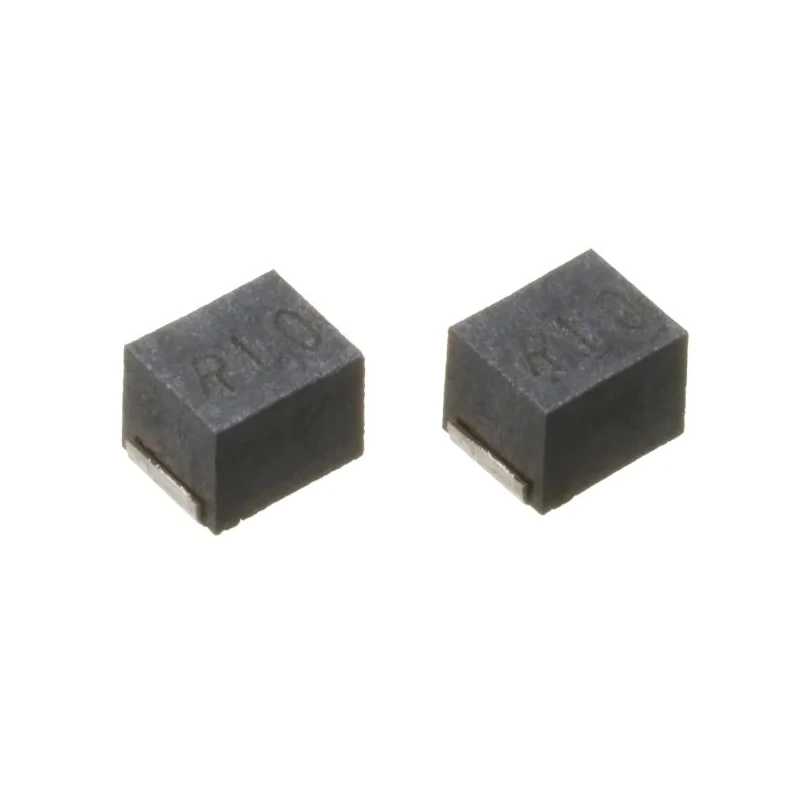

TDK Wirewound Surface Mount Inductor 3225 Case 220μH ±10% 80mA Idc Ferrite Core NLCV32T-221K-EF

TDK NLCV32T-221K-EF is a wirewound surface mount inductor designed for electronic applications requiring stable inductance and compact form factor. It features a 3225 case size with a ferrite core that supports excellent magnetic properties and reliable operation over a wide temperature range from -40°C to 105°C.

The inductor provides an inductance of 220μH with a tolerance of ±10%, suitable for power supply filtering, noise suppression, and signal conditioning in electronic devices. It supports a maximum DC current of 80mA and has a low DC resistance of 8.4Ω, ensuring minimal power loss.

The unshielded design and wirewound construction make it ideal for power line applications in automotive equipment, audio-visual systems, digital cameras, and other consumer electronics. The solder termination style enables easy surface mounting, with tape and reel packaging that facilitates automated circuit board assembly.

This inductor complies with RoHS standards and includes a molded thermoplastic resin package for durability and heat resistance. Its maximum self-resonant frequency of 7MHz and a quality factor of at least 20 ensure efficient performance in high-frequency circuits.

Compact 3225 package size facilitating space-saving PCB designs. Reliable ferrite core construction for consistent inductance. Wide operating temperature range from -40°C to 105°C. RoHS compliant for environmental safety.

Suitable for diverse applications including automotive and consumer electronics.

This TDK wirewound surface mount inductor is a critical component for industrial, manufacturing, automotive, and electronic assembly environments, offering trustworthy inductive properties and easy integration in SMT production lines.
