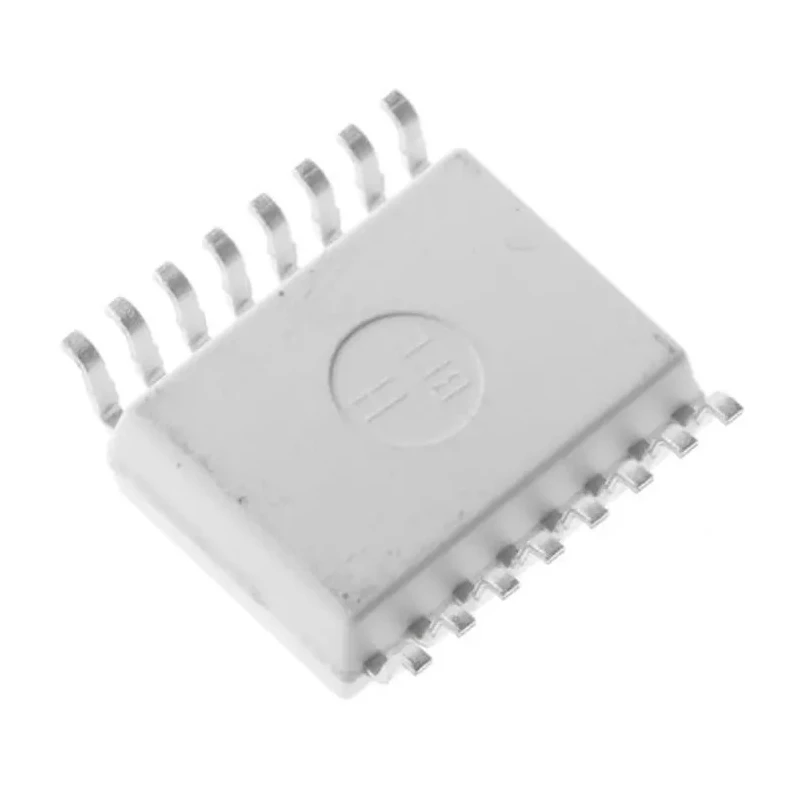

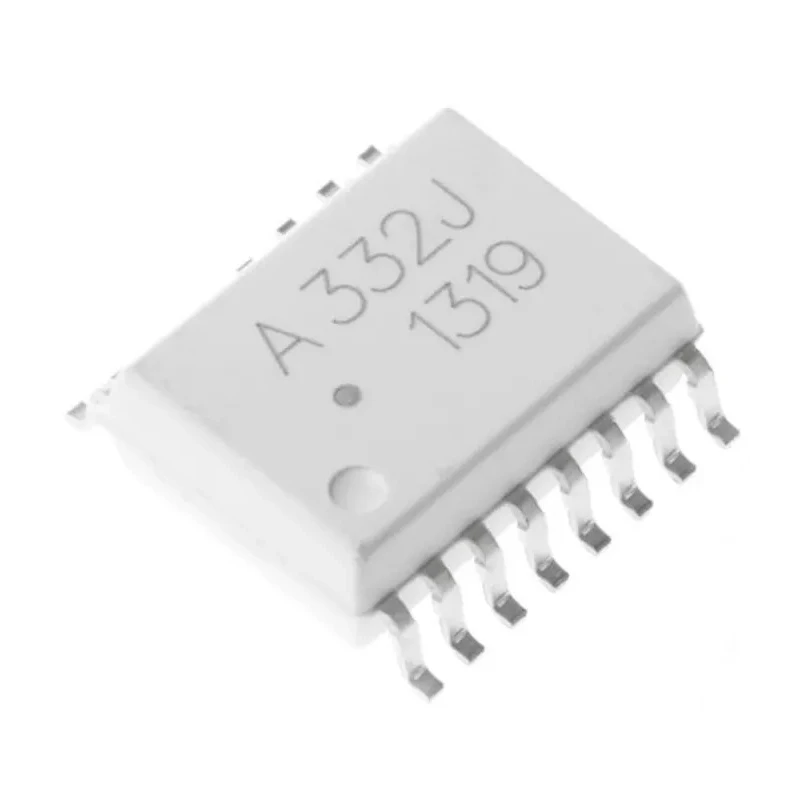

Broadcom Isolated Gate Driver Optocoupler Surface Mount 16-Pin SOIC ACPL-32JT-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-32JT-000E |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 16mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, CSA |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 16 |
| Typical Rise Time | 70ns |
| Typical Fall Time | 35ns |
Key Features
- Optimized for driving IGBT and Power MOSFET transistors efficiently.
- Provides rail-to-rail output with fast gate switching speed.
- High common mode rejection and reinforced insulation ensure durability.
- Operates reliably in temperature range from -40°C to 125°C.
- Supports isolation voltage up to 5000 Vrms for safety in high voltage environments.
- Typical rise time of 70 ns and fall time of 35 ns enable high-speed switching.
- Maximum input forward voltage of 1.85 V and input current of 16 mA.
- Meets IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, and CSA standards.
Product Description
Broadcom ACPL-32JT-000E is a surface mount optocoupler designed as an isolated gate driver for IGBT and Power MOSFET devices. Featuring a 16-pin SOIC package, it provides robust electrical isolation with 5000 Vrms insulation voltage and reinforcements suitable for demanding industrial environments.
Its fast switching characteristics - 70 ns rise time and 35 ns fall time - enable efficient power management in sensitive electronic circuits. The device is rated to operate reliably across a wide temperature range from -40°C to 125°C, suitable for automotive and industrial applications.
Compliant with IEC/EN/DIN EN 60747-5-5 standards and certified for safety by UL 1577 and CSA, this optocoupler ensures high performance with reinforced insulation and logic output capability. The maximum forward input voltage is 1.85 V, with a maximum input current of 16 mA.
This product is ideal for applications requiring isolation of logic control signals from high voltages, such as motor control, power conversion, and other industrial automation systems.
Optimized for driving IGBT and Power MOSFET transistors efficiently. Rail-to-rail output with fast gate switching speed for precise control. High common mode rejection for robust noise immunity. Reinforced insulation rated at 5000 Vrms.
Continuous operation in extreme temperatures from -40°C to 125°C. Typical rise and fall times of 70 ns and 35 ns enable high-speed switching. Input forward voltage max 1.85 V with max input current 16 mA. Certified to meet IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, CSA standards.
Ideal for motor control and power conversion industry applications. Explore more components in the Optocouplers category on EnvMart for reliable electronics solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
It supports an isolation voltage of up to 5000 Vrms, ensuring safety in high voltage environments.
The typical rise time is 70 ns and the fall time is 35 ns, enabling high-speed switching.
The maximum input forward voltage is 1.85 V, with a maximum input current of 16 mA.
This model comes in a 16-pin SOIC package, suitable for surface mounting.
It meets IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, and CSA standards.
It operates reliably in a temperature range from -40°C to 125°C.
This optocoupler has 1 channel.
The mounting type for this model is surface mount.
It belongs to the ACPL series.
It features high common mode rejection for robust noise immunity.
