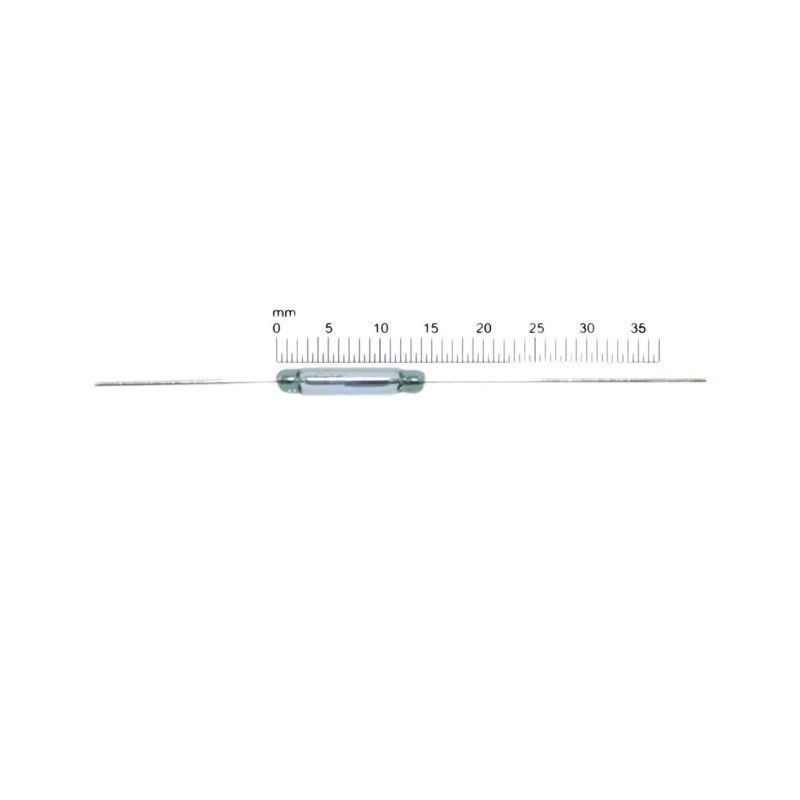

Assemtech Single Pole Single Throw Normally Open PCB Reed Switch 500mA 200V RI-23B

Free Delivery in India | Lowest Global Shipping Charges

Assemtech Single Pole Single Throw Normally Open PCB Reed Switch 500mA 200V RI-23B

Name: Assemtech Single Pole Single Throw Normally Open PCB Reed Switch 500mA 200V RI-23B
Brand: Assemtech
SKU: 387434
Price: 118.9 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	14.5mm
Model	RI-23B
Width	2.54mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	100mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.25ms
AT Value Range	28 to 52 AT

Key Features

Hermetically sealed in a gas-filled glass envelope to ensure reliability.
Contact material consists of ruthenium plated on gold for superior conductivity.
Maximum switching power of 10 watts with contact resistance of 100 milliohms.
Wide operating temperature range from -55°C to 125°C for industrial applications.
Compact dimensions of 14.5 mm length and 2.54 mm width suitable for PCB mounting.
Fast response with maximum release time of 30 microseconds and operating time including bounce of 0.25 milliseconds.
Terminal type is wire and mount type is PCB for easy integration into circuits.
AT value range from 28 to 52, providing options for varying sensitivity requirements.

Product Description

Assemtech RI-23B PCB reed switch is a high-quality, hermetically sealed switching device featuring single pole single throw normally open contacts. Designed for reliable operation, it supports a maximum switching current of 500 mA and a maximum switching voltage of 200 V, with a power rating up to 10 watts.

The switch includes ruthenium plated contacts on gold that ensure low contact resistance of 100 milliohms for efficient electrical performance. Its compact form factor of 14.5 mm length and 2.54 mm width allows easy PCB mounting, suitable for diverse electrical and automation applications.

Operating effectively across a broad temperature range from -55°C to 125°C, the RI-23B offers durability in various industrial environments. The fast mechanical response with a maximum release time of 30 microseconds and total operating time including bounce of 0.25 milliseconds supports precise switching actions.

The switch terminals are wire type, and the device mounts directly onto PCBs. The AT value range of 28 to 52 enables selection based on sensitivity needs. Manufactured in the Netherlands, the product meets ISO standards certifying its quality and compliance.

Hermetically sealed single pole single throw normally open reed switch. Contact material: ruthenium on gold for enhanced durability and conductivity. Maximum switching current of 500 mA and voltage of 200 V for moderate power applications.

Operating temperature range from -55°C to 125°C for industrial use. Compact size with length 14.5 mm and width 2.54 mm for easy PCB integration. Fast response times ensure reliable switching performance. Wire terminal type with PCB mount for straightforward installation.

Complies with ISO standards for quality assurance.

This Assemtech RI-23B Reed Switch is ideal for industrial, electrical, automation, and manufacturing applications requiring precise magnetic switch control and reliability. Browse more in EnvMart’s extensive Electric Components & Switches category for a wide selection of professional-grade products.
