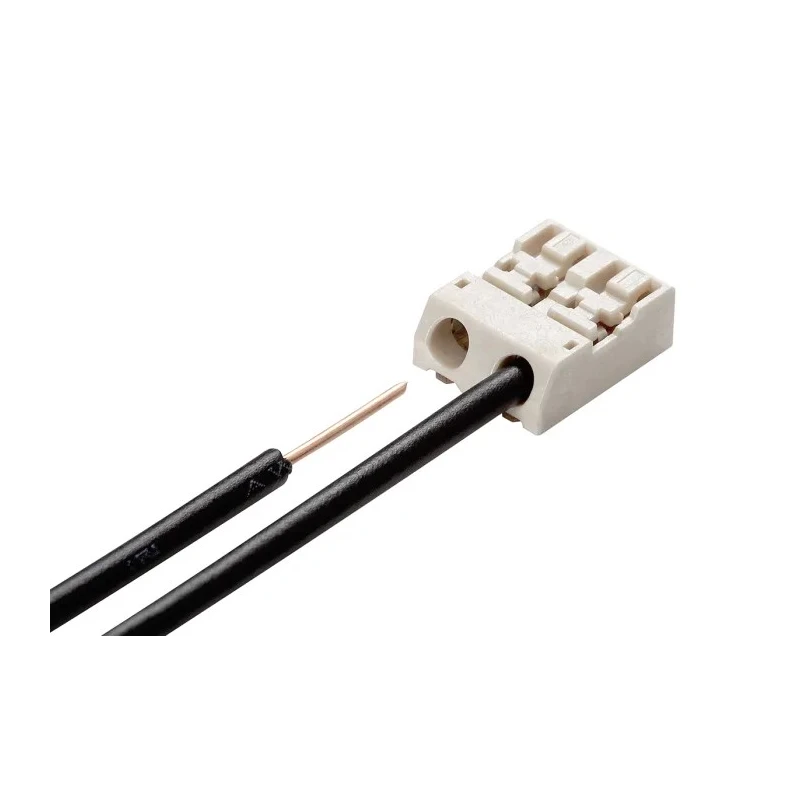

Molex Mini Lite-Trap Series Right Angle Surface PCB Socket 2-Contact 1 Row 3mm Pitch Solder 104238-0210
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 160V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | Mini Lite-Trap |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- Features a low profile design ideal for space saving on PCBs.
- Right angle orientation supports surface mounting for flexible PCB layouts.
- Built with copper contacts plated with tin for corrosion resistance.
- Supports a current rating of 12A at 160V maximum voltage.
- Wire insulation design includes a gate-style terminal ensuring secure wire retention.
- Operating temperature range from -40°C up to 130°C for versatile applications.
- Includes a push button latch for easy wire extraction without additional tools.
- Housing material is Liquid Crystal Polymer for mechanical stability and durability.
Product Description
Molex 104238-0210 Mini Lite-Trap Series Right Angle Surface PCB Socket is a 2-contact, 1-row connector with 3 mm pitch solder termination designed for wire-to-board electrical connections. It features a compact, low profile that measures just 2.65 mm in height, ideal for saving PCB space in electronic assemblies.
This connector employs a gate-style terminal that provides a secure electrical contact by trapping the wire with high retention force, while maintaining low insertion force for ease of assembly. The integrated push button latch allows manual wire extraction without the need for extra tools, facilitating field assembly and maintenance.
The housing, made from Liquid Crystal Polymer, ensures mechanical strength and thermal stability. With contacts crafted from copper and plated with tin, the socket assures corrosion resistance and reliable conductivity. The connector is rated for 12 amps of current at up to 160 volts, and operates reliably within a temperature range of -40°C to 130°C, making it suitable for diverse industrial and commercial applications.
This right angle surface mount PCB socket is particularly suited for compact LED lighting modules such as downlighting and strip lighting due to its low profile and robust wire retention characteristics. Additional applications include consumer electronics and factory automation where secure, easy-to-use wire insertion and extraction are crucial.
Low profile design conserves PCB space. Gate-style dual contact terminal provides secure connection. Push button latch enables easy wire extraction. Housing ensures stable wire placement with insulation stop. Rated for 12A current and 160V voltage.
Operates in temperature range of -40°C to 130°C. Made with Copper contacts and Tin plating for durability. Suitable for electronic, industrial, and LED lighting applications.
This Mini Lite-Trap PCB socket from Molex is part of a family of Lite-Trap connectors, designed to meet the demands of modern electronic assemblies that require reliable, compact wire-to-board connectors.
Explore the full range of PCB Sockets and connectors from Molex and related products in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A at a maximum voltage of 160V.
It operates reliably within a temperature range of -40°C to 130°C.
The housing is made from Liquid Crystal Polymer, while the contacts are crafted from copper and plated with tin for corrosion resistance.
It features a gate-style terminal that provides high retention force to secure the wire while allowing low insertion force for ease of assembly.
The pitch size of this connector is 3mm.
This unit is designed for surface mounting, allowing for flexible PCB layouts.
This model has 2 contacts arranged in a single row.
The socket features a right angle orientation, which is ideal for space-saving on PCBs.
It uses solder termination for wire-to-board electrical connections.
It is particularly suited for compact LED lighting modules, consumer electronics, and factory automation applications.
The contacts in this connector are female.
The country of origin for this model is Korea.
