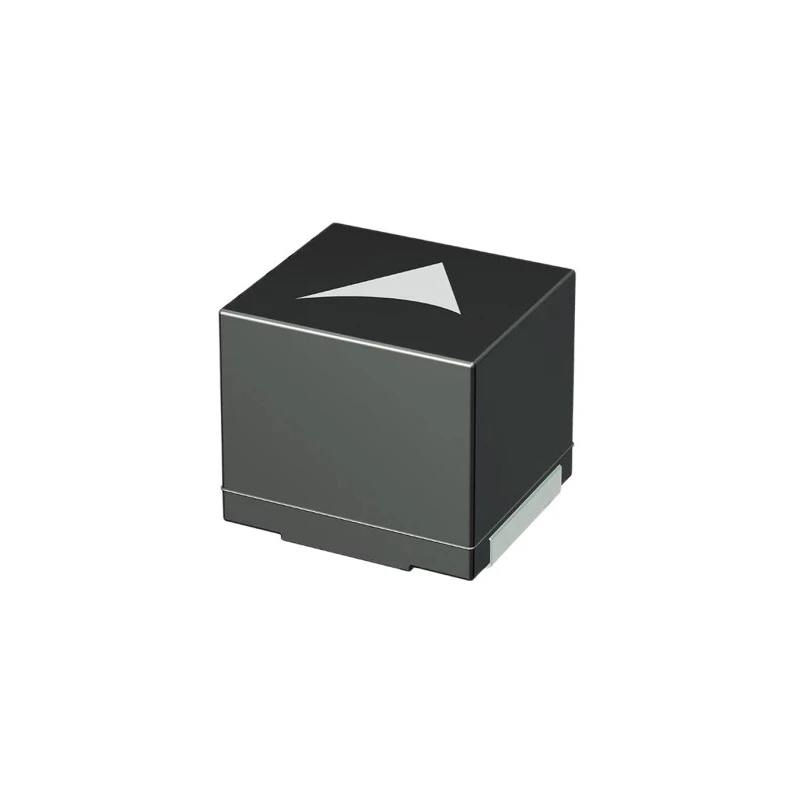

TDK SIMID 2220 Wirewound Surface Mount Inductor with Ferrite Core 4.7 mH ±10% 73 mA Idc Q:30 B82442T1475K050
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 5mm |
| Length | 5.6mm |
| Model | B82442T1475K050 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7mH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 73mA |
| Pin Count | 2 |
| Maximum DC Resistance | 48.6Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 800kHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| High Inductance values | 1 μH to 10000 μH |
Key Features
- The inductor is unshielded with a 2220 package case.
- Constructed with wirewound technology and moulded with a ferrite drum core for durability.
- Operates safely within a temperature range of -55°C to 150°C.
- Supports solder termination style and is suitable for lead-free reflow soldering.
- Meets RoHS standards and complies with AEC-Q200 automotive standard.
- Its maximum self-resonant frequency is 800 kHz with a minimum quality factor of 30.
- Designed for applications including filtering supply voltages, DC/DC converters, automotive electronics, telecommunications, and industrial electronics.
Product Description
TDK B82442T1475K050 SIMID 2220 wirewound surface mount inductor is engineered with a ferrite drum core and features a 4.7 mH inductance value with ±10% tolerance. This component is designed for high precision and reliability in electronic circuits requiring inductors with stable characteristics.
This unshielded inductor supports a maximum DC current rating of 73 mA and operates efficiently within a temperature range of -55°C to 150°C, suitable for demanding industrial and automotive environments.
The 2220 packaged device measures 5.6 mm in length, 5 mm in height, and 5 mm in depth, making it fit for compact PCB designs. It is constructed with laser-welded windings and flame-retardant moulding to ensure durability and safety.
This component conforms to RoHS standards and is qualified under the automotive AEC-Q200 standard, ensuring it meets industry reliability requirements. The termination style is soldered, supporting modern SMT assembly processes including lead-free reflow soldering as per JEDEC J-STD 020.
The B82442T SIMID series offers a high current handling capability with inductance values ranging from 1 μH to 10,000 μH. Its maximum DC resistance is 48.6 Ω, contributing to efficient circuit performance. The inductor's maximum self-resonant frequency is 800 kHz and has a minimum quality factor of 30, suitable for high-frequency applications.
Commonly applied in filtering supply voltages, coupling and decoupling circuits, DC/DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer electronics, and industrial electronics.
This is a new, high-quality TDK surface mount inductor, ideal for designers and engineers requiring reliable inductors for their circuit boards to ensure efficiency and compliance with industrial standards. Explore more Surface Mount Inductors from TDK on EnvMart for your electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 4.7 mH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 73 mA.
It measures 5.6 mm in length, 5 mm in height, and 5 mm in depth.
It operates safely within a temperature range of -55°C to 150°C.
The maximum self-resonant frequency is 800 kHz.
It supports a solder termination style, suitable for lead-free reflow soldering.
Yes, it meets RoHS standards and complies with the AEC-Q200 automotive standard.
The core material is ferrite, which contributes to its performance characteristics.
The maximum DC resistance is 48.6 Ω.
It is commonly used in filtering supply voltages, DC/DC converters, and automotive electronics.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
The minimum quality factor is 30, indicating its efficiency in high-frequency applications.
