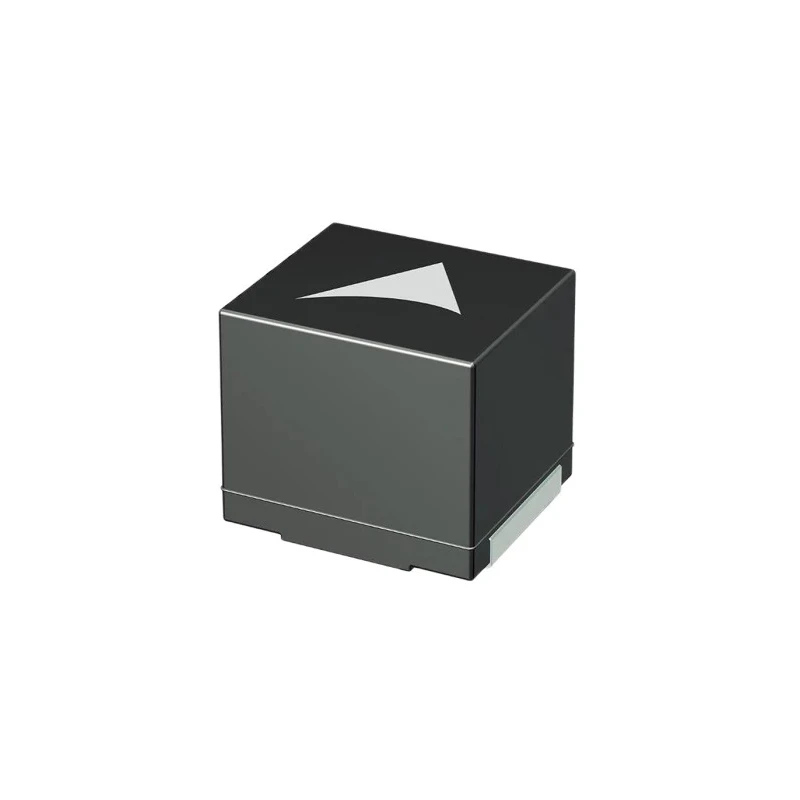

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 330 μH ±10% 280 mA Idc Q20 B82442T1334K050
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 5mm |
| Length | 5.6mm |
| Model | B82442T1334K050 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 280mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.29Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.4MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| High Inductance values | 1 μH to 10000 μH |
Key Features
- This inductor features a ferrite core construction for stable inductance performance.
- It has a package size of 2220 with dimensions 5.6 mm length, 5 mm height, and 5 mm depth.
- Maximum DC resistance is 3.29 ohms and it supports frequencies up to 3.4 MHz self-resonant frequency.
- The component is qualified to the automotive AEC-Q200 standard and is RoHS compliant and halogen-free.
- It is designed for solder termination and suitable for lead-free reflow soldering processes.
- The operating temperature range spans -55°C to 150°C for reliable performance.
- This inductor has a minimum quality factor (Q) of 20, ensuring high efficiency in power circuits.
- It is moulded for flame-retardancy and uses wirewound construction optimized for high current handling.
Product Description
TDK B82442T1334K050 SIMID 2220 series is an unshielded wirewound surface mount inductor featuring a ferrite core with an inductance of 330 μH and tolerance of ±10%. This component supports a maximum DC current of 280 mA and has a minimum quality factor of 20, ensuring efficient power filtering and noise suppression.
The inductor measures 5.6 mm in length, 5 mm in height, and 5 mm in depth, making it suitable for dense PCB layouts. It has a maximum DC resistance of 3.29 ohms and a maximum self-resonant frequency of 3.4 MHz, making it appropriate for high-frequency applications.
Qualified to automotive standard AEC-Q200, it is designed to operate reliably between -55°C and 150°C. The solder termination style and compatibility with lead-free reflow soldering conform to industry manufacturing standards. The product is RoHS compliant and halogen-free, promoting environmental safety.
Ferrite core provides stable magnetic properties. Automotive-grade reliability with AEC-Q200 qualification. Suitable for switching power supplies, DC/DC converters, and power filtering in automotive and industrial electronics.
High current handling capacity with wirewound construction. Flame-retardant moulded design for safety compliance.
This Surface Mount Inductor is ideal for industrial electronics, automotive equipment, telecommunications, and consumer electronics requiring robust EMI filtering and energy storage capabilities. It is delivered in tape & reel packaging, facilitating automated assembly processes.
Explore more quality inductors and passive components in the Electronics & Electricals category at EnvMart for your high-performance circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 330 μH with a tolerance of ±10%.
It supports a maximum DC current of 280 mA.
The inductor measures 5.6 mm in length, 5 mm in height, and 5 mm in depth.
The maximum self-resonant frequency is 3.4 MHz.
It operates reliably within a temperature range of -55°C to 150°C.
It is constructed using a wirewound design with a ferrite core.
Yes, it is RoHS compliant and qualified to the automotive AEC-Q200 standard.
The termination style is solder, suitable for lead-free reflow soldering processes.
It is delivered in tape & reel packaging, which facilitates automated assembly processes.
The maximum DC resistance is 3.29 ohms.
The minimum quality factor is 20, indicating efficient power filtering and noise suppression.
It is suitable for use in switching power supplies, DC/DC converters, and power filtering in automotive and industrial electronics.
