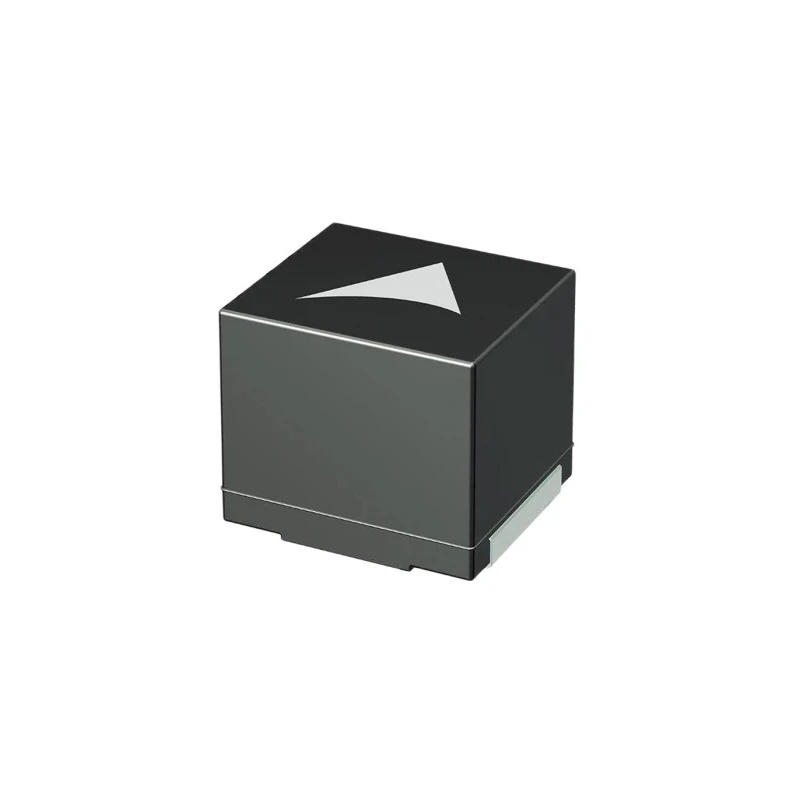

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 330 μH ±10% 280 mA Idc Q:20 B82442T1334K050
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 5mm |
| Length | 5.6mm |
| Model | B82442T1334K050 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 280mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.29Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.4MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| High Inductance values | 1 μH to 10000 μH |
Key Features
- Wirewound construction with a ferrite core for high inductance stability.
- Compact 2220 package size measuring 5.6 mm length, 5 mm height, and 5 mm depth.
- Suitable for surface mount technology with solder termination style.
- Rated for temperatures from -55°C to 150°C and meets AEC-Q200 automotive standard.
- Maximum DC resistance of 3.29 Ω and a minimum quality factor of 20.
- Maximum self-resonant frequency is 3.4 MHz ensuring high frequency performance.
- Provided on tape and reel packaging for automated assembly efficiency.
- RoHS compliant and halogen-free construction suitable for lead-free reflow soldering.
Product Description
TDK B82442T1334K050 is a SIMID series 2220 package surface mount inductor featuring an unshielded wirewound construction with a ferrite core. This inductor offers a nominal inductance of 330 μH with a tolerance of ±10%, suitable for precise inductive applications requiring stability and reliability.
Its compact dimensions of 5.6 mm length, 5 mm height, and 5 mm depth are optimized for surface mount technology, facilitating easy integration into printed circuit boards using solder terminations. The device is rated to operate within a wide temperature range from -55°C up to 150°C, compliant with the demanding AEC-Q200 automotive standard, ensuring great durability under harsh environments.
With a maximum DC current rating of 280 mA and a maximum DC resistance of 3.29 Ω, this inductor provides efficient current handling and minimal power loss. Its minimum quality factor of 20 and maximum self-resonant frequency of 3.4 MHz support stable performance in high-frequency applications.
The inductor is supplied on tape and reel packaging to support automated manufacturing processes, enhancing production efficiency. Its RoHS compliance and halogen-free materials align with modern environmental and safety standards, while suitability for lead-free reflow soldering reinforces manufacturing compatibility.
Applications include filtering of supply voltages, coupling and decoupling in DC/DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer electronics, and industrial electronics, making it a versatile component in multiple electrical domains.
Wirewound construction with ferrite core enhances inductance stability. Compact 2220 package suited for surface mount assembly. High temperature rating and automotive compliance. Efficient current handling with low resistance.
RoHS compatible and halogen-free materials. Ideal for power electronics and automotive applications. Tape and reel packaging enables efficient production. Explore all TDK SIMID Surface Mount Inductors at EnvMart for high quality and performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 330 μH with a tolerance of ±10%.
This inductor has compact dimensions of 5.6 mm in length, 5 mm in height, and 5 mm in depth.
The maximum DC current rating for this unit is 280 mA.
The maximum self-resonant frequency is 3.4 MHz, which supports high-frequency performance.
It operates within a wide temperature range from -55°C to 150°C.
It features a wirewound construction with a ferrite core, enhancing inductance stability.
The maximum DC resistance is 3.29 Ω, providing efficient current handling.
It is provided on tape and reel packaging, facilitating automated assembly.
Yes, it is RoHS compliant and meets the AEC-Q200 automotive standard.
The minimum quality factor is 20, which indicates stable performance in applications.
The termination style for this model is solder, suitable for surface mount technology.
This inductor is suitable for applications such as filtering of supply voltages, DC/DC converters, and automotive electronics.
