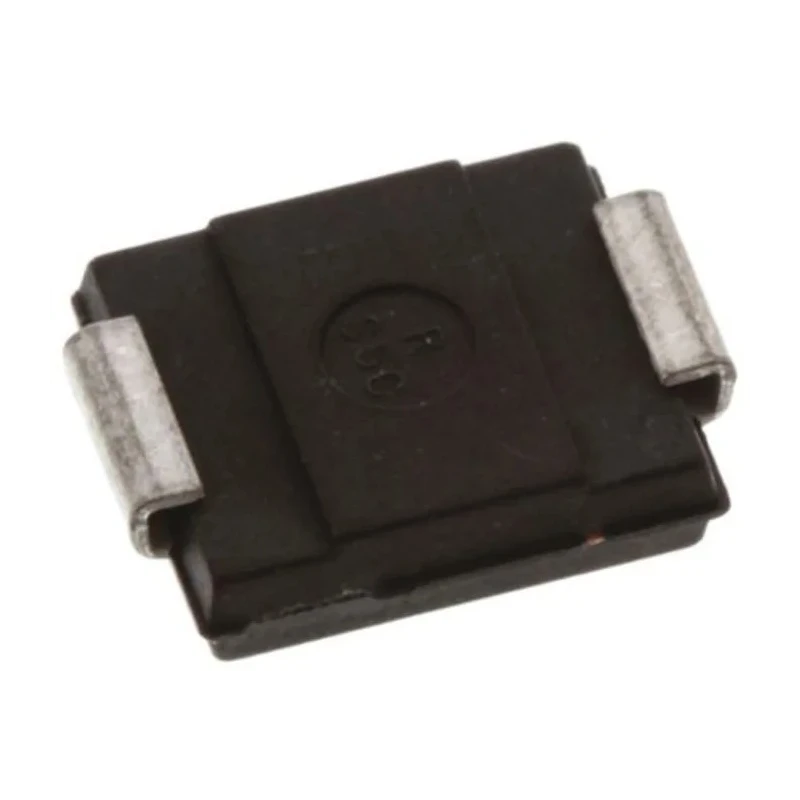

onsemi 60 V 3 A Schottky Diode, 2-Pin Surface Mount DO-214AB Package SS36

Free Delivery in India | Lowest Global Shipping Charges

onsemi 60 V 3 A Schottky Diode, 2-Pin Surface Mount DO-214AB Package SS36

Name: onsemi 60 V 3 A Schottky Diode, 2-Pin Surface Mount DO-214AB Package SS36
Brand: onsemi
SKU: 386744
Price: 0.44 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.75mm
Length	7.15mm
Model	SS36
Width	6.25mm
Mount Type	Surface
Series	SS36
Maximum Operating Temperature	150°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10mA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	750mV

Key Features

Features a compact DO-214AB package ideal for surface mounting.
Capable of continuous forward current up to 3 amperes.
Operates efficiently with a maximum forward voltage of 750 millivolts.
Offers peak reverse repetitive voltage rated at 60 volts for reliable blocking.
Handles peak non-repetitive forward surge currents up to 100 amperes.
Wide operating temperature range from -55°C to 150°C for versatile environments.
Designed with a single diode configuration and two pins.
Physical dimensions are 7.15 mm length, 6.25 mm width, and 2.75 mm height.

Product Description

onsemi SS36 Schottky Diode is a 60 V, 3 A rated semiconductor device featuring a compact 2-pin DO-214AB (SMC) surface mount package designed for optimizing space on PCBs.

This diode is configured as a single Schottky barrier rectifier that offers a maximum forward voltage of 750 mV and can withstand peak reverse repetitive voltage of 60 V, making it suitable for efficient power conversion and rectification.

Its wide operating temperature range from -55°C to 150°C, as well as its ability to handle peak non-repetitive forward surge current up to 100 A, ensures reliability under demanding electronic and industrial conditions.

The diode’s physical dimensions are 7.15 mm in length, 6.25 mm in width, and 2.75 mm in height, allowing integration into compact electronic designs. It is not certified for automotive standards, aligning it with general industrial and commercial electronics use cases.

This onsemi diode serves applications in power supplies, electronics manufacturing, industrial automation, and other areas requiring fast switching and low forward voltage drop diodes.

Compact DO-214AB surface mount package for optimized PCB space utilization. Continuous forward current rating of 3 A for robust power handling. Maximum forward voltage of 750 mV ensures efficient rectification. Peak reverse voltage rating of 60 V for protection against voltage spikes.

Wide temperature operation range from -55°C up to 150°C enhances durability. Single diode configuration with 2 pins facilitates simple circuit integration. Physical dimensions support compact and dense electronics assembly.

Not automotive rated, suitable for general-purpose and industrial electronics. Supports industrial, electronic components manufacturing, power electronics, and similar application environments. Explore more Schottky Diodes & Rectifiers and onsemi products on EnvMart for your advanced electronic component needs.
