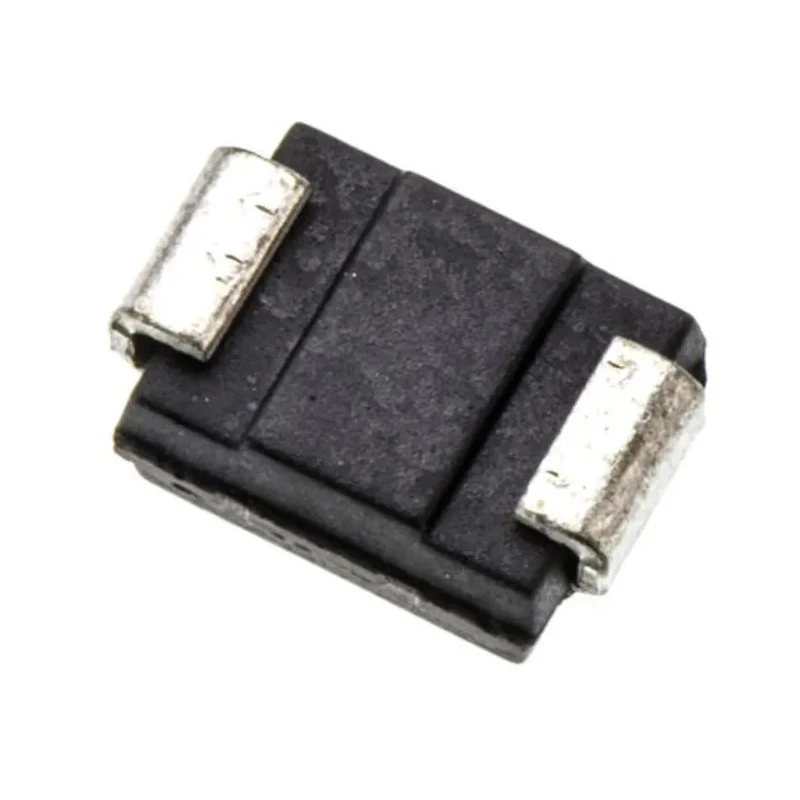

onsemi Schottky Barrier Rectifier Diode 30 V 2 A Surface Mount DO-214AA Package SS23

onsemi SS23 is a Schottky Barrier Rectifier Diode designed for surface mount applications requiring efficient rectification with low forward voltage drop. It is housed in a compact DO-214AA package and rated for a maximum continuous forward current of 2 amperes at a peak reverse repetitive voltage of 30 volts. This diode features a single diode configuration with 2 pins, making it suitable for various electronic circuits, power supplies, and switching applications.

The diode's key characteristics include a low forward voltage drop of 500 millivolts to reduce conduction losses and a high surge capability with a peak non-repetitive forward surge current of 50 amperes. Operating reliably over a wide temperature range from -65°C to 125°C, the SS23 offers versatility for demanding environments typical in consumer electronics, industrial controls, and telecommunications equipment.

The compact dimensions (4.75 mm length, 3.95 mm width, and 2.45 mm height) facilitate high-density PCB layouts, improving overall system integration. While this diode does not carry automotive or specific industry approvals, its robust electrical ratings and reliable construction make it an excellent choice for general-purpose rectification tasks in power and signal electronics.

Applications include power management, voltage clamping, and reverse polarity protection in industrial, manufacturing, and consumer electronic devices. The surface mount design supports efficient automated assembly and improved thermal management. onsemi's SS23 product line delivers industry-standard quality and performance trusted by electronic component designers worldwide.

Compact DO-214AA surface mount package suitable for high efficiency applications. Maximum continuous forward current of 2 A for reliable performance. Peak reverse repetitive voltage rating of 30 V ensures robust operation.

Low forward voltage drop of 500 mV to minimize power loss. Wide operating temperature range from -65°C to 125°C enhances durability. High surge current capability with 50 A peak non-repetitive forward surge current. Single diode configuration with 2 pins for straightforward PCB integration.

Peak reverse current rated at 10 mA for leakage control. Package dimensions of 4.75 mm length, 3.95 mm width, and 2.45 mm height. No automotive or industry-specific approvals, intended for general electronic applications.
