onsemi Schottky Diode 30 V 2 A Surface Mount DO-214AA Package SS23

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Diode 30 V 2 A Surface Mount DO-214AA Package SS23

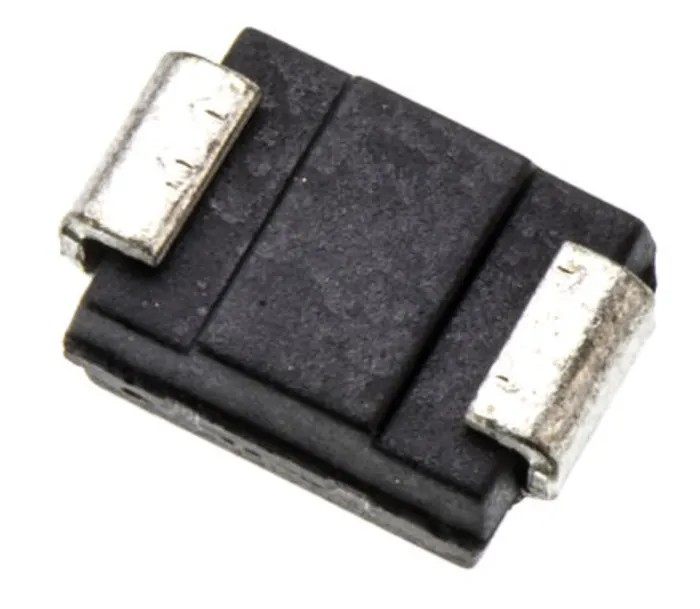

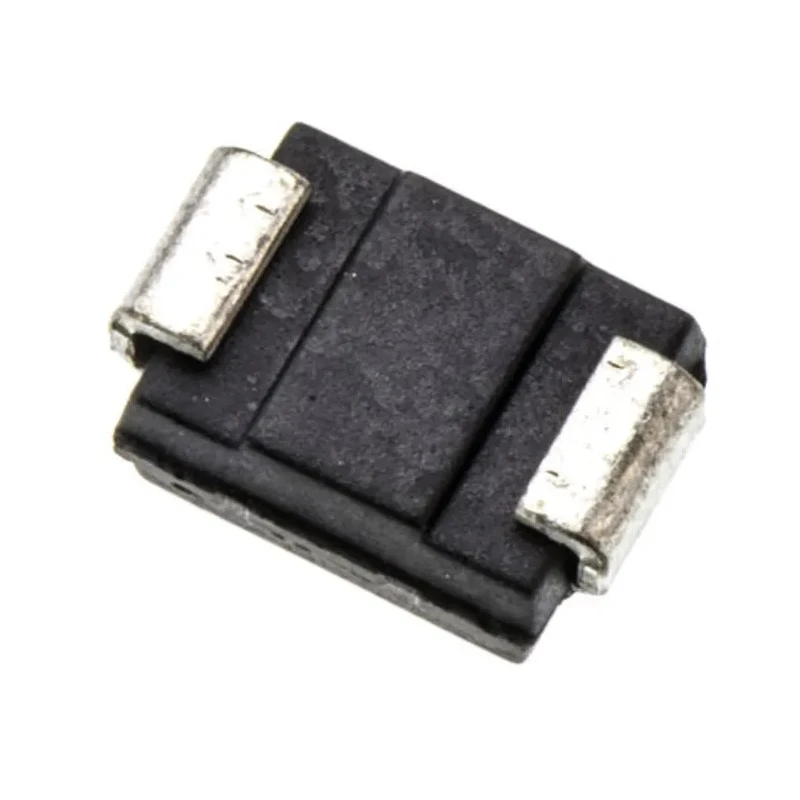

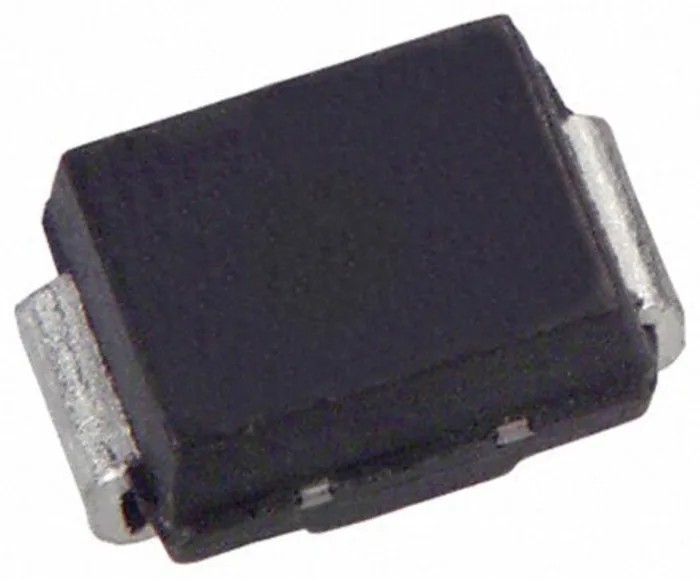

Name: onsemi Schottky Diode 30 V 2 A Surface Mount DO-214AA Package SS23
Brand: onsemi
SKU: 386737
Price: 0.21 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.45mm
Length	4.75mm
Model	SS23
Width	3.95mm
Mount Type	Surface
Series	SS23
Maximum Operating Temperature	125°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	500mV

Key Features

Surface mount diode in compact DO-214AA package suitable for PCB mounting.
Rated for maximum continuous forward current of 2 amperes.
Peak reverse repetitive voltage of 30 volts ensures robust operation.
Maximum forward voltage drop of 500 millivolts delivers efficiency in rectification.
Operating temperature range from -65°C to 125°C for wide industrial use.
Features single diode configuration with a 2-pin design.
Peak non-repetitive forward surge current of 50 amperes for transient protection.
Designed for use in switching power supplies, power rectification, and protection circuits.

Product Description

onsemi SS23 is a Schottky diode designed for efficient power rectification and protection in electronic devices. This diode features a surface mount DO-214AA package with a robust single diode configuration ensuring reliable performance for 30 V peak reverse voltage applications.

Capable of handling 2 A maximum continuous forward current and transient surges up to 50 A, the SS23 diode supports rugged industrial, commercial, and electronic manufacturing applications. The device operates efficiently with a maximum forward voltage of 500 mV and maintains operation across a wide temperature range from -65°C to 125°C.

This compact diode's physical dimensions of length 4.75 mm, width 3.95 mm, and height 2.45 mm make it suitable for densely populated circuit boards in automotive electronics, power supplies, and switching regulators. The 2-pin design facilitates straightforward PCB surface mount installation.

Surface mount DO-214AA package provides reliable mechanical and electrical stability. Continuous forward current rating of 2 A supports moderate power levels. Peak reverse repetitive voltage rating of 30 V protects circuits from voltage spikes.

Maximum forward voltage of 500 mV contributes to energy efficiency. Wide operating temperature range (-65°C to 125°C) suits harsh environments. Single diode configuration simplifies design integration. Peak non-repetitive surge current capability enhances transient tolerance.

Compact dimensions allow use in limited space applications.

This onsemi Schottky Diode is ideal for applications including power supply rectification, freewheeling diodes, and protection circuits in industrial, automotive, and commercial electronic devices.

Explore more semiconductor and diode products on EnvMart for your design and manufacturing needs.
