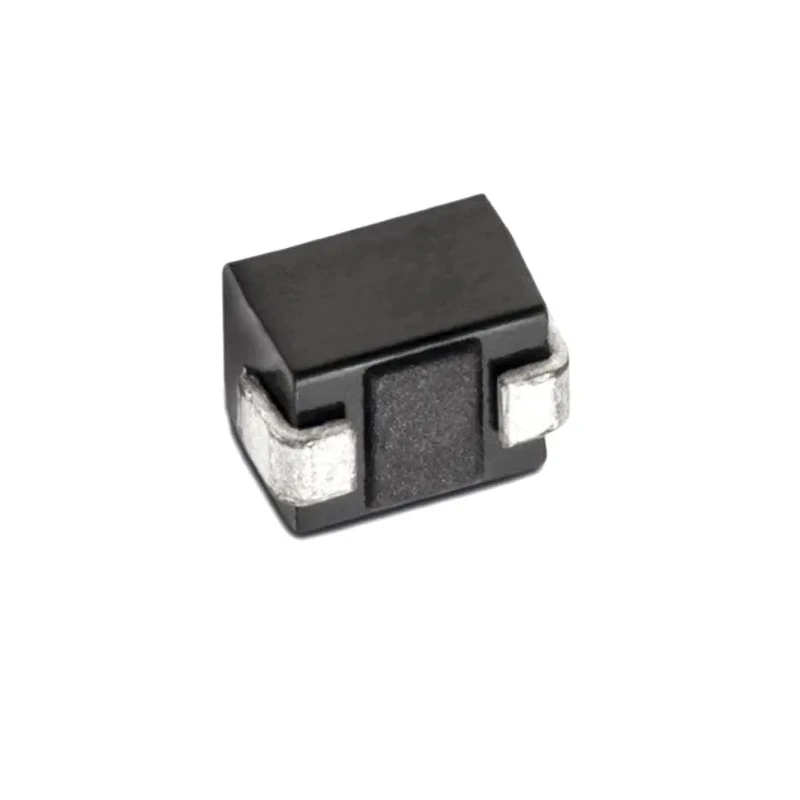

Wurth Elektronik WE-GFH 3225 Unshielded Surface Mount Inductor 100μH ±10% 160mA 744764920
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.2mm |
| Length | 2.9mm |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | WE-GFH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Powdered Iron |
| Inductance | 100μH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 160mA |
| Pin Count | 2 |
| Maximum DC Resistance | 10.14Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 12MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Moulded |
Key Features
- This surface mount inductor has a compact 3225 package case size.
- It supports a maximum DC current of 160mA for reliable circuit performance.
- The inductor is moulded and constructed with a powdered iron core for high frequency applications.
- Temperature range is from minus 40°C to a maximum operating temperature of 125°C.
- The device is RoHS and REACH compliant ensuring environmental safety.
- The maximum DC resistance is 10.14 ohms, providing efficient current flow.
- Inductance tolerance is ±10%, ensuring consistent inductance characteristics.
- Ideal for acoustic filtering, high frequency filtering, and high frequency circuit use.
Product Description
Wurth Elektronik 744764920 is an unshielded surface mount inductor from the WE-GFH series, featuring a 3225 package size tailored for compact applications. With an inductance of 100μH and a powdered iron core construction, this inductor offers reliable performance in high frequency and acoustic filtering circuits.
This device supports a maximum DC current rating of 160mA and operates within a temperature range of -40°C to 125°C, making it suitable for demanding electronic environments. The inductor is moulded to ensure mechanical stability and durability in surface mount technology (SMT) applications.
The maximum DC resistance of 10.14Ω enhances efficiency, while the ±10% inductance tolerance guarantees consistent operation. Compliance with RoHS and REACH standards supports environmentally conscious manufacturing and usage.
Packaging is provided in tape and reel format, facilitating easy integration into automated PCB assembly. Applications include HF circuits, acoustic filtering, and other high frequency electronic components.
This surface mount inductor has a compact 3225 package case size. It supports a maximum DC current of 160mA for reliable circuit performance. The inductor is moulded and constructed with a powdered iron core for high frequency applications.
Temperature range is from minus 40°C to a maximum operating temperature of 125°C. The device is RoHS and REACH compliant ensuring environmental safety. The maximum DC resistance is 10.14 ohms, providing efficient current flow.
Inductance tolerance is ±10%, ensuring consistent inductance characteristics. Ideal for acoustic filtering, high frequency filtering, and high frequency circuit use. It is supplied in tape and reel packaging, suitable for automated assembly lines.
Made in China, ensuring standardized manufacturing quality.
This Wurth Elektronik Surface Mount Inductor is widely used in industrial electronics, telecommunications, automotive electronics, and consumer electronics, particularly for noise suppression and signal filtering applications. Its high frequency capabilities make it ideal for modern compact circuit designs.
Explore more high-quality inductors and related electronic components available at EnvMart for all your industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100μH with an inductance tolerance of ±10%.
It supports a maximum DC current of 160mA, ensuring reliable circuit performance.
The dimensions of this unit are 2.9mm in length, 2.5mm in depth, and 2.2mm in height.
The maximum operating temperature is 125°C, while the minimum operating temperature is -40°C.
It is constructed with a powdered iron core, suitable for high frequency applications.
It is supplied in tape and reel packaging, which facilitates automated PCB assembly.
The maximum DC resistance is 10.14Ω, which enhances current flow efficiency.
It is compliant with RoHS and REACH standards, supporting environmentally conscious manufacturing.
The maximum self-resonant frequency is 12MHz, making it suitable for high frequency applications.
It features a surface mount termination style, designed for SMT applications.
It is ideal for acoustic filtering, high frequency filtering, and high frequency circuit use.
This model has a pin count of 2, suitable for various circuit designs.
