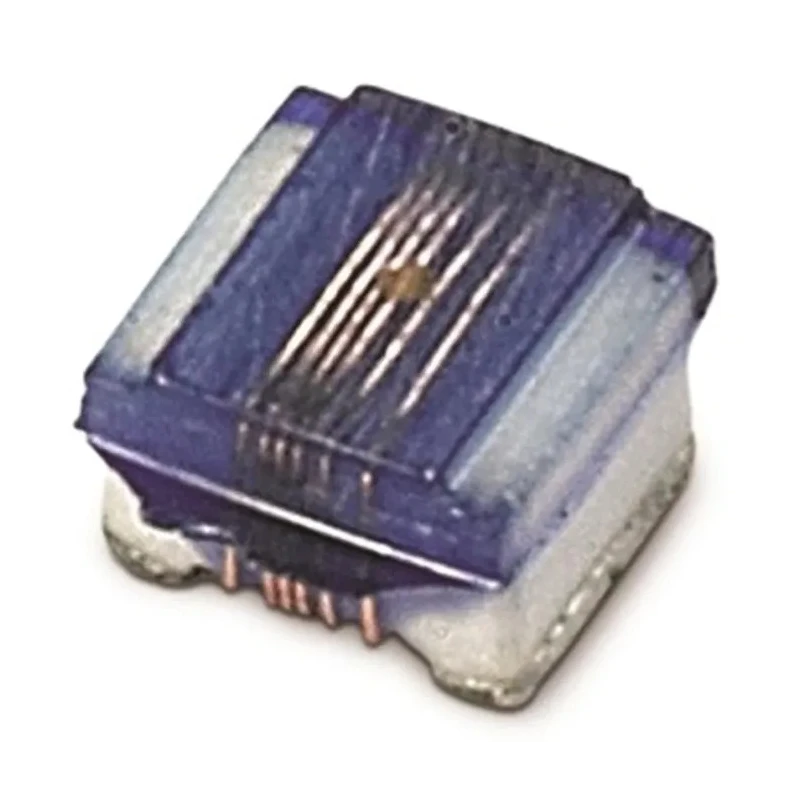

ATC WE-KI 0603 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 100 nH ±5% 400 mA Idc 744761210A

Wurth Elektronik 744761210A WE-KI 0603 Series wirewound surface mount inductors feature a ceramic core and are designed specifically for high frequency electronic applications. This 0603 size inductor offers 100 nH inductance with a precision tolerance of ±5%, supporting a maximum direct current of 400 mA. The unshielded design uses wirewound construction on a ceramic core, ensuring excellent thermal stability and a high-quality factor (Q) of at least 35.

The compact footprint measures 1.6 mm in length and 1.05 mm in both height and depth, making it suitable for dense PCB layouts where space is critical. The inductor has a maximum DC resistance of 630 milliohm and a maximum operating temperature rating of 125°C, with a minimum operating temperature of -40°C. These components support maximum self-resonant frequencies reaching 1.4 GHz, ideal for wireless LAN, Bluetooth, and RF transceiver applications.

The product complies with leading industry standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21. Additionally, it conforms to the rigorous automotive grade standard AEC-Q200, enhancing reliability in automotive electronics. The termination style is surface mount, and the inductor is supplied in a Tape & Reel packaging format to facilitate automated high-volume production and assembly processes.

These inductors are recommended for reflow soldering in manufacturing. The Wurth Elektronik WE-KI series are engineered for advanced electronic systems requiring stable inductance and reliable performance at RF frequencies. They find extensive use in industrial, telecommunications, automotive, laboratory, and consumer electronics applications.

The inductor has a compact 0603 package size with 1.6mm length and 1.05mm height and depth. It supports a maximum DC current of 400 mA and has a maximum DC resistance of 630 milliohm. The component is unshielded and constructed with wirewound technology on a ceramic core.

It offers a maximum self-resonant frequency of 1.4 GHz and maintains a minimum quality factor of 35. The operating temperature range is from -40°C to 125°C with surface mount termination style. This inductor complies with RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 standards and meets automotive standard AEC-Q200.

Packaging is provided in Tape & Reel format suitable for mass automated assembly. Ideal for applications in wireless LAN, Bluetooth, RF transceiver, communications and other advanced RF systems. Explore the extensive category of Surface Mount Inductors on EnvMart to find compatible components from top brands like Wurth Elektronik.
