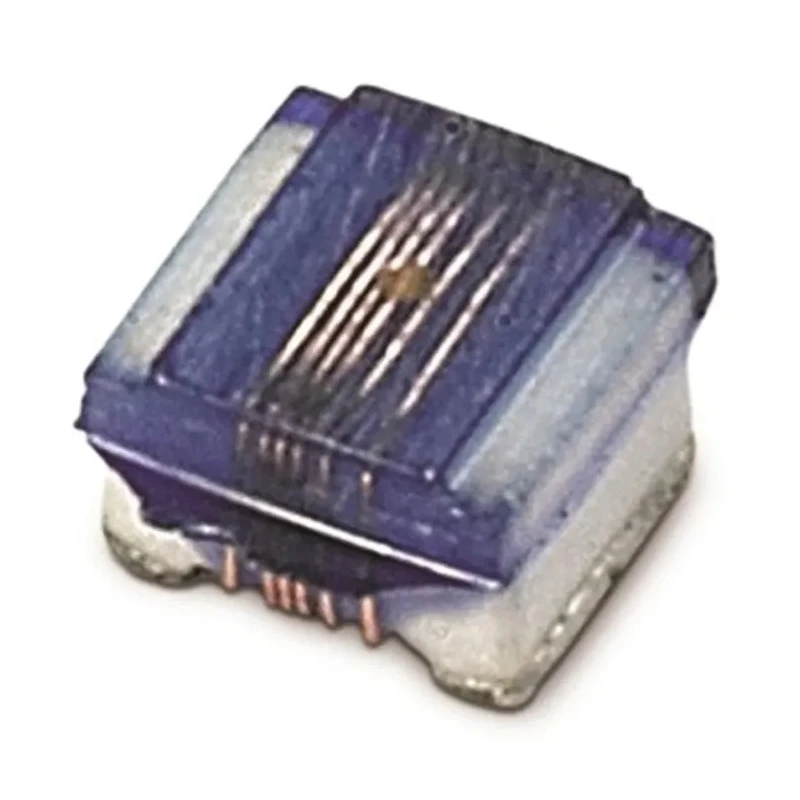

ATC WE-KI 0603 Unshielded Wirewound Surface Mount Inductor 10 nH ±5% 700 mA 4.8 GHz 744761110A

Wurth Elektronik 744761110A WE-KI 0603 unshielded wirewound surface mount inductor is engineered for high-frequency electronic applications requiring stable inductance and high performance. Featuring a ceramic core and a wirewound construction, this inductor delivers an inductance of 10 nH with a ±5% tolerance and supports a maximum DC current rating of 700 mA. Its compact 0603 case size (1.6 mm length, 1.05 mm height, and 1.05 mm depth) is ideal for surface mount technology (SMT) assembly, allowing for dense PCB layouts.

The component exhibits excellent thermal stability and a self-resonant frequency up to 4.8 GHz, making it suitable for demanding RF and communication applications such as wireless LAN, Bluetooth, and RF transceivers. Operating temperature ranges from -40°C to 125°C further assure reliable performance in various industrial environments. The inductor features tape and reel packaging, facilitating automated manufacturing processes. It meets stringent automotive standard AEC-Q200 requirements and conforms to JEDEC JS709B, IEC 61249-2-21, REACH, and RoHS environmental and safety standards.

Wurth Elektronik's WE-KI series inductors are widely used in industrial electronics, telecommunications, automotive electronics, and consumer devices where compact size and superior electrical characteristics are critical. Recommended reflow soldering helps maintain the integrity of the ceramic core.

10 nH inductance with ±5% tolerance ensuring precision. 700 mA maximum DC current rating with 130 mΩ maximum DC resistance. 0603 SMT package with tape and reel format for efficient assembly. Ceramic core and wirewound design provide high quality and thermal stability.

Max self-resonant frequency of 4.8 GHz suitable for high frequency circuits. Compliance with automotive and industrial standards including AEC-Q200. Operating temperature range from -40°C to 125°C for versatility. Compact size dimensions enable use in space-constrained applications.

This Wurth Elektronik WE-KI 0603 wirewound surface mount inductor is an optimal choice for engineers developing RF circuits, communication modules, and industrial control systems. Its proven reliability and performance supported by international standards make it a trusted component for professional electronic manufacturing.
