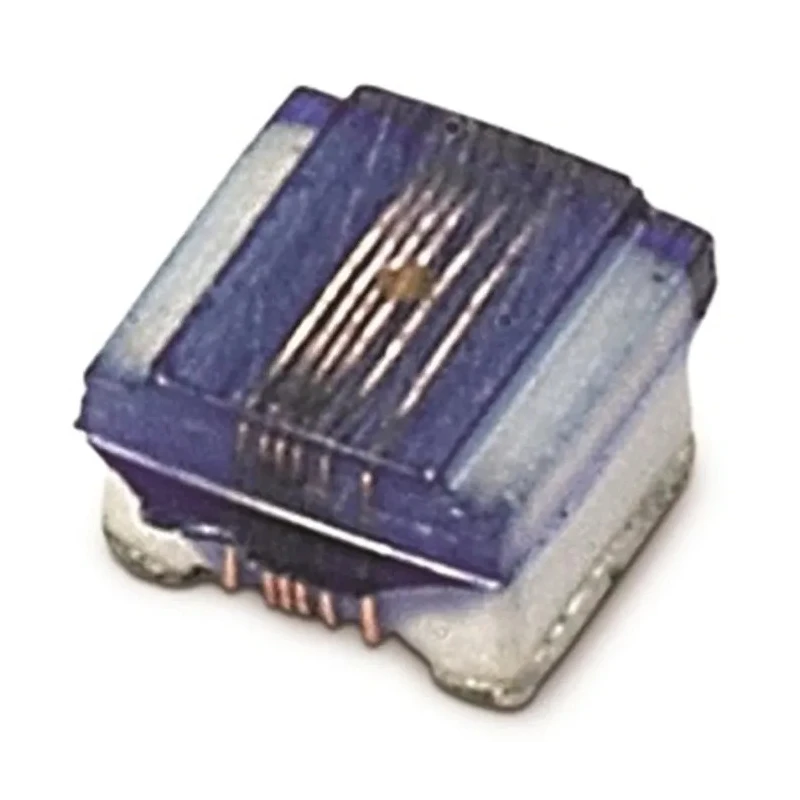

ATC Wirewound Surface Mount Inductor WE-KI Series 0805C Ceramic Core 15 nH ±5% 600 mA Idc 744760115C

Wurth Elektronik 744760115C WE-KI Series Wirewound Surface Mount Inductor is a precision component designed with a ceramic core for high frequency applications. Operating within a wide temperature range from -40°C up to 125°C, this inductor ensures reliable performance even in challenging environments. The 0805C package offers a compact footprint of 2.28mm length, 1.28mm height, and 1.7mm depth, ideal for space-constrained PCB layouts.

The inductor exhibits an inductance value of 15 nH with a ±5% tolerance, delivering consistent electrical behavior required for RF tuning circuits. With a maximum DC current capacity of 600 mA and a typical DC resistance of 170 milliohms, it balances current handling and efficiency. Its wirewound construction and ceramic core material provide thermal stability and a high quality factor of 50, achieving excellent signal integrity.

This Surface Mount Inductor achieves a maximum self-resonant frequency of 3.4 GHz, making it suitable for wireless LAN, Bluetooth, and RF communications in industrial, telecommunications, and consumer electronics sectors. The device conforms to industry standards IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, ensuring environmental and operational compliance.

Packaging is provided in tape and reel format to facilitate automated pick-and-place assembly, supporting efficient manufacturing processes. The non-shielded design minimizes volume without compromising performance, integrating seamlessly into high-density circuit boards.

The WE-KI series is recognized for excellent high frequency characteristics. Ceramic core construction enhances thermal and electrical stability. Wirewound inductors support superior quality and durability. Suitable for high-frequency wireless communication solutions.

Compact 0805C package enables flexible PCB design. Wide operating temperature range supports diverse application environments. Environmental compliance through RoHS and REACH certifications. High self-resonant frequency supports applications up to GHz range.

Packaging optimized for modern automated electronics manufacturing. Conforms to recognized international industry standards. Explore the full range of Wurth Elektronik inductors and components on EnvMart for reliable, high-quality electronic solutions tailored to your application needs.
