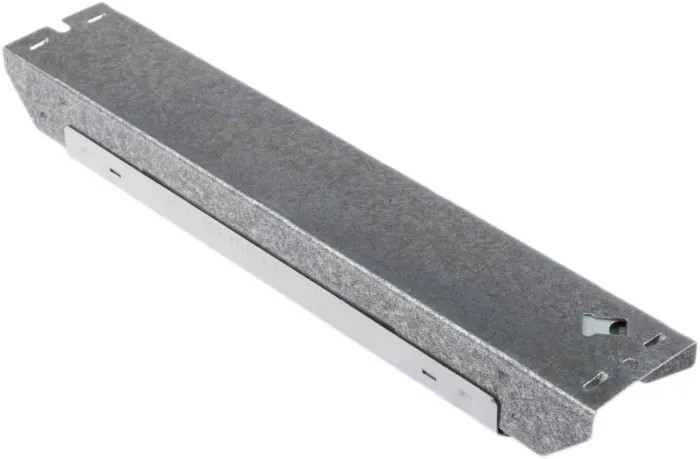

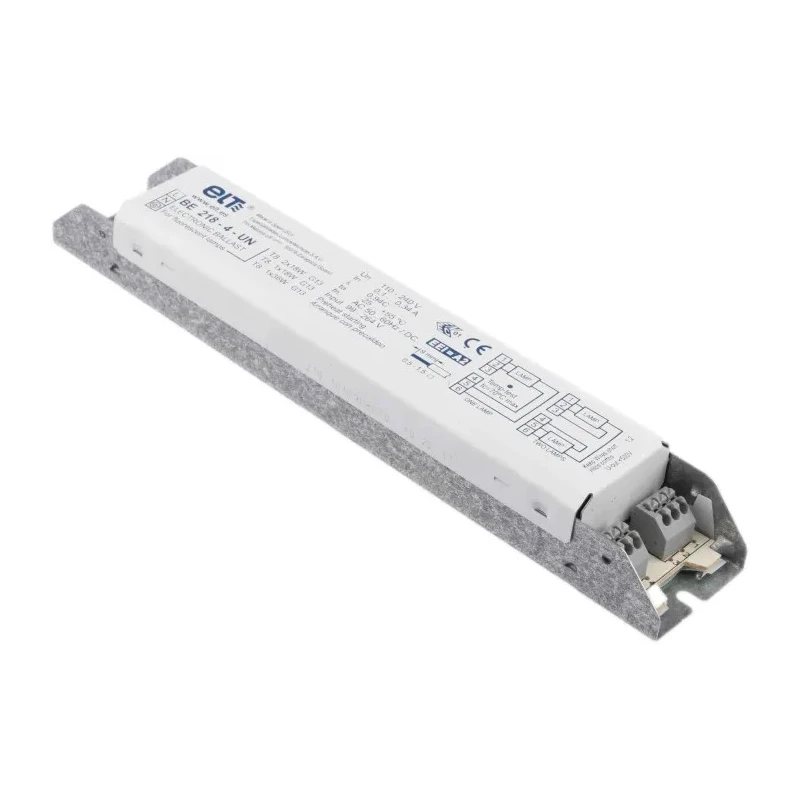

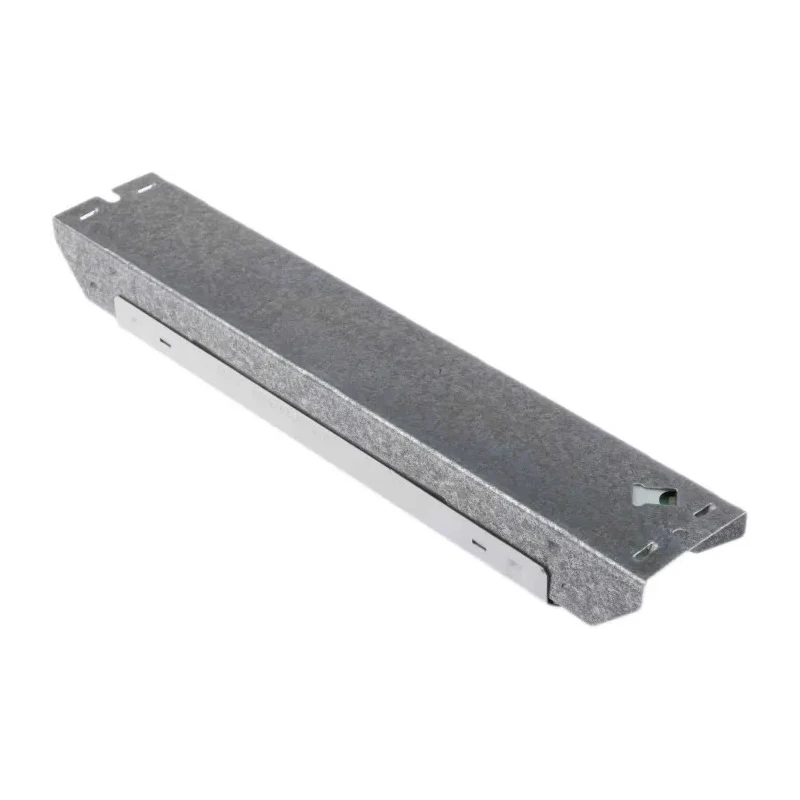

ELT Electronic Fluorescent Lighting Ballast Dual Lamp 14W/18W High Frequency Multi-Voltage 110V-260V BE 218-4-UN
Specifications
| Country of Origin | Spain |
|---|---|
| Voltage | 110, 260V |
| Brand | ELT |
| Height | 28mm |
| Length | 220mm |
| Model | BE 218-4-UN |
| Width | 40mm |
| Series | BE |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS, REACH, EU |
| Compatible Lamp Type | Fluorescent |
| Number of Lamps | 2 |
| Ballast Type | Electronic |
| Compatible Lamp Designation | T8 |
| Lighting Power | 14 W, 18 W |
| Rapid conncetor with fixing spring. Circular conductor section | 0.5 - 1.5 mm² |
Key Features
- Designed for T8 fluorescent lamps ensuring compatibility and efficient performance.
- Electronic ballast type with high-frequency operation reduces flickering and improves lamp life.
- Supports two lamps simultaneously and is not dimmable for stable output.
- Operates within a temperature range of -20°C to 55°C ensuring reliability in varied environments.
- Constructed with rapid connectors and fixing springs for easy installation.
- Compact design with dimensions 220mm length, 40mm width, and 28mm height.
- High energy efficiency and corrected stroboscopic effect provide quality lighting.
- Protects against over-voltage up to 350Vac for 2 hours ensuring longevity.
Product Description
ELT BE 218-4-UN electronic fluorescent lighting ballast is a versatile and efficient lighting component designed for T8 fluorescent tubes operating over a broad voltage range between 110V and 260V. It supports two lamps with power ratings of 14W and 18W, delivering stable luminous flux and long lamp life using preheated cathode ignition technology that eliminates flashes and flickering.
This ballast operates at high frequency, uniquely reducing energy losses and stroboscopic effects, thus enhancing visual comfort in applications such as commercial, industrial, and residential lighting systems. Its robust design includes over-voltage protection rated at 350Vac for 2 hours and a compact form factor measuring 220mm in length, 40mm in width, and 28mm in height, making it suitable for a wide range of fitting sizes.
The product includes rapid connectors with fixing springs allowing secure and quick installation with circular conductor sections from 0.5 mm² to 1.5 mm². It is compatible with both Class I and Class II luminaires, removing the need for earth screening in lamps and expanding its application scope.
Designed and manufactured in Spain, the ELT BE 218-4-UN complies with RoHS, REACH, and European Union standards ensuring environmental safety and product reliability. Its operating temperature range of -20°C to 55°C makes it suitable for various indoor lighting setups including industrial, laboratory, commercial, and institutional environments.
Supports two T8 fluorescent lamps with power ratings of 14 and 18 watts. High frequency electronic ballast for flicker-free lighting. Multi-voltage operation from 110V to 260V for broad compatibility. Robust over-voltage protection ensures longevity and safety.
Rapid connector with fixing spring supports conductor sizes 0.5 to 1.5 mm². Compact dimensions facilitate installation in diverse lighting fixtures. Certified RoHS and REACH for compliance and environmental safety. Suitable for Class I and Class II luminaire applications.
Explore more Lighting Ballasts from ELT and other brands in EnvMart’s extensive catalog for advanced industrial and commercial lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 110V to 260V, making it suitable for various applications.
It supports two T8 fluorescent lamps with power ratings of 14W and 18W.
The ELT BE 218-4-UN has a compact design with dimensions of 220mm in length, 40mm in width, and 28mm in height.
This ballast operates effectively within a temperature range of -20°C to 55°C.
It is designed specifically for T8 fluorescent lamps, ensuring compatibility and efficient performance.
The high-frequency operation of this electronic ballast reduces flickering and enhances lamp life.
Yes, it is compatible with both Class I and Class II luminaires, eliminating the need for earth screening in lamps.
It can handle lighting power ratings of 14W and 18W for the supported lamps.
This model is designed and manufactured in Spain.
