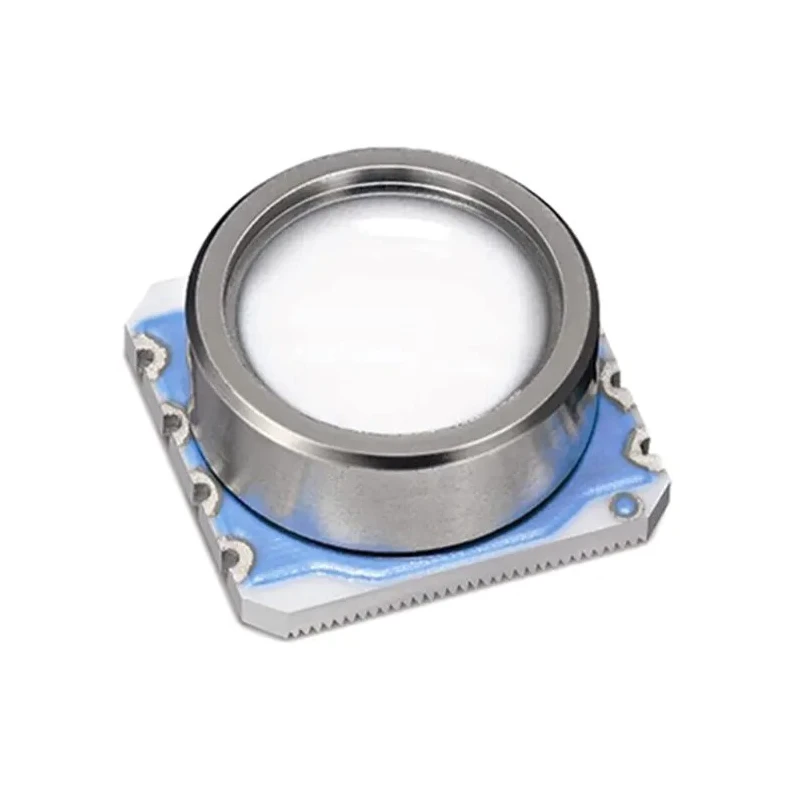

TE Connectivity Barometric Pressure Sensor Surface Mount 8-Pin QFN Package MS580302BA01-00
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1.5 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 1100 mbar |
| Height | 5mm |
| Length | 3mm |
| Model | MS580302BA01-00 |
| Sensor Type | Absolute Pressure Sensor |
| Width | 950μm |
| Mount Type | Surface |
| Series | MS580302BA01-00 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 10mbar |
| Maximum Overload Pressure | 10bar |
Key Features
- The sensor is designed for surface mounting with an 8-pin QFN package format.
- It provides high accuracy with ±1.5 mbar measurement precision.
- Operates over a temperature range from -40°C up to +85°C.
- Supports supply voltages between 1.8 V and 3.6 V for flexible integration.
- Capable of measuring pressures from 10 mbar up to 1100 mbar with maximum overload up to 10 bar.
- Includes a 24-bit digital output via integrated ADC for precise digital pressure and temperature data.
- Suitable for applications such as industrial, laboratory, HVAC, and environmental sensing.
- Requires no external components, simplifying electronic system design.
Product Description
TE Connectivity MS580302BA01-00 is a miniature barometric pressure sensor that provides highly accurate absolute pressure measurement within a compact surface mount 8-pin QFN package.
This sensor integrates an ultra-low power 24-bit Delta Sigma ADC with internal factory calibrated coefficients and a high linearity pressure sensor. It delivers a precise digital 24-bit pressure and temperature reading, optimized for low current consumption and fast conversion speeds.
Designed for varied industrial and consumer applications, this sensor can be easily interfaced with microcontrollers via I2C or SPI interfaces. Its operating voltage range between 1.8V and 3.6V allows compatibility with multiple system designs.
The device measures pressures ranging from 10 mbar to 1100 mbar with maximum overload pressure capability of 10 bar. It features a ±1.5 mbar accuracy and can operate within a temperature span of -40°C to 85°C, delivering reliable readings under diverse environmental conditions. No external components are necessary for sensor operation, which reduces overall system complexity.
Typical use cases include altimeters, mobile depth measurement systems, adventure and multi-mode watches, bike computers, data loggers, and diving computers. The sensor is hermetically sealed to prevent damage in outdoor and harsh environments.
The sensor is designed for surface mounting with an 8-pin QFN package format. It provides high accuracy with ±1.5 mbar measurement precision. Operates over a temperature range from -40°C up to +85°C. Supports supply voltages between 1.8 V and 3.6 V for flexible integration.
Capable of measuring pressures from 10 mbar up to 1100 mbar with maximum overload up to 10 bar. Includes a 24-bit digital output via integrated ADC for precise digital pressure and temperature data. Suitable for industrial, laboratory, HVAC, and environmental sensing applications.
Requires no external components, simplifying electronic system design. Explore EnvMart's full catalog of advanced Pressure Sensor ICs and semiconductor sensors by TE Connectivity for precise and reliable sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure pressures from 10 mbar up to 1100 mbar.
It provides an accuracy of ±1.5 mbar for precise measurements.
The sensor operates over a temperature range from -40°C to +85°C.
It includes a 24-bit digital output via an integrated ADC for accurate pressure and temperature data.
It supports supply voltages between 1.8 V and 3.6 V, allowing for flexible integration into various systems.
The sensor has a height of 5 mm, a length of 3 mm, and a width of 950 μm.
This model is designed for surface mounting with an 8-pin QFN package format.
No, it requires no external components, simplifying the electronic system design.
The maximum overload pressure capability of the sensor is 10 bar.
It is suitable for applications such as industrial, laboratory, HVAC, and environmental sensing.
This model can be easily interfaced with microcontrollers via I2C or SPI interfaces.
The country of origin for this sensor is India.
