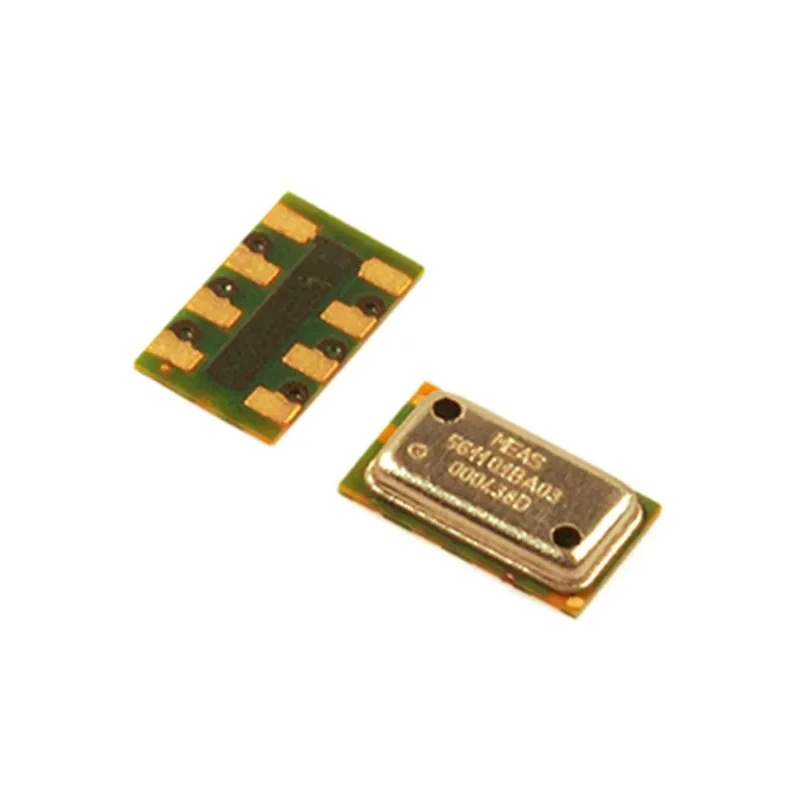

TE Connectivity Barometric Pressure Sensor Surface Mount 8-Pin QFN MS560702BA03-50
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1.5 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 1200 mbar |
| Height | 950μm |
| Length | 3mm |
| Model | MS560702BA03-50 |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MS560702BA03-50 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 10mbar |
| Maximum Overload Pressure | 6bar |
Key Features
- This sensor supports Surface mount with 8-pin QFN package for compact integration.
- It operates from a minimum supply voltage of 1.8V up to a maximum of 3.6V.
- Accuracy is ±1.5 mbar with a maximum operating pressure of 1200 mbar and maximum overload pressure of 6 bar.
- Temperature operating range spans from -40°C minimum to 85°C maximum for wide environmental adaptability.
- Integrated digital pressure sensor with low hysteresis ensures high stability and repeatability.
- No external components required as the internal oscillator is built-in.
- Output interfaces include I2C and SPI compatible digital communication.
- Designed for applications such as altimeters, bike computers, barometers, and data loggers.
Product Description
TE Connectivity MS560702BA03-50 is a high-resolution barometric pressure sensor designed for precise absolute pressure measurements with ultra-low power 24-bit ΔΣ ADC and internal factory calibration.
This 8-pin QFN package sensor supports surface mounting, making it ideal for compact, space-constrained electronics integration.
It operates over supply voltages ranging from 1.8V to 3.6V and measures pressure up to 1200 mbar with ±1.5 mbar accuracy. The sensor withstands overload pressures up to 6 bar and maintains stable operation between -40°C and 85°C.
The device offers an integrated digital interface via I2C and SPI, eliminating the need for programming internal registers and additional external components like oscillators.
Its low hysteresis and high signal stability provide reliable pressure and temperature sensing suitable for industrial, laboratory, environmental monitoring, HVAC, manufacturing, and mobile applications.
Typical applications include altimeters, bike computers, barometer systems, and data logging devices, where precision and reliability are paramount. This sensor supports surface mounting with 8-pin QFN packaging for compact size.
It operates at low voltage with high accuracy and integrated calibration. The digital output interfaces ensure easy integration with microcontrollers without programming requirements. The sensor's compact dimensions and low power consumption suit mobile and portable device integration.
Environmentally robust for temperature ranges from -40°C to 85°C with high stability and low hysteresis. Eliminates need for additional external circuitry with built-in oscillator and factory calibration. Ideal for various industrial and environmental sensing applications needing precise barometric pressure data.
Explore the full range of Pressure Sensor ICs and sensor solutions in the Electronics & Electricals category at EnvMart for comprehensive industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this sensor is ±1.5 mbar.
The maximum operating pressure is 1200 mbar.
It operates within a temperature range of -40°C to 85°C.
The sensor operates with a supply voltage ranging from 1.8V to 3.6V.
It supports I2C and SPI compatible digital communication interfaces.
This model features an 8-pin configuration.
The sensor comes in a QFN package type.
The minimum operating pressure is 10 mbar.
No, it does not require any external components as it has a built-in oscillator.
It is suitable for applications such as altimeters, bike computers, barometers, and data loggers.
The maximum overload pressure is 6 bar.
The country of origin for this sensor is India.
