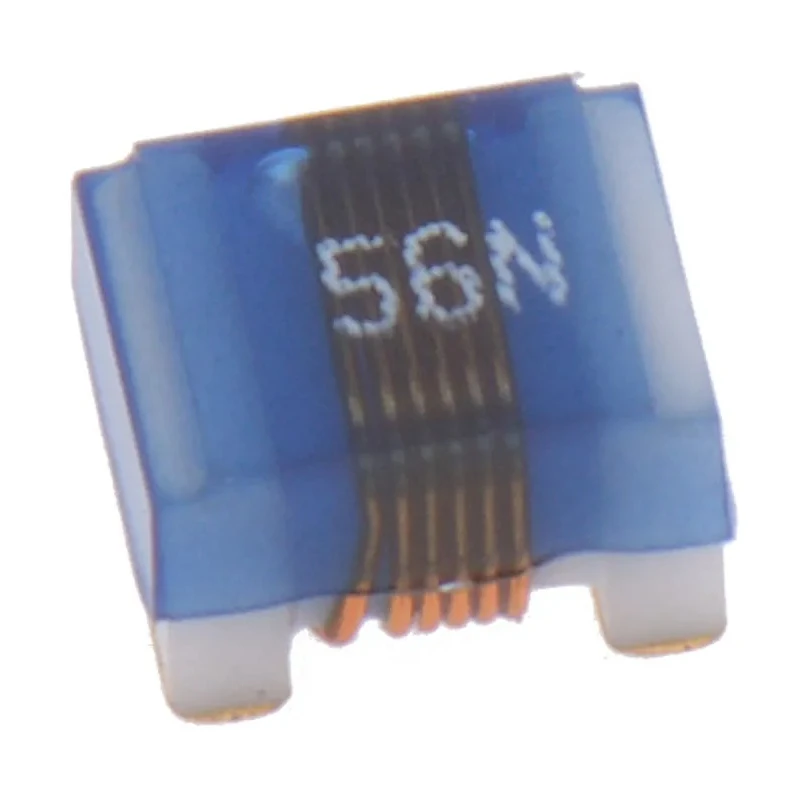

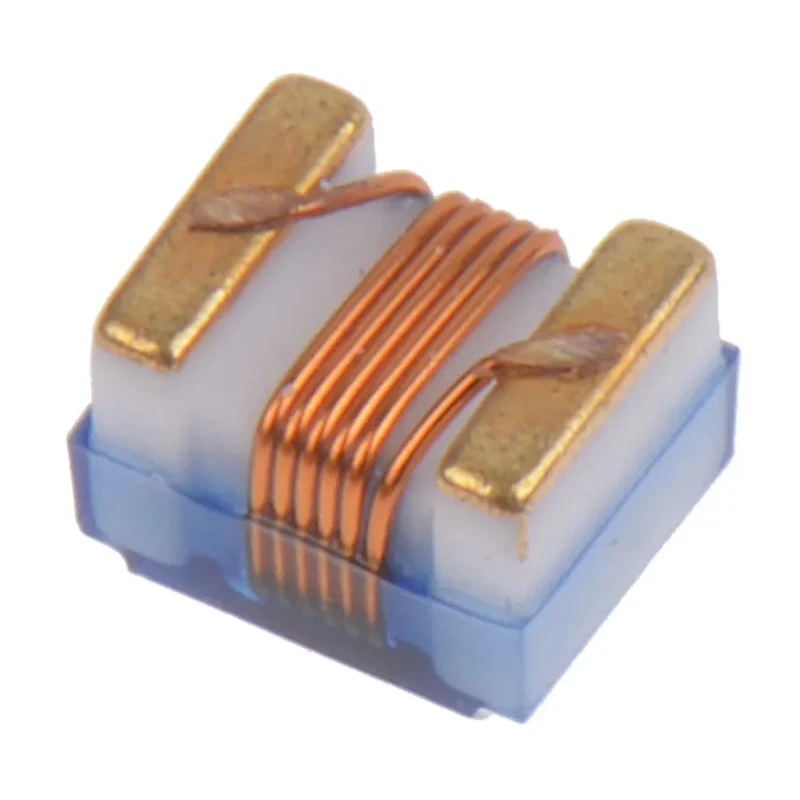

Wurth Elektronik WE-KI 1008A Shielded Wirewound Surface Mount Inductor Ceramic Core 0.056 μH 1 A IDC Q60 744762156A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762156A |
| Depth | 2mm |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.056μH |
| Standards/Approvals | RoHS |
| Package/Case | 1008A |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 120mΩ |
| Maximum Self Resonant Frequency | 1.35GHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
Key Features
- Designed for high frequency applications with excellent Q factor of 60.
- Features a ceramic core enhancing thermal stability.
- Compact 1008A package size with dimensions 2.5 mm x 1.6 mm x 2 mm.
- Supports a maximum DC resistance of 120 mΩ for efficient operation.
- Operating temperature range from -40°C to 125°C.
- Shielded construction reduces electromagnetic interference.
- Maximum self-resonant frequency up to 1.35 GHz suitable for RF applications.
- Ideal for wireless LAN, Bluetooth, and RF transceiver communications.
Product Description
Wurth Elektronik 744762156A WE-KI series wirewound surface mount inductor features a ceramic core with an inductance of 0.056 μH and supports a maximum DC current of 1 A. This shielded inductor is constructed in a compact 1008A package measuring 2.5 mm length, 1.6 mm height, and 2 mm depth, designed for high frequency use with a minimum quality factor (Q) of 60 and maximum self-resonant frequency of 1.35 GHz.
The ceramic core material provides excellent thermal stability and durability, allowing for reliable operation within a temperature range of -40°C to 125°C. The low maximum DC resistance of 120 mΩ minimizes losses enhancing power efficiency in electronic circuits.
Wurth Elektronik's WE-KI inductors are optimized for high-frequency applications such as wireless LAN, Bluetooth devices, and RF transceiver/communication circuits. Their shielded design effectively reduces electromagnetic interference, making them suitable for compact and sensitive electronics requiring stable inductance.
These inductors comply with RoHS directives ensuring they meet environmental and safety standards. Reflow soldering is the recommended assembly process for these surface mount devices to guarantee optimal mounting quality.
High Q factor for efficient inductance performance. Ceramic core for enhanced thermal and mechanical stability. Compact 1008A package for space-constrained applications. Shielded wirewound construction to minimize EMI. Wide operating temperature range for diverse environments.
RoHS compliant offering eco-friendly manufacturing standards. Manufactured in Malaysia ensuring consistent quality.
This wirewound surface mount inductor is a reliable component choice for industrial electronics, telecommunications, wireless devices, and other advanced technical applications requiring high frequency performance and durability. Explore more Wurth Elektronik components and related Surface Mount Inductors on EnvMart for your PCB and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 0.056 μH.
The maximum DC current supported by this inductor is 1 A.
The dimensions of the 1008A package are 2.5 mm in length, 1.6 mm in height, and 2 mm in depth.
The maximum self-resonant frequency is up to 1.35 GHz, making it suitable for RF applications.
It operates within a temperature range of -40°C to 125°C.
The maximum DC resistance is 120 mΩ, which helps minimize losses during operation.
This inductor features a ceramic core that enhances thermal stability.
It is optimized for high-frequency applications such as wireless LAN, Bluetooth, and RF transceiver communications.
The minimum quality factor (Q) is 60, indicating efficient inductance performance.
Yes, this inductor complies with RoHS directives, ensuring it meets environmental and safety standards.
It features a wirewound construction that is shielded to reduce electromagnetic interference.
This inductor is manufactured in Malaysia, ensuring consistent quality.
