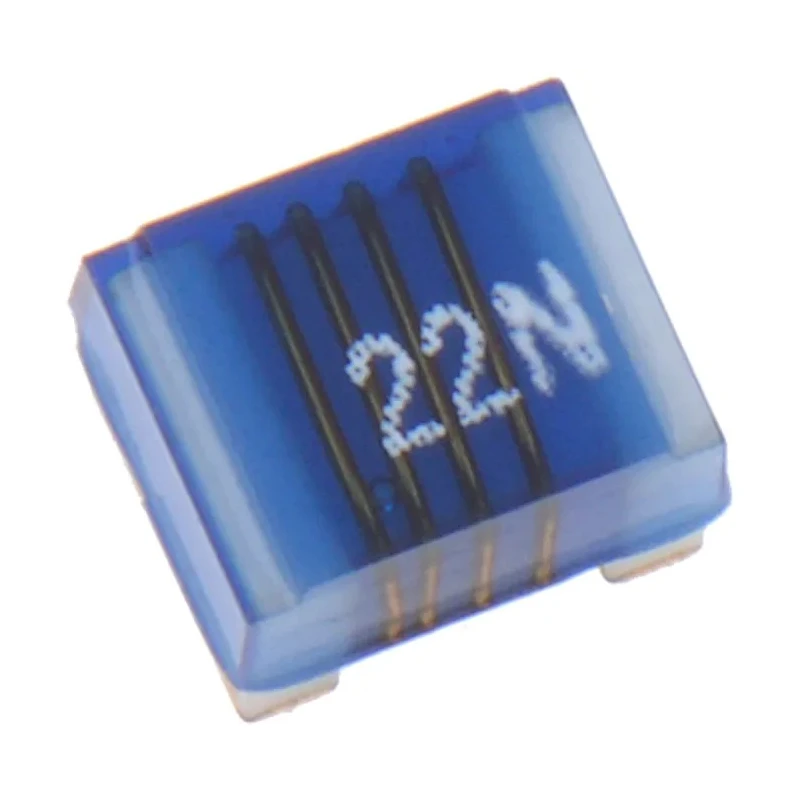

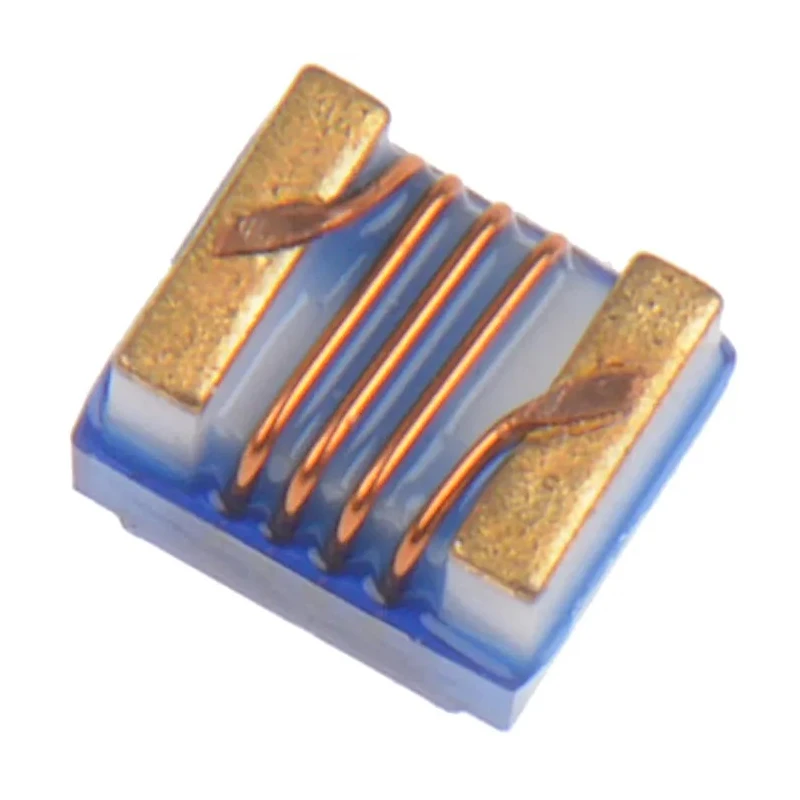

Wurth Elektronik WE-KI 1008A Shielded Wirewound Surface Mount Inductor with Ceramic Core 0.022μH ±5% 1A IDC Q60 744762122A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762122A |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.022μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1008A |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.5GHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 1008A package/case with 2-pin surface mount termination.
- High self-resonant frequency of 2.5 GHz suitable for high frequency applications.
- Robust ceramic core construction with wirewound inductors for excellent thermal stability.
- Compliant with RoHS and REACH standards, ensuring environmental compliance.
- Designed for automotive applications meeting AEC-Q200 standards.
- Operates reliably between -40°C and 125°C.
- Available in tape and reel packaging, ideal for automated manufacturing processes.
- Typical maximum DC resistance of 100 mΩ for efficient performance.
Product Description
Wurth Elektronik 744762122A WE-KI 1008A shielded wirewound surface mount inductor with ceramic core features an inductance of 0.022μH ±5% tolerance, supporting a maximum DC current of 1 A and a minimum quality factor of 60, making it suitable for high frequency electronic applications.
This inductor is manufactured using a ceramic core and wirewound construction to assure excellent thermal stability and reliable performance at frequencies up to 2.5 GHz. The compact 1008A package with dimensions of 2.5 mm length, 1.6 mm height, and 2 mm depth supports small, densely packed circuit designs.
The product is compliant with automotive industry standard AEC-Q200, making it suitable for automotive electronic assemblies. It operates efficiently within a temperature range of -40°C to 125°C. It also meets RoHS and REACH standards, ensuring it is free from harmful substances.
Packaging is supplied as tape and reel, facilitating automated surface mount technology (SMT) placement in manufacturing environments. This inductor is ideal for wireless communication, RF transceiver circuits, Bluetooth, and WLAN applications where stable inductance and high Q-factor are critical.
Compact 1008A package surface mount design. Ceramic core wirewound construction for stability. High operating frequency up to 2.5 GHz. Compliance with automotive AEC-Q200 and environmental standards. Temperature range from -40°C to 125°C for reliable operation.
Tape and reel packaging for efficient assembly. Low DC resistance of 100 mΩ for improved efficiency. High quality factor ensures minimal signal loss. Made in Malaysia ensuring quality manufacturing.
Explore more Surface Mount Inductors from Wurth Elektronik at EnvMart, your source for quality electronic components for industrial, automotive, communications, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 0.022μH with a tolerance of ±5%.
It supports a maximum DC current of 1A.
The dimensions are 2.5 mm in length, 1.6 mm in height, and 2 mm in depth.
The maximum self-resonant frequency is 2.5 GHz, making it suitable for high-frequency applications.
The minimum quality factor is 60, which helps ensure minimal signal loss.
It operates reliably between -40°C and 125°C.
It is compliant with RoHS and REACH standards, as well as the automotive AEC-Q200 standard.
The core material is ceramic, which contributes to its thermal stability.
It is packaged in tape and reel format, facilitating automated surface mount technology (SMT) placement.
The typical maximum DC resistance is 100 mΩ, which enhances its efficiency.
It features a surface mount termination style with a 2-pin configuration.
The inductor is manufactured in Malaysia.
