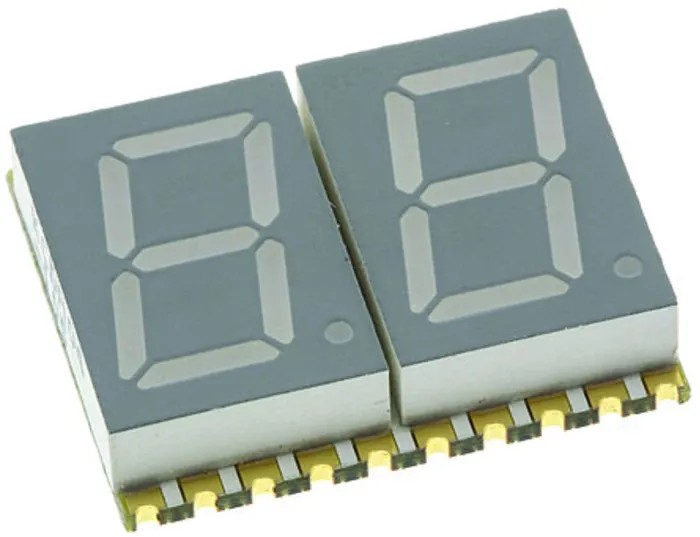

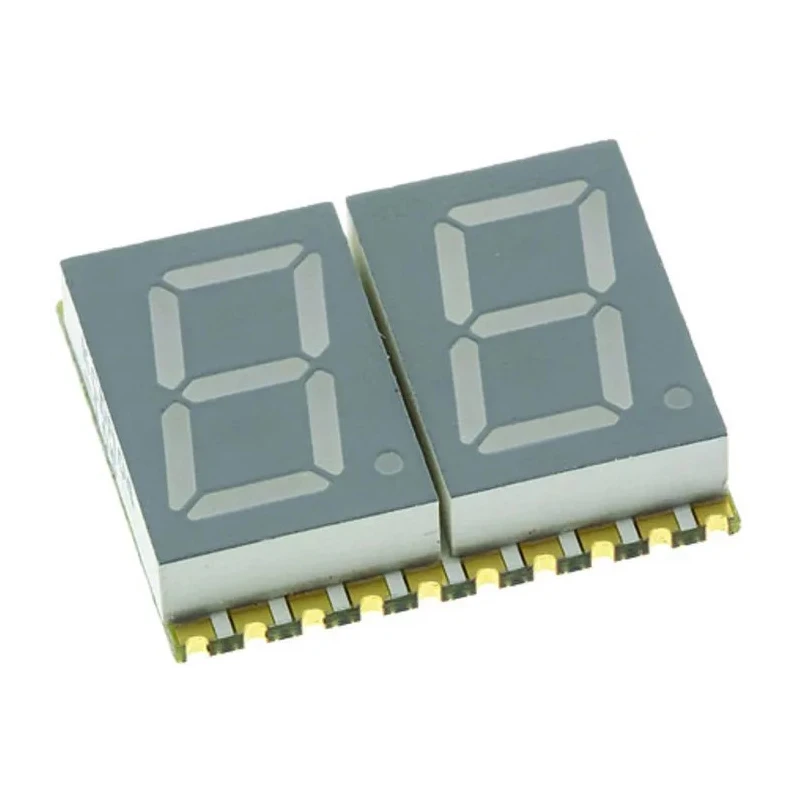

Kingbright 2 Digit 7 Segment LED Display Anode Green 11mcd Right Side 10.2 mm KCDA04-123
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDA04-123 |
| Mount Type | Surface |
| Series | KCDA04 |
| Character height | 10.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 18.5mm |
| External Depth | 15mm |
| External Height | 3.8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 11mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 5.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The display consists of two characters with 7 segments each, suitable for various electronic display applications.
- It features a common anode connection type with surface mount design for easy PCB integration.
- The character size measures 5.6 mm width and 10.2 mm height, ensuring clear readability.
- Operating temperature ranges from -40°C to 85°C, making it suitable for harsh environments.
- It has a forward voltage of 2.1V and power dissipation of 75mW, ensuring efficient power consumption.
- The luminous green color has a dominant wavelength of 570nm with a grey face and white segments for excellent contrast.
- Designed for mechanical robustness and compliant with RoHS standards.
- Ideal for industrial, electronic instrumentation, and display module applications.
Product Description
Kingbright KCDA04-123 is a high-quality 2 Digit 7 Segment LED Display designed for precise numeric representation in electronic display modules. Featuring green LEDs with an 11mcd luminous intensity and a grey face with white segments, it offers excellent visibility and contrast for clear readings in various lighting conditions.
The display includes two characters, each composed of 7 segments, and uses a common anode configuration, allowing straightforward wiring and control. The right-side decimal point orientation enhances readability for decimal numeric data.
With character dimensions of 5.6 mm width and 10.2 mm height, and an external dimension of 18.5 mm width, 3.8 mm height, and 15 mm depth, this surface mount display integrates seamlessly on printed circuit boards, facilitating efficient assembly in electronic manufacturing.
The Kingbright KCDA04-123 operates reliably across a temperature range from -40°C to 85°C and is rated for a forward voltage of 2.1V with a power dissipation of 75mW, providing efficient luminous output without excessive power consumption. Its rated forward current is 30mA.
This display is mechanically rugged and RoHS compliant, meeting environmental and safety standards. Its robust features make it suitable for industrial automation, instrumentation panels, electronic measurement devices, and general purpose LED numeric display applications.
The display has a luminous intensity of 11mcd for clear readability. It employs a common anode connection type suitable for various driver configurations. The surface mount type enables easy PCB mounting and soldering. Operating temperature suitability from -40°C to 85°C ensures durability in hostile environments.
Ideal for applications such as electronic instrumentation, industrial displays, and measurement systems. The product origin is China, ensuring manufacturing quality and standards. The grey face color with white segments enhances readability and visual appeal.
Its compact size and reliable performance support integration in electronic devices. Explore more electronic components and LED displays on EnvMart to enhance your projects with high-performance modules like this Kingbright 7 Segment LED Display.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This model has a forward voltage of 2.1V.
Each character in this display consists of 7 segments.
The luminous intensity of this display is 11mcd.
The external dimensions are 18.5 mm in width, 15 mm in depth, and 3.8 mm in height.
It uses a common anode connection type.
The character height is 10.2 mm.
The power dissipation for this display is rated at 75mW.
The operating temperature range is from -40°C to 85°C.
The LEDs in this display are green, with a dominant wavelength of 570nm.
The decimal point orientation is on the right side.
Yes, it is RoHS compliant.
