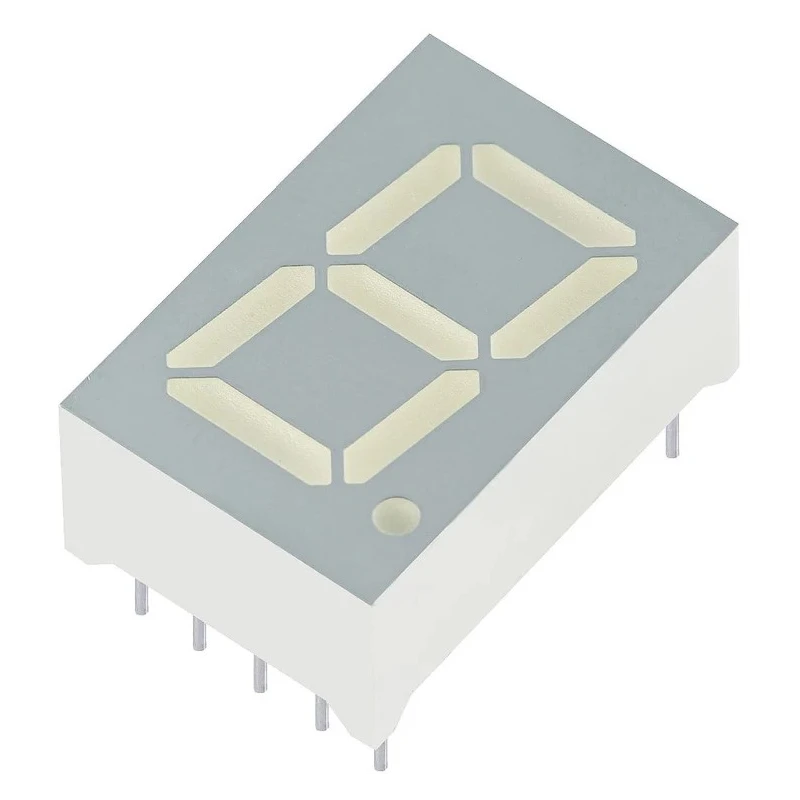

Kingbright 1-Digit 7 Segment Red LED Display Cathode 2V 97mcd 14.2mm SC56-21SURKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC56-21SURKWA |
| Mount Type | Through Hole |
| Series | SC56 |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 19.1mm |
| External Depth | 12.7mm |
| External Height | 8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 97mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display has an 8mm character width and 14.2mm character height.
- It operates with a forward voltage of 2 volts and a forward current of 30 milliamperes.
- The luminous intensity is rated at 97 millicandelas for bright visibility.
- Designed with a grey face and white segments for excellent contrast and clarity.
- The mount type is through hole, suitable for PCB insertion.
- Operating temperature ranges from -40°C to 85°C for robust performance.
- This RoHS-compliant LED display is part of the SC56 series and made in China.
Product Description
Kingbright SC56-21SURKWA is a 1-digit, 7 segment LED display designed for electronic components and display modules where clear numeric display is essential. This red cathode LED provides excellent visibility with a luminous intensity of 97 millicandelas and a dominant wavelength of 630 nm, ensuring bright and clear digit presentation.
The character height of 14.2 mm and width of 8 mm make this display ideal for small to medium-sized electronic devices. Featuring a grey face with white segments, the display offers high contrast against various backgrounds for ease of reading.
This component uses a common cathode configuration and supports a forward voltage of 2 volts with a typical forward current of 30 mA, optimized for low power consumption with a power dissipation of 75 milliwatts. The decimal point is oriented on the right side, facilitating numerical precision in applications.
Manufactured with through-hole mount type, the display is suitable for easy assembly onto printed circuit boards. It operates reliably in a temperature range from -40°C to 85°C, making it suitable for industrial, laboratory, and general electronic applications.
The LED display measures 19.1 mm in external width, 8 mm in height, and 12.7 mm in depth, compact enough for various equipment designs. It complies with RoHS standards, ensuring environmentally safe manufacturing and usage.
The display features 7 segments plus a right-side decimal point for numeric representation. It is mechanically rugged and categorized for luminous intensity, ensuring durability and consistent brightness. This product is commonly used in instrumentation, measurement devices, control panels, and electronic displays across multiple industries.
Kingbright SC56-21SURKWA combines performance, durability, and compliance, making it a reliable choice for LED numeric display needs. Explore more LED Display solutions in our Electronics Components section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display operates with a forward voltage of 2 volts and a forward current of 30 milliamperes.
It has a luminous intensity rated at 97 millicandelas, providing bright visibility for clear digit presentation.
The external dimensions are 19.1 mm in width, 12.7 mm in depth, and 8 mm in height, with a character height of 14.2 mm and a character width of 8 mm.
It operates reliably in a temperature range from -40°C to 85°C, suitable for various environments.
This model features a through-hole mount type, making it suitable for easy assembly onto printed circuit boards.
The dominant wavelength is 630 nm, which contributes to its red color appearance.
It features 7 segments plus a right-side decimal point for numeric representation.
Yes, this model complies with RoHS standards, ensuring environmentally safe manufacturing and usage.
This display is commonly used in instrumentation, measurement devices, control panels, and electronic displays across multiple industries.
The power dissipation for this model is rated at 75 milliwatts, optimized for low power consumption.
The display has a grey face with white segments, providing excellent contrast and clarity for readability.
This model is designed to show 1 character, making it suitable for applications requiring simple numeric display.
