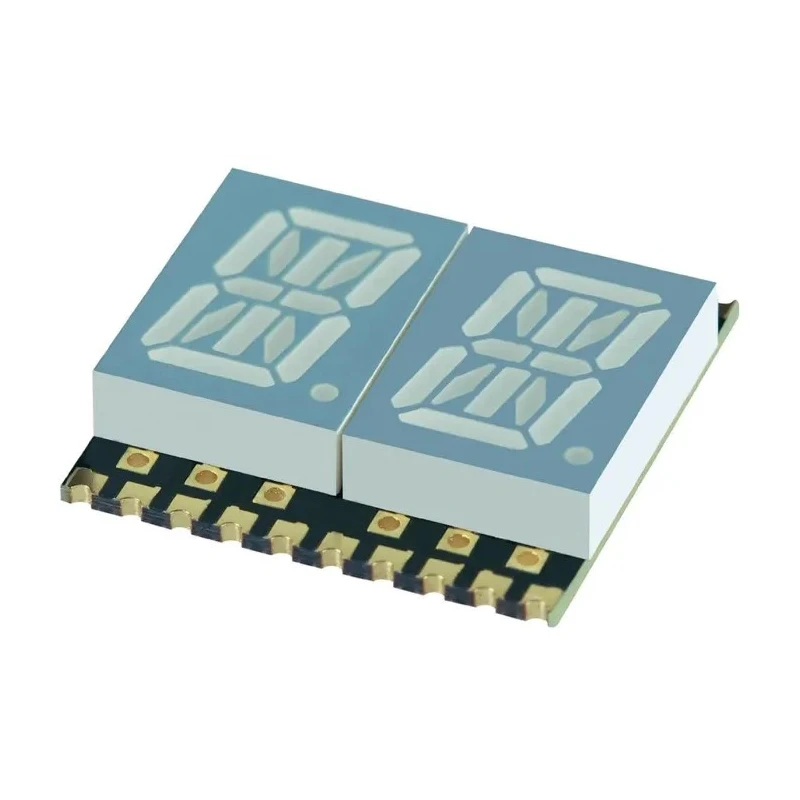

Kingbright 2-Character 14 Segment Surface Mount Cathode Green LED Display 10.2mm KCPDC04-123

Kingbright KCPDC04-123 is a 2-character 14 segment LED display designed for detailed alphanumeric electronic displays in various applications. Each character measures 10.2 mm in height with 6 mm width, providing clear, readable output in a compact footprint.

This surface mounted device features a cathode common connection with green LED segments emitting light at a dominant wavelength of 570 nm. The high luminous intensity of 11 mcd ensures the display is bright and easily visible under various lighting conditions.

Power consumption is minimized with a forward voltage of 2.1V and power dissipation rating of 75mW. It supports forward current of 30 mA, suitable for low-level signal circuits in automation, instrumentation, and industrial control systems.

The device is mechanically rugged with a grey face module enhancing contrast and durability. Dimensions include external depth of 19 mm, height of 3.8 mm, and width of 18.8 mm, making it suitable for integration into compact modules and equipment.

Operational temperature range from -40°C to 85°C allows use in diverse environments, from industrial automation to laboratory instrumentation. Decimal orientation is right side aligned optimizing numeric data presentation.

The display supports alphanumeric characters ideal for electronic instrumentation and embedded control panels. Broad compatibility with other displays in the KCPDC04 series expands design flexibility. RoHS compliant and manufactured in China according to industry standards.

This LED display module suits industrial, manufacturing, and commercial electronic applications requiring reliable and clear numeric and letter displays. Explore more in our Electronics Components section for compatible LED Displays and modules to enhance your projects and systems.
