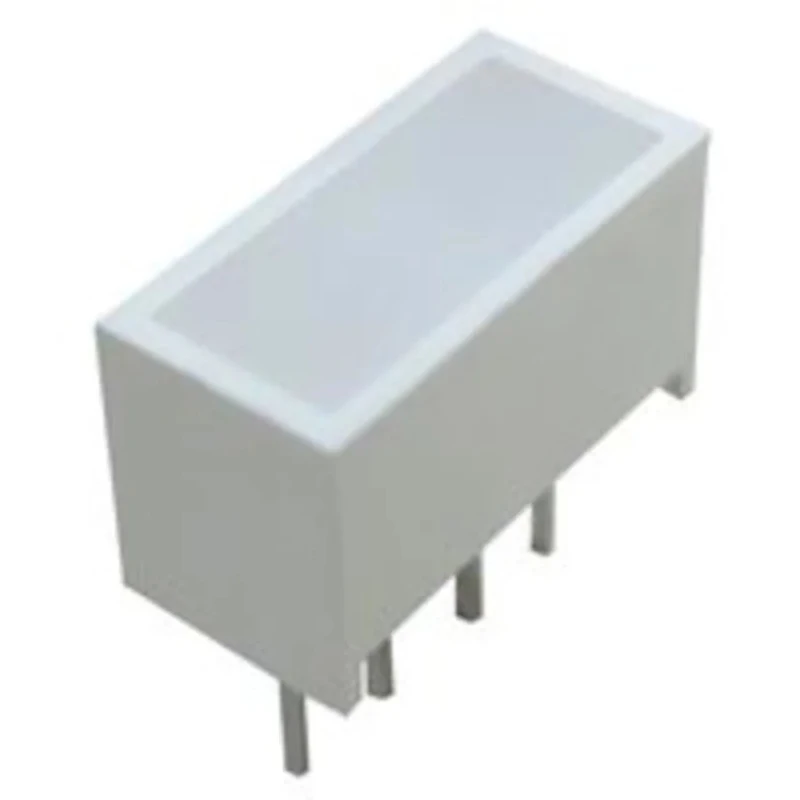

Kingbright Light Bar LED Display Anode Red 230mcd KB-A100SURKW

Kingbright KB-A100SURKW Light Bar LED Display Anode Red 230mcd is a precision LED component designed for effective status indication and display applications in electronic devices. This through hole mounted single-segment light bar emits a bright red light at a dominant wavelength of 630nm with a luminous intensity of 230mcd, making it highly visible for instrumentation and control panel use.

The device measures 9.9mm wide, 6.1mm high, and 4.9mm deep, enabling compact and efficient circuit board integration. It operates with a forward voltage of 2V and maximum forward current of 30mA, consuming power at 75mW, thus suitable for battery operated or low-power systems.

Designed to perform reliably over a wide temperature range of -40°C to 85°C, it is appropriate for industrial, commercial, and consumer electronic applications where durability and stability are paramount. The white face color enhances the perception of the red light, offering clear and distinct status signaling.

This LED display component complies with CIE127-2007 standards, ensuring uniformity and quality suitable for various instrumentation and display needs. Its sturdy through hole mounting ensures robust mechanical connection and easy assembly on printed circuit boards in manufacturing and repair.

The LED emits red light with a dominant wavelength of 630nm, providing excellent color visibility. The single segment design ensures uniform light distribution for clear indication. This display operates with a forward voltage of 2V and forward current of 30mA for efficient power consumption.

Compact dimensions include 9.9mm width, 6.1mm height, and 4.9mm depth for easy PCB integration. Designed to operate reliably within temperature ranges from -40°C to 85°C. Features a white-colored face to enhance light contrast and visibility.

The light bar adheres to CIE127-2007 standards, ensuring performance consistency. Power dissipation is rated at 75mW, suitable for low-power electronics applications.

This component is ideally suited for use in industrial automation, instrumentation panels, communication devices, consumer electronics, and embedded systems requiring reliable and visible status indication. Explore the Kingbright range on EnvMart for more high-quality LED Display solutions.
