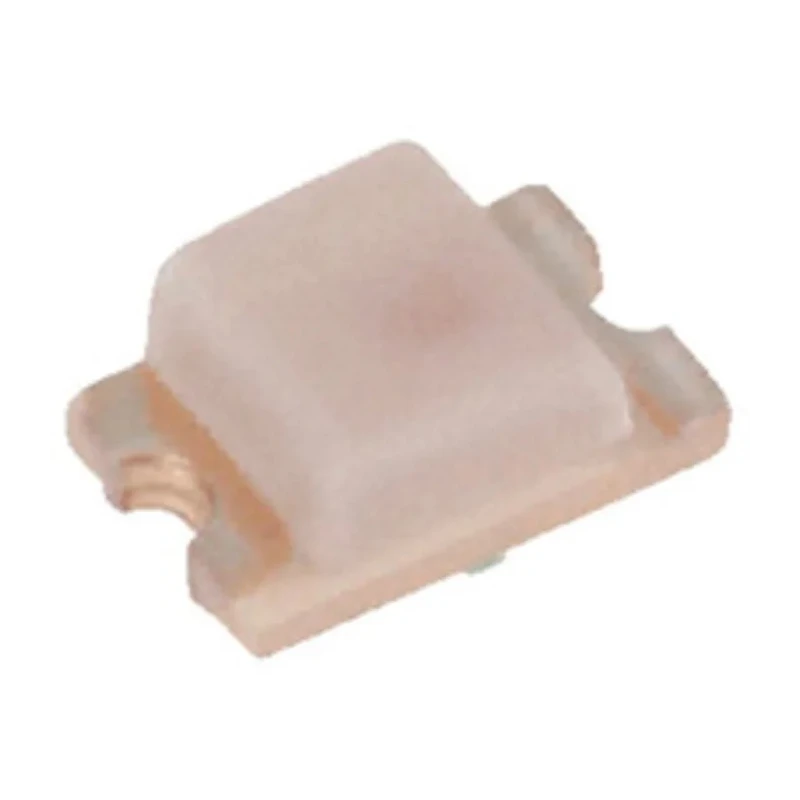

Broadcom 2.6 V Red LED 0603 Surface Chip LED HSMZ-C190

Broadcom HSMZ-C190 is a 2.6 V Red LED in an industry-standard 0603 surface mount chip package measuring 1.6 x 0.8 x 0.8 mm. It offers a luminous flux of 122 lm and LED luminosity of 45 mcd with a wide viewing angle of 170 degrees. This compact rectangular LED features a clear lens and diffused optics designed for keypad backlighting, push-button illumination, LCD backlighting, symbol backlighting, and front panel indicators. The device operates reliably within a temperature range from -40°C to +85°C and supports a maximum forward current of 25 mA with a power dissipation up to 60 mW.

This chip LED series is RoHS compliant, providing conformity to environmental standards. The HSMZ-C190 is supplied in tape and reel packaging, facilitating efficient automated insertion processes in electronics manufacturing. Its compact footprint makes it compatible with surface mount technology applications in various industrial, commercial, and consumer electronic designs requiring high-brightness red indicator LEDs.

Typical applications include industrial control panels, automotive dashboard indicators, consumer electronic devices, and instrumentation displays where visibility and reliability in compact form factors are critical.

Compact 0603 chip LED size with rectangular lens. High brightness red emission with dominant wavelength of 631 nm. Wide application range including backlights and indicators. Energy-efficient operation with low forward voltage and power dissipation.

RoHS certified for environmental safety compliance. Suitable for automated mounting with tape and reel packaging.
