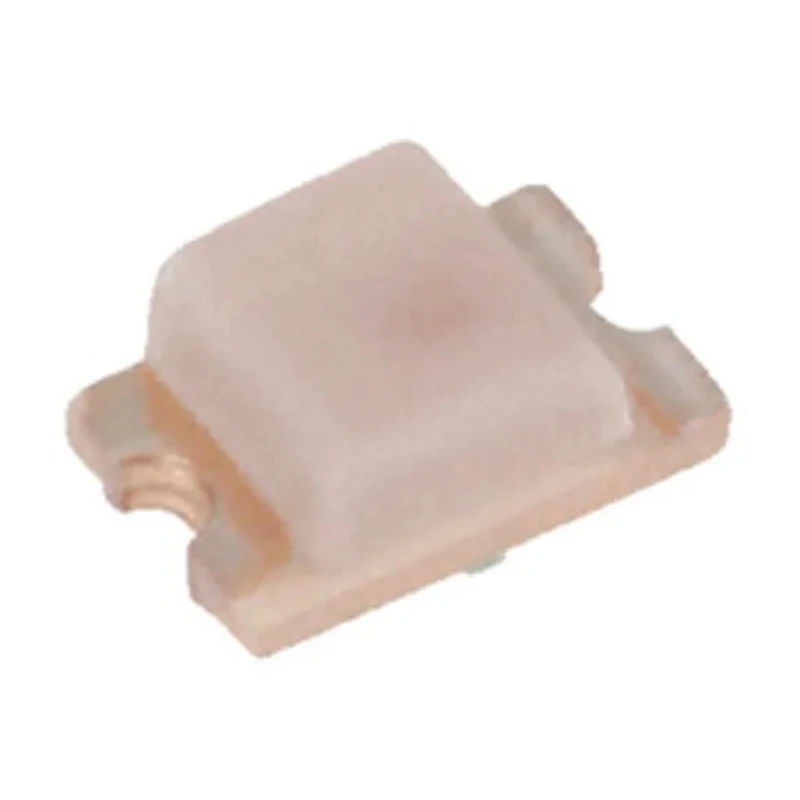

Broadcom 2.6 V Red LED 0603 Surface Chip LED HSMZ-C190

Broadcom HSMZ-C190 2.6 V Red LED 0603 Surface Chip LED offers compact and efficient illumination suited for a range of electronic applications. With an industry-standard 1.6 x 0.8 mm footprint and 0.8 mm profile, this surface mount device facilitates seamless PCB assembly.

Designed for keypad backlighting, push-button illumination, LCD backlighting, symbol backlighting, and front panel indicators, the HSMZ-C190 delivers consistent performance in various industrial and commercial settings.

The LED features a high forward current capability of 25 mA, maximum power dissipation of 60 mW, and a luminous flux of 122 lumens paired with a luminosity of 45 mcd, enabling bright and efficient light output. The wide 170-degree viewing angle ensures broad light dispersion, enhancing visibility in panel and indicator applications.

The clear rectangular lens with a dominant wavelength of 631 nm provides a vivid red colour output. The device is RoHS compliant and functions reliably across a temperature range from -40°C to +85°C, ensuring long-term durability and performance.

Packaging on tape and reel supports high-volume automated insertion, boosting production efficiency for manufacturing and assembly lines. Compact industry-standard 0603 package measuring 1.6 x 0.8 x 0.8 mm. Surface mount technology ideal for modern electronics manufacturing.

Maximum forward current of 25 mA ensures robust brightness. Wide viewing angle of 170 degrees for expansive illumination. Clear lens shape with dominant wavelength at 631 nm for optimized red output. High luminous flux and luminosity for visibility in applications.

RoHS compliance guarantees environmental friendliness. Operating temperature range from -40°C to +85°C for versatile usage.

This chip LED is suitable for industrial, electronics manufacturing, commercial, and control panel backlighting applications. It meets stringent quality and environmental standards, making it a reliable choice for high-performance optoelectronic projects.
