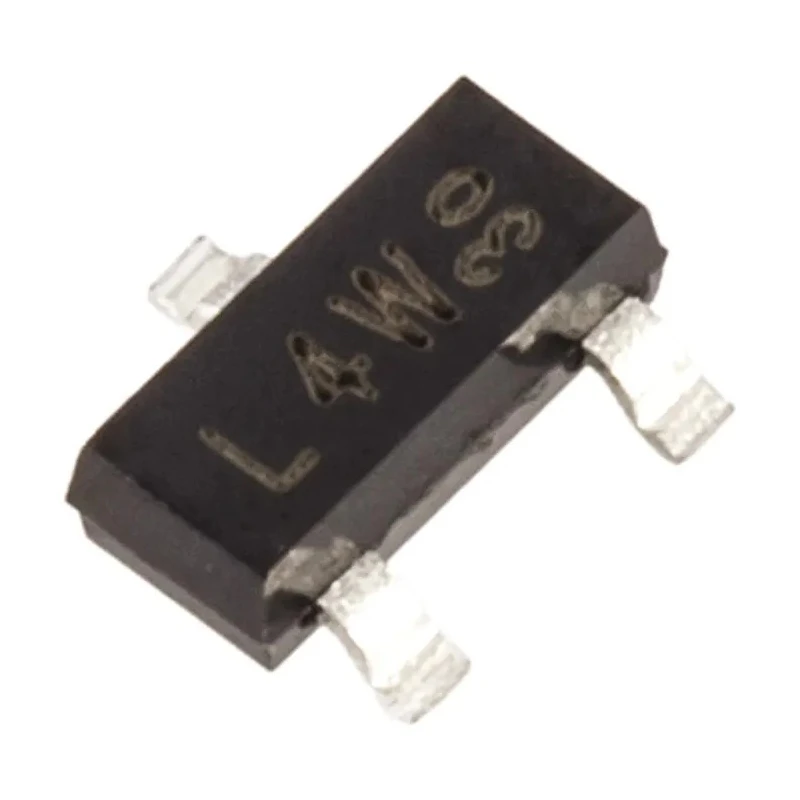

Nexperia Schottky Diode 70 V 70 mA Surface Mount SOT-23 Package BAS70,215

Nexperia BAS70,215 is a Schottky Diode designed with a maximum continuous forward current of 70 mA and peak reverse voltage of 70 V in an ultra-compact 3-pin SOT-23 surface mount package. This device is ideal for applications requiring low forward voltage drop, high efficiency, and fast switching.

The diode operates efficiently up to 150°C, covering a wide temperature range from -65°C, making it suitable for use in automotive and industrial electronic circuits. The low leakage current and negligible power switching losses make it especially beneficial in power management and signal detection circuits.

The physical dimensions of the diode are compact, measuring 3 mm in length, 1.4 mm in width, and 1.1 mm in height, allowing for space-saving PCB designs. The device meets the automotive AEC-Q101 standard, ensuring high reliability and quality.

This Schottky diode is used widely in power rectification, voltage clamping, and protection circuits in sectors including industrial control, automotive electronics, telecommunications, and consumer electronics.

Maximum continuous forward current of 70 mA for reliable performance. Peak reverse repetitive voltage rating of 70 V suitable for various electronic applications. Compact and ultra-small SOT-23 package with 3 pins for surface mount technology.

High efficiency Schottky barrier diode optimized for low power switching losses. Wide operating temperature range from -65°C to 150°C for harsh environments. Low capacitance contributing to high switching speed. Peak reverse current of 100 nA ensuring minimal leakage.

Automotive standard qualified (AEC-Q101) for quality assurance. Dimensions approximately 3 mm length, 1.4 mm width, and 1.1 mm height.

Nexperia Schottky diodes are trusted components in semiconductor selections for power management and signal integrity optimization. Explore more in the Schottky Diodes & Rectifiers category on EnvMart.
