| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | BAS70,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | BAS70 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100mA |
| Maximum Forward Voltage Vf | 750mV |

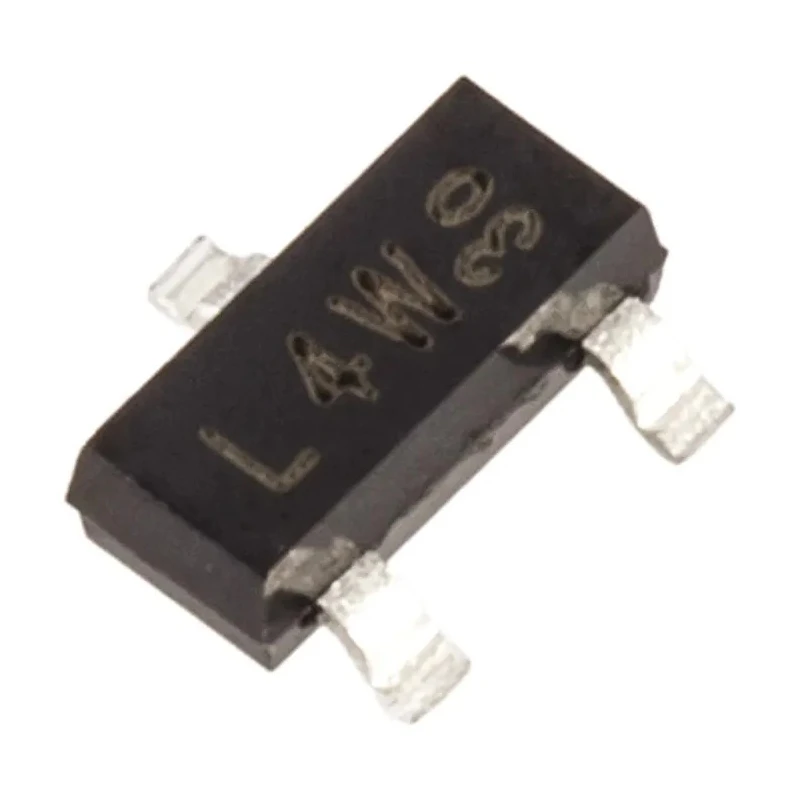

Nexperia BAS70,215 is a Schottky Barrier Diode designed for high efficiency and reliability in electronic circuits. This diode supports a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage of 70 V, housed in a compact 3-pin SOT-23 surface-mount package measuring 3 mm by 1.4 mm by 1.1 mm. It features a low forward voltage drop of 750 mV which minimizes power losses and improves energy efficiency in rectification applications.
The diode operates reliably over a broad temperature range from -65°C to 150°C, making it suitable for harsh industrial and automotive environments. Additionally, it meets the automotive industry standard AEC-Q101, ensuring high-quality and dependable performance. Low leakage current and peak reverse current of only 100 nA contribute to efficient circuit operation. The device can also withstand a peak non-repetitive forward surge current of 100 mA, enhancing its durability under transient conditions.
These characteristics make the Nexperia BAS70,215 ideal for use in power management, voltage clamping, and fast switching applications within automotive electronics, industrial machinery, telecommunications, and consumer electronics. Its ultra-small, low-profile package supports automated surface mount assembly and space-constrained PCB designs.
Maximum continuous forward current of 70 mA ensures stable performance. Peak reverse repetitive voltage of 70 V supports robust blocking capacity. Low forward voltage drop of 750 mV enables efficient rectification. Wide operating temperature range from -65°C to 150°C for versatility.
Complies with automotive standard AEC-Q101 for reliability. Compact SOT-23 package dimensions: 3 mm length, 1.4 mm width, 1.1 mm height. Low leakage current with peak reverse current at 100 nA. Supports peak non-repetitive forward surge current of 100 mA.
