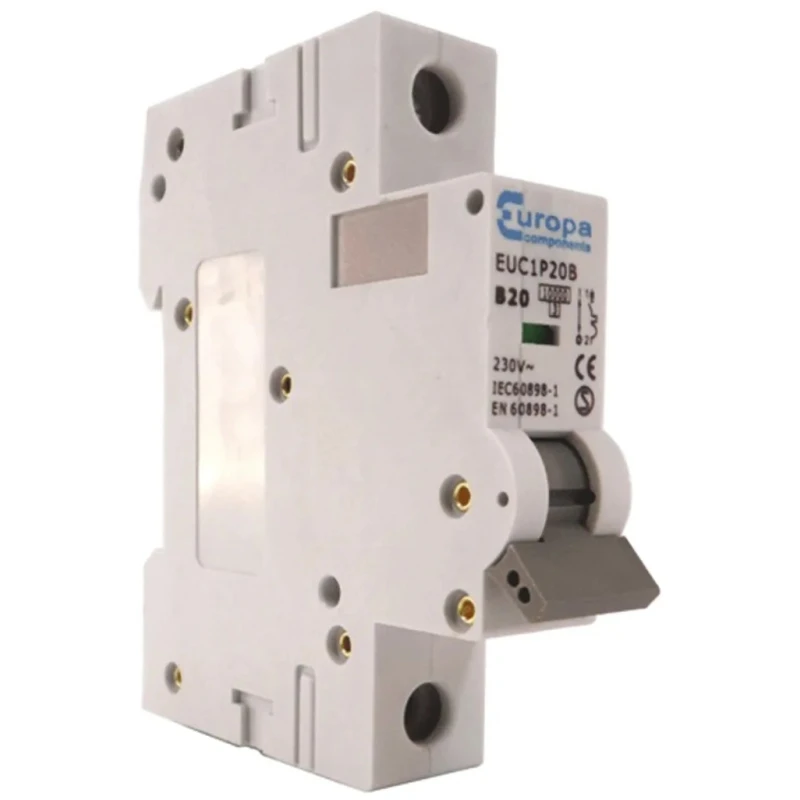

Europa Miniature Circuit Breaker 1-Pole 25A Type B 400V AC 10 kA Breaking Capacity EUC1P

Free Delivery in India | Lowest Global Shipping Charges

Europa Miniature Circuit Breaker 1-Pole 25A Type B 400V AC 10 kA Breaking Capacity EUC1P

Name: Europa Miniature Circuit Breaker 1-Pole 25A Type B 400V AC 10 kA Breaking Capacity EUC1P
Brand: Europa
SKU: 381799
Price: 10.66 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Europa Condition New

Specifications

Country of Origin	China
Range	EUC1P
Brand	Europa
Height	18mm
Model	EUC1P
Depth	87mm
IP Rating	IP20
Width	78mm
Mount Type	DIN Rail
Current Rating	25A
Terminal Capacity	1mm2 to 25mm2
Series	EUC1P
Terminal type	Tunnel
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	IEC 60898, CE, EN 60898, SEMKO
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Reset Actuator Type	Toggle Switch

Key Features

Rated for 400V AC voltage for industrial and commercial applications.
Breaking capacity of 10 kA ensures safe interruption of fault currents.
Mounts easily on 35mm DIN Rail with tunnel type terminals.
Compact dimensions with width 78mm, height 18mm, and depth 87mm for efficient panel installation.
IP20 rating protects against solid objects and provides basic safety.
Reset actuator is a toggle switch for quick manual operation.
Terminal capacity supports conductor sizes from 1 mm² to 25 mm².
Complies with IEC 60898, EN 60898 standards and approved by CE and SEMKO.

Product Description

Europa EUC1P miniature circuit breaker model EUC1P25B is a high-quality 1-pole 25A Type B MCB engineered for effective overload and short circuit protection in 400V AC electrical systems. It features a robust breaking capacity of 10 kA, ensuring the interruption of fault currents safely and reliably in residential, commercial, and light industrial environments.

This circuit breaker is designed for mounting on a standard 35mm DIN Rail and includes tunnel-type terminals that accommodate wire sizes ranging from 1 mm² to 25 mm². Its compact form factor with a width of 78mm, depth of 87mm, and height of 18mm facilitates space-saving installation in consumer units and distribution boards. The IP20 ingress protection provides basic protection against solid foreign objects.

The device incorporates a toggle switch reset actuator, enabling rapid manual reset after tripping. It fully complies with international standards IEC 60898 and EN 60898 and holds CE and SEMKO certifications, signaling adherence to stringent safety and performance criteria. The product originates from China.

Rated voltage: 400V AC suitable for a wide range of electrical applications. Breaking capacity: 10 kA for high fault current interruption capability. Tripping characteristic: Type B for sensitivity to common domestic and light commercial loads.

Mount type: DIN Rail for industry-standard mounting solutions. Terminal capacity: 1 mm² to 25 mm² for versatile wiring options. Compact dimensions: 78mm (W) x 18mm (H) x 87mm (D). IP rating: IP20 for solid particle protection.

This Miniature Circuit Breaker is suitable for installation in homes, office buildings, and light industrial settings, offering dependable electrical protection to prevent damage to wiring and connected devices from overloads and short circuits. Its robust construction and compliance with global standards ensure safe and repeatable operation.

Choose Europa EUC1P MCB for reliable circuit protection with easy installation and maintenance. Explore more electrical protection devices and circuit breakers in the Electronics & Electricals category on EnvMart.
