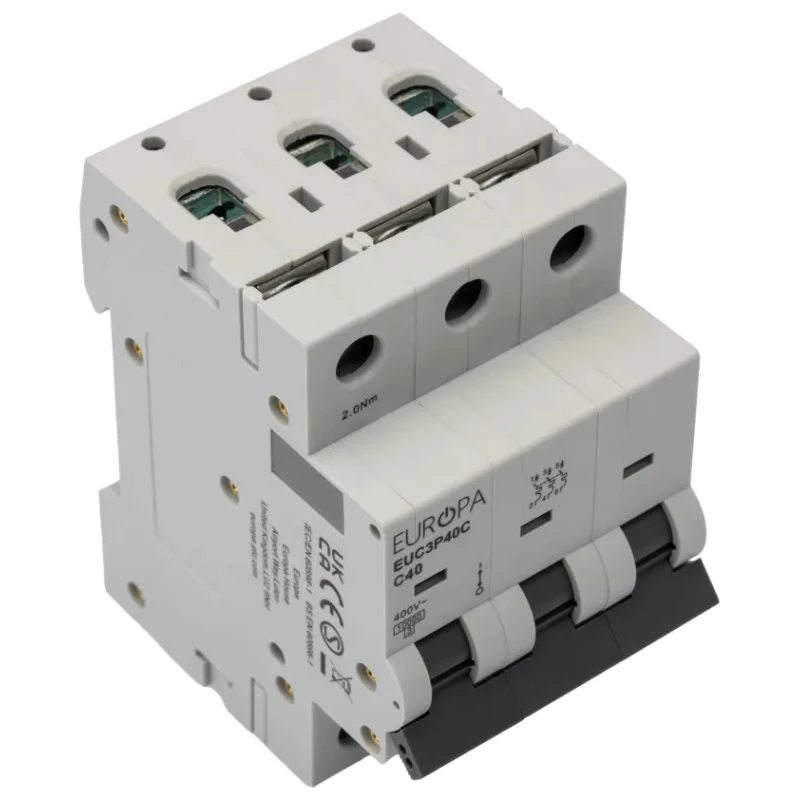

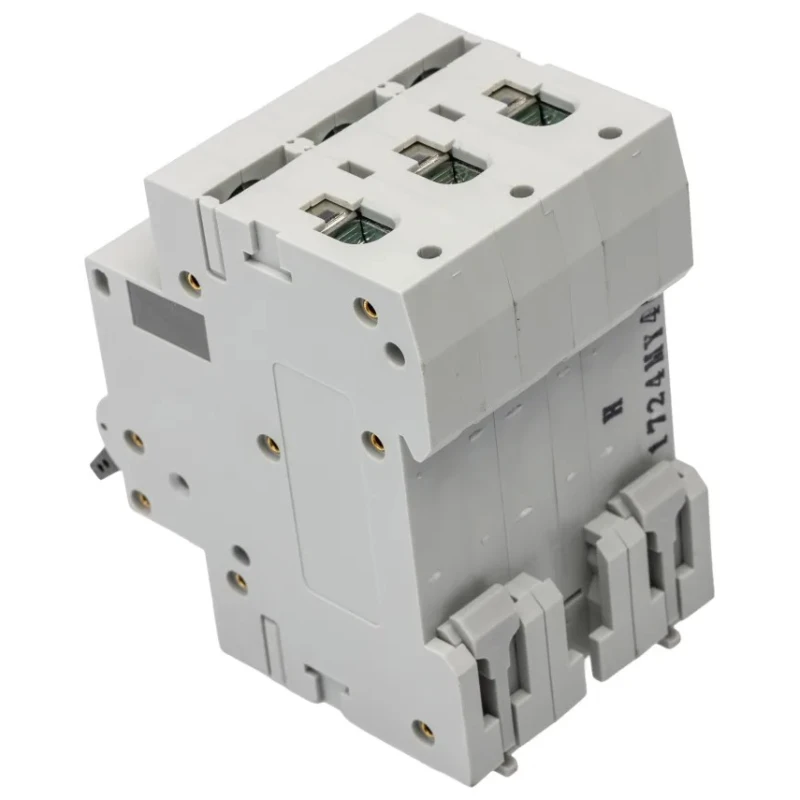

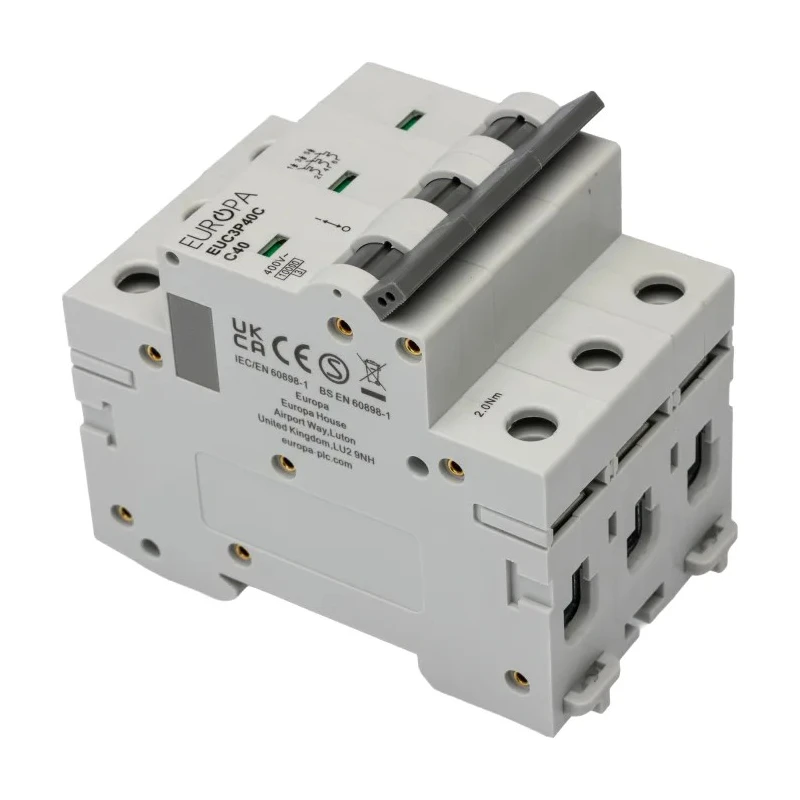

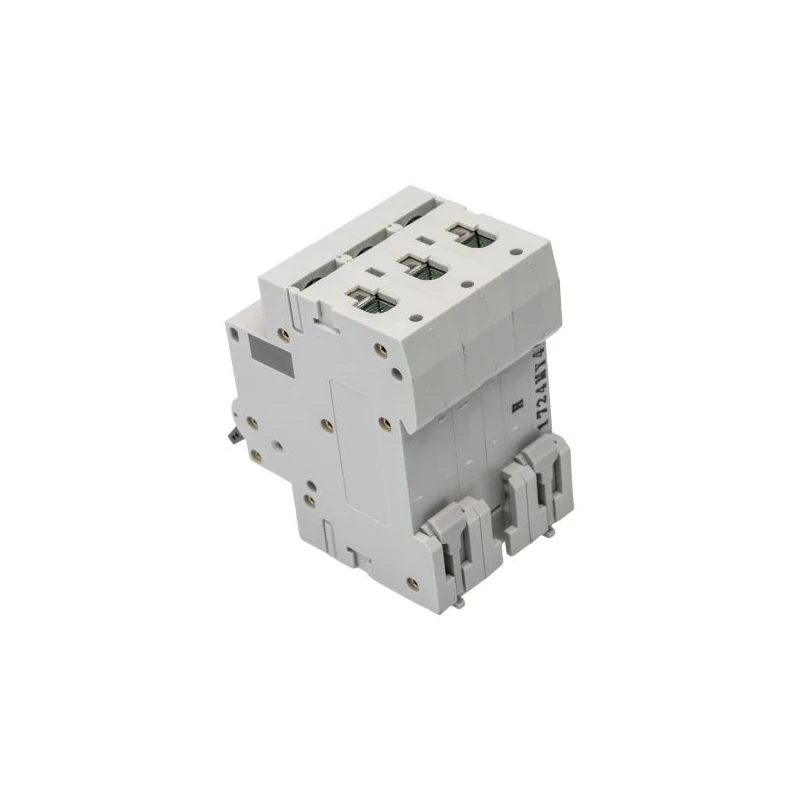

Europa 3-Pole Miniature Circuit Breaker Type C 40A 400V AC 10 kA Breaking Capacity EUC3P
Specifications
| Country of Origin | China |
|---|---|
| Range | EUC3P |
| Brand | Europa |
| Height | 54mm |
| Model | EUC3P |
| Depth | 87mm |
| IP Rating | IP20 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Terminal Capacity | 1mm2 to 25mm2 |
| Series | EUC3P |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | SEMKO, IEC 60898, EN 60898, CE |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Reset Actuator Type | Toggle Switch |
Key Features
- Suitable for mounting on 35mm DIN rails for ease of installation.
- Incorporates a toggle switch reset actuator for manual control.
- Features tunnel type terminals suitable for conductor sizes 1mm² to 25mm².
- Compact dimensions of 78mm width, 54mm height, and 87mm depth with IP20 protection rating.
- Complies with IEC 60898 and EN 60898 standards, certified by CE and SEMKO.
- Operates reliably within an ambient temperature range of -5° to 40°C.
- Designed for use in electrical consumer units to provide circuit protection and safety.
Product Description
Europa EUC3P40C is a high-quality miniature circuit breaker designed for industrial and commercial electrical protection applications. This 3-pole device is rated for 40 amperes with a type C tripping characteristic, suitable for moderate surge currents typical in lighting and small motor loads. Its rated AC voltage is 400 volts, providing robust performance for low-voltage power circuits.
The circuit breaker offers a breaking capacity of 10 kA, ensuring reliable interruption of fault currents to maintain system and user safety. Mounting is facilitated via a standard 35mm DIN rail, making installation straightforward in distribution boards and consumer units.
The terminal type is tunnel style, accommodating conductor sizes ranging from 1mm² to 25mm², catering to a wide range of wiring requirements. The toggle switch reset actuator allows easy manual operation and resetting after tripping events.
Physical dimensions measure 78mm in width, 54mm in height, and 87mm in depth, with an IP20 ingress protection rating, suitable for interior electrical environments. The breaker operates reliably within ambient temperatures from -5 to 40 degrees Celsius, providing resilience under typical indoor conditions.
Certifications include adherence to IEC 60898 and EN 60898 standards, with approvals from CE and SEMKO, ensuring compliance with international safety and quality norms.
This miniature circuit breaker is ideal for installation in electrical panels where circuit protection, safety, and compliance are essential. It is widely used in residential, commercial, and light industrial electrical distribution systems.
Suitable for mounting on 35mm DIN rails for ease of installation. Incorporates a toggle switch reset actuator for manual control. Features tunnel type terminals suitable for conductor sizes 1mm² to 25mm². Compact dimensions of 78mm width, 54mm height, and 87mm depth with IP20 protection rating.
Complies with IEC 60898 and EN 60898 standards, certified by CE and SEMKO. Operates reliably within an ambient temperature range of -5° to 40°C. Designed for use in electrical consumer units to provide circuit protection and safety.
Explore more Miniature Circuit Breakers and related circuit protection devices on EnvMart to find suitable solutions for your electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A, making it suitable for moderate surge currents typical in lighting and small motor loads.
It has a breaking capacity of 10 kA, ensuring reliable interruption of fault currents.
The rated AC voltage for this unit is 400V AC, providing robust performance for low-voltage power circuits.
The physical dimensions are 78mm in width, 54mm in height, and 87mm in depth.
It features tunnel type terminals that accommodate conductor sizes ranging from 1mm² to 25mm².
This model has an IP20 ingress protection rating, suitable for interior electrical environments.
It has Type C tripping characteristics, suitable for moderate surge currents.
It complies with IEC 60898 and EN 60898 standards and is certified by CE and SEMKO.
It is designed for mounting on standard 35mm DIN rails, facilitating straightforward installation in distribution boards.
The circuit breaker operates reliably within an ambient temperature range of -5°C to 40°C.
It incorporates a toggle switch reset actuator for manual control and easy resetting after tripping events.
It is commonly used in residential, commercial, and light industrial electrical distribution systems for circuit protection and safety.
