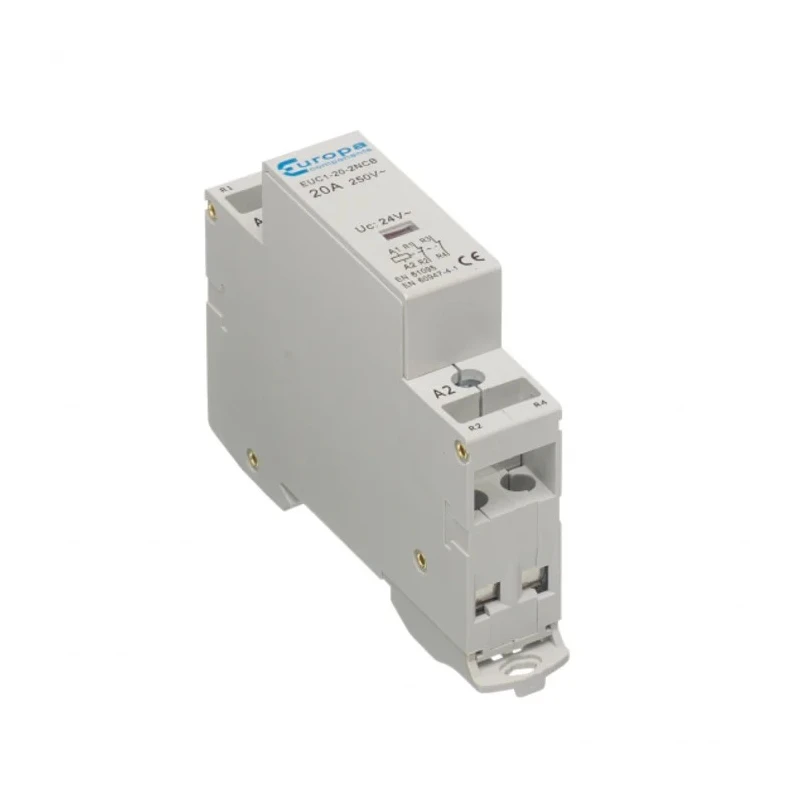

Europa 24V AC Coil 2-Pole Contactor Motor Control 240V AC 20A 4 kW EUC1-20-2NCB

Europa EUC1-20-2NCB 24V AC Coil 2-Pole Contactor is a modular contactor from the EUC1 Series, designed for motor control and suitable for heating, lighting, and building service applications. It supports a contact current of 20A with a power rating of 4 kW at 240V AC, providing reliable switching performance.

This contactor features a 24V AC coil voltage and 2 normally closed (2 NC) contacts, controllable via a screw terminal connection. It is DIN rail mountable on 35mm rails facilitating easy installation in consumer units and three-phase distribution boards.

Operating efficiently within a temperature range of -5°C to 40°C, it ensures stable performance in various industrial and commercial environments. Its compact size - 87.5 mm width, 68 mm depth, and 18 mm length - supports optimized space management in electrical panels.

The EUC1-20-2NCB contactor is compliant with multiple international standards including EAC, CE, CSA, cUL, IEC, and RoHS, reflecting high manufacturing quality and environmental adherence. It carries a DPST pole and throw configuration, featuring 2 auxiliary contacts (1 NC configuration) to support control circuit flexibility.

It accepts main terminal cables up to 10 mm² and coil terminals up to 2.5 mm², allowing compatibility with thicker wiring for heavy-duty applications. This equipment is ideal for industrial, HVAC, motor control, and building automation systems requiring reliable and compact switching solutions.

The contactor operates with a 24V AC coil voltage ensuring efficient energy use. Features a 2 NC (Normally Closed) configuration for reliable switching. Equipped with screw-type terminals for secure electrical connections.

Compatible with 35mm DIN rail mounting for easy installation. Operational temperature range of -5°C to 40°C suits diverse industrial environments. Supports a maximum cable capacity of 10 mm² for main terminals and 2.5 mm² for coil terminals.

Complies with EAC, CE, CSA, cUL, IEC, and RoHS standards for quality and safety. The compact dimensions of 87.5 mm width, 68 mm depth, and 18 mm length optimize space utilization. DPST pole and throw configuration facilitating dual switching circuits.

Made in China with robust construction for long-lasting service.

This modular contactor is suitable for use in industrial, manufacturing, HVAC, and commercial electrical control installations requiring precise motor control and reliable operation. Explore more Contactors and automation components at EnvMart for your technical needs.
