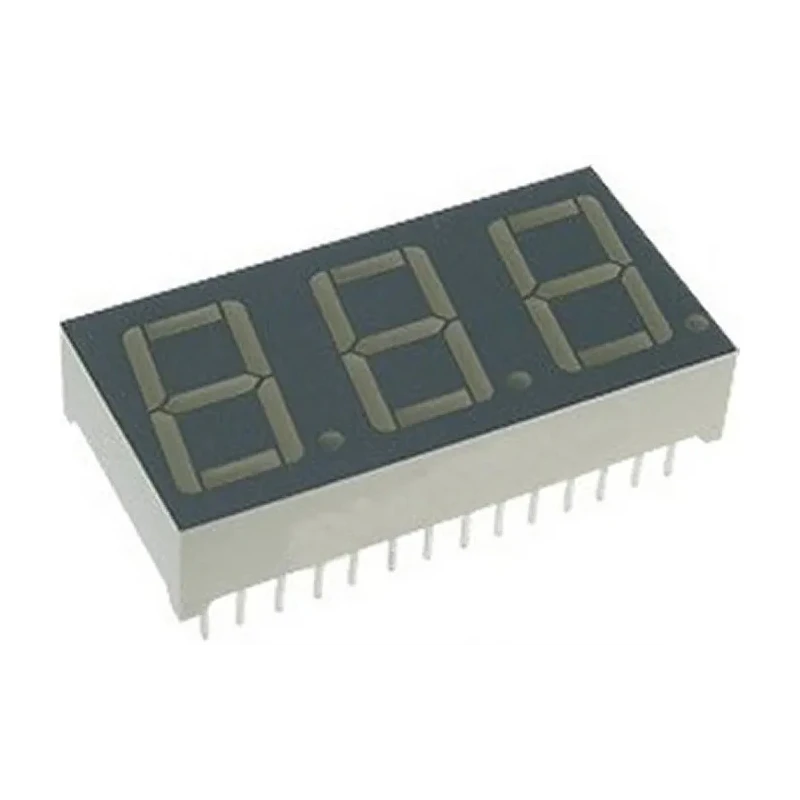

Kingbright 3 Character 7 Segment Cathode LED Display Red 73mcd Right Side Orientation 14.2mm BC56-11SURKWA

Kingbright BC56-11SURKWA is a triple digit 7-segment LED display designed for electronic applications requiring clear numerical output. It features red LEDs with a dominant wavelength of 630nm and a common cathode connection, making it suitable for various industrial and commercial display uses.

The display offers a character width of 8mm and height of 14.2mm, providing excellent character appearance with a grey face and white segments for enhanced contrast and readability. Its right-side decimal orientation and through-hole mounting simplify incorporation into printed circuit boards or sockets.

Engineered for durability, it operates reliably across a temperature range from -40°C to 85°C and offers a luminous intensity of 73mcd categorized for consistent brightness. The forward current rating is 30mA, and power dissipation is capped at 75mW to ensure power efficiency.

This LED display module meets RoHS compliance standards, ensuring environmentally responsible manufacturing. It has external dimensions of 37.6mm width, 19mm height, and 8.1mm depth, making it compact for a variety of equipment and instrumentation panel designs.

Typical industrial applications include instrumentation displays, control panels, and electronic measurement devices where clear numeric readout is mandatory. Its mechanical ruggedness and low current operation make it ideal for demanding environments in manufacturing, laboratory, automation systems, and consumer electronics.

High luminous intensity of 73mcd for excellent visibility. Character dimensions: width 8mm and height 14.2mm for clear digit display. Operating temperature range from -40°C to 85°C for industrial robustness. Power dissipation of 75mW and forward voltage of 2V ensuring efficient operation.

Through hole mount type with grey face and white segments for easy PCB integration. Explore more LED Display modules and components from Kingbright in the EnvMart catalog.
