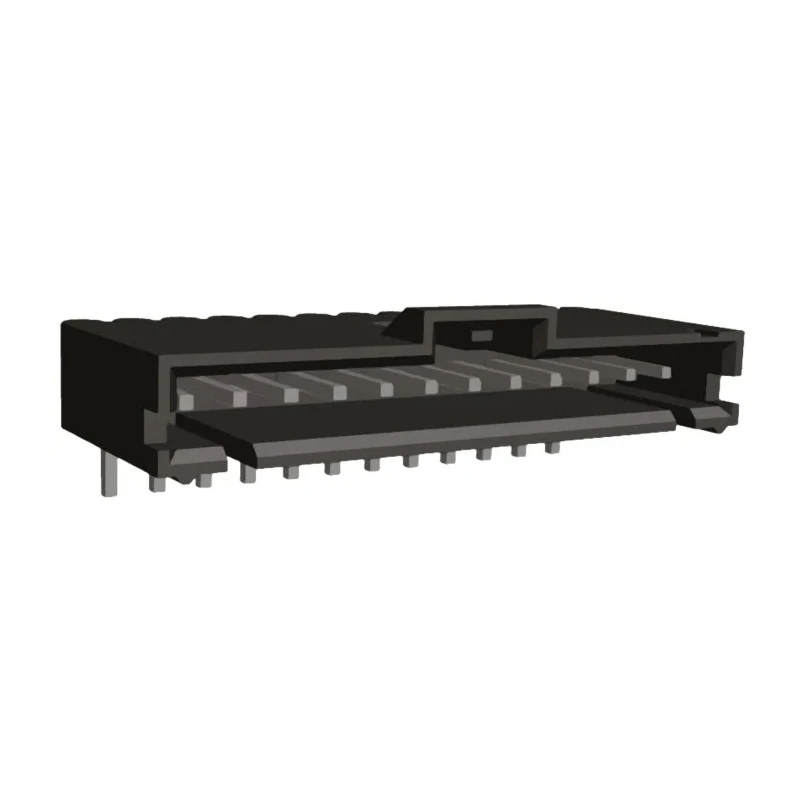

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row 6-103634-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row 6-103634-1

Name: TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row 6-103634-1
Brand: TE Connectivity
SKU: 380633
Price: 3.24 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	AMPMODU MTE
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.3mm
Mating Pin Length	5.84mm

Key Features

Rated for 3A current at 600V voltage.
Constructed with thermoplastic housing and brass contacts plated with tin.
Features a right angle orientation and through hole mount type.
Integral latching mechanism provides secure mating with IDC receptacle connectors.
Operates reliably between -65°C and 105°C temperature range.
Contact gender is male with tail pin length of 3.3 mm and mating pin length of 5.84 mm.
End-to-end stackable design enables flexible assembly.
Suitable for mass termination of wires in electronic and electrical equipment.

Product Description

TE Connectivity 6-103634-1 AMPMODU MTE Series Right Angle Through Hole PCB Header provides a reliable solution with 12 contacts at 2.54 mm pitch, shrouded housing, and single row construction for industrial and electronic applications.

This PCB header is designed for wire-to-board connector needs, featuring a thermoplastic housing and brass contacts plated with tin for durability. The right angle orientation and through hole mount type ensure secure and stable PCB connection.

The connector supports a current rating of 3A and a voltage rating of 600V, with operating temperatures ranging from -65°C to 105°C, making it suitable for demanding environments. Rated for 3A current at 600V voltage. Constructed with thermoplastic housing and brass contacts plated with tin.

Features a right angle orientation and through hole mount type. Integral latching mechanism provides secure mating with IDC receptacle connectors. Operates reliably between -65°C and 105°C temperature range. Contact gender is male with tail pin length of 3.3 mm and mating pin length of 5.84 mm.

End-to-end stackable design enables flexible assembly. Suitable for mass termination of wires in electronic and electrical equipment. Applications include computers, telecommunications, printers, appliances, instrumentation, medical, and automotive controls.

This AMPMODU MTE connector system utilizes insulation displacement contact (IDC) technology, allowing easy one-step assembly without wire stripping. It is widely used in industrial, laboratory, telecommunications, manufacturing, automotive, and commercial equipment for efficient wire termination and connection reliability.

The integral latching system ensures secure mating with IDC receptacles, with versions available that have hold-downs to secure the header on the PCB. The end-to-end stackable feature enables formation of larger multi-contact connectors depending on application needs.
