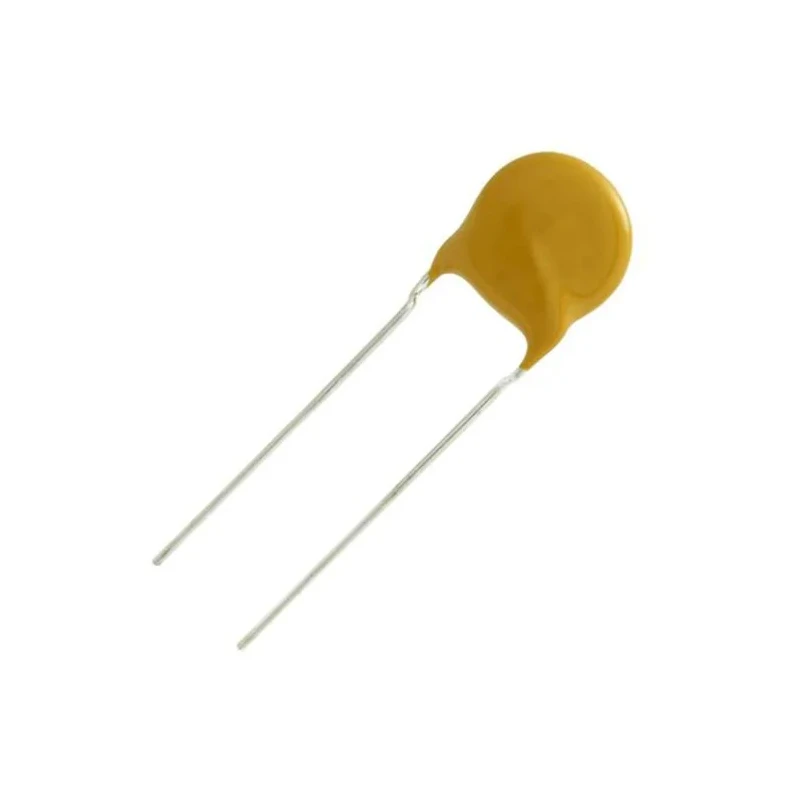

Vishay Single Layer Ceramic Capacitor 6.8 pF 1kV dc ±5 % C0G Dielectric Through Hole Radial 561R10TCCV68

Vishay 561R10TCCV68 is a high-reliability single layer ceramic capacitor designed for precise electronic applications requiring stable capacitance and high voltage tolerance. Featuring a capacitance of 6.8 pF with a tolerance of ±5 %, this capacitor utilizes a C0G dielectric material which ensures minimal variation across temperature and frequency ranges, making it ideal for high-frequency and timing circuits.

This 561R series capacitor comes in a disc package case with a diameter of 6.4 mm and width of 4 mm, mounted via through hole radial pins ensuring secure PCB mounting and excellent mechanical stability. It operates efficiently across a wide temperature range of -55°C to 105°C, suitable for harsh industrial environments while maintaining a low dissipation factor of 0.1 % for efficient energy use.

Compliant with RoHS and IEC 60068-2-45 standards, the Vishay 561R10TCCV68 ensures environmental safety and reliable performance under mechanical stress. Its 2-pin radial terminal design supports versatile circuit integration, delivering stable performance in power supply filtering, signal processing, and timing circuits in industrial, manufacturing, and electronic device applications.

High precision capacitance with ±5 % tolerance and 6.8 pF value. C0G dielectric provides temperature and frequency stability. Through hole radial mount type ensures robust PCB connection. Disc package with compact 6.4 mm diameter and 4 mm width.

Wide operating temperature range from -55°C to 105°C. Low dissipation factor of 0.1% reduces energy loss. Complies with RoHS and IEC 60068-2-45 for quality and safety. 561R series known for durability and reliability in electronics.

This single layer ceramic capacitor is optimal for use in industrial electronics, power supply circuits, communication equipment, and precision measurement devices requiring stable and durable capacitive elements.
