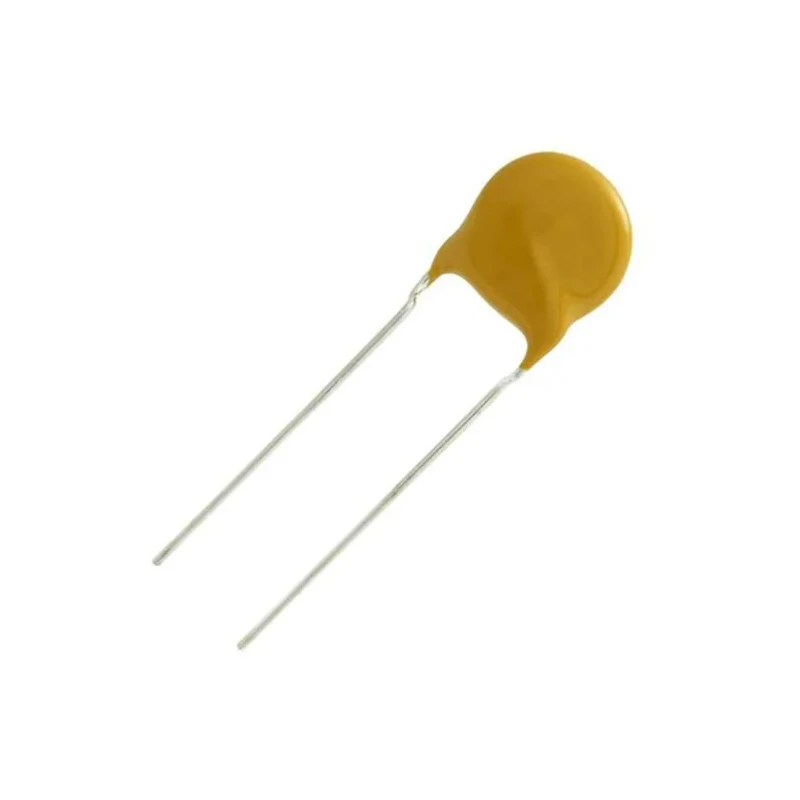

Vishay Single Layer Ceramic Capacitor 2.2 pF 1kV DC ±5% C0K (P100) Dielectric Through Hole Radial Terminal 561R10TCCV22
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV dc |
| Diameter | 6.4mm |
| Brand | Vishay |
| Model | 561R10TCCV22 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 561R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 2.2pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.1% |
| Pin Count | 2 |
| Dielectric | C0K (P100) |
| Suppression Class | Class I |
Key Features
- Features a C0K (P100) dielectric material ensuring high stability and low loss.
- Capacitance tolerance is ±5% for precision applications.
- Through hole mount type with radial terminal design.
- Maximum operating temperature up to 105°C supports demanding environments.
- Complies with RoHS and international standards IEC 61249-2-21 and 2002/95/EC.
- Diameter of 6.4 mm and width of 4 mm, suitable for various PCB layouts.
- Packaged in tape and reel for automated assembly processes.
- Dissipation factor is low at 0.1% for efficient performance.
Product Description
Vishay 561R10TCCV22 is a high-quality Single Layer Ceramic Capacitor designed for electronic circuits requiring stable capacitance and high voltage rating.
This capacitor has a capacitance of 2.2 pF with ±5% tolerance, making it suitable for precision filtering and timing applications. The C0K (P100) dielectric offers excellent performance stability across temperature and frequency ranges, complying with Class I suppression standards.
The component is through hole mounted with radial terminals, allowing robust soldering on printed circuit boards. It features a maximum operating temperature of 105°C, enabling use in industrial, automotive, and commercial electronics environments.
Dimensionally, the capacitor has a diameter of 6.4 mm and a width of 4 mm. It is supplied on tape and reel packaging to facilitate automated assembly in manufacturing lines.
Additional compliance includes RoHS conformity and adherence to IEC 61249-2-21 standard, ensuring environmentally safe and reliable operation. The dissipation factor is maintained at 0.1%, minimizing energy losses during use.
Features a C0K (P100) dielectric material ensuring high stability and low loss. Capacitance tolerance is ±5% for precision applications. Through hole mount type with radial terminal design. Maximum operating temperature up to 105°C supports demanding environments.
Complies with RoHS and international standards IEC 61249-2-21 and 2002/95/EC. Diameter of 6.4 mm and width of 4 mm, suitable for various PCB layouts. Packaged in tape and reel for automated assembly processes. Dissipation factor is low at 0.1% for efficient performance.
Pin count is 2, designed for through-hole soldering.
This Vishay capacitor series 561R is suitable for industrial electronics, laboratory equipment, telecommunications, and other applications requiring reliable passive components with stable capacitance and high voltage rating.
Explore the wide range of Single Layer Ceramic Capacitors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 2.2 pF with a tolerance of ±5%.
The maximum operating temperature for this capacitor is 105°C.
It features a C0K (P100) dielectric material, which ensures high stability and low loss.
The dissipation factor is low at 0.1%, which helps minimize energy losses during operation.
This capacitor has a pin count of 2, designed for through-hole soldering.
The capacitor has a diameter of 6.4 mm and a width of 4 mm, making it suitable for various PCB layouts.
It supports through-hole mounting with radial terminals for robust soldering on printed circuit boards.
It is packaged in tape and reel, facilitating automated assembly processes.
The capacitor operates within a temperature range of -55°C to 105°C.
Yes, it complies with RoHS and international standards IEC 61249-2-21 and 2002/95/EC.
This capacitor is suitable for industrial electronics, laboratory equipment, telecommunications, and other applications requiring stable capacitance and high voltage rating.
The voltage rating for this model is 1kV DC.
