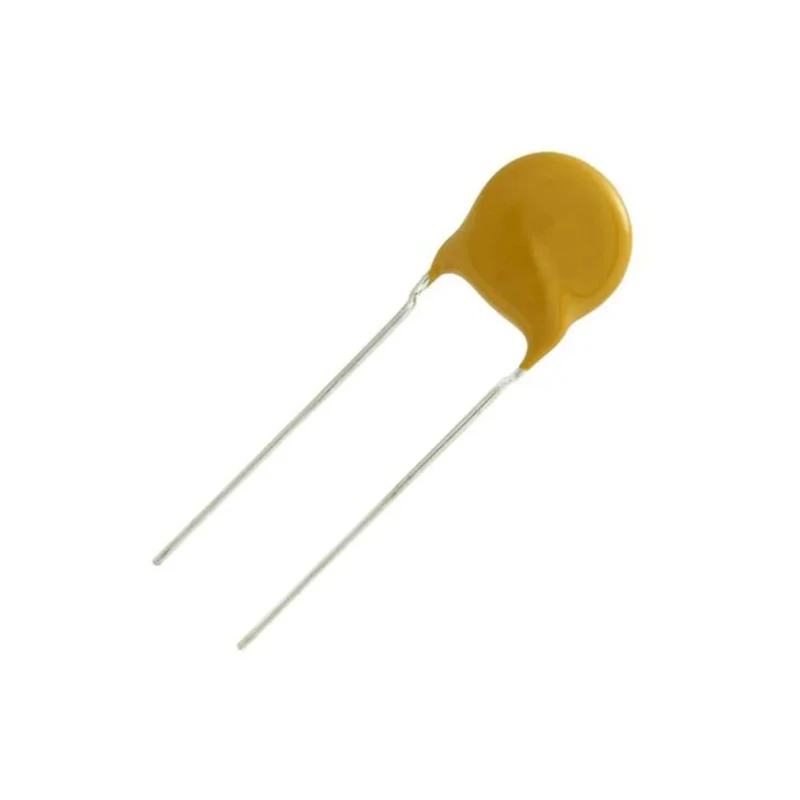

Vishay Single Layer Ceramic Capacitor 5 pF 1kV ±5% C0G Dielectric Through Hole Radial Terminal 561R10TCCV50

Free Delivery in India | Lowest Global Shipping Charges

Vishay Single Layer Ceramic Capacitor 5 pF 1kV ±5% C0G Dielectric Through Hole Radial Terminal 561R10TCCV50

Name: Vishay Single Layer Ceramic Capacitor 5 pF 1kV ±5% C0G Dielectric Through Hole Radial Terminal 561R10TCCV50
Brand: Vishay
SKU: 379869
Price: 0.71 USD
Availability: InStock



Category Single Layer Ceramic Capacitors Brand Vishay Condition New

Specifications

Country of Origin	India
Voltage	1kV
Diameter	6.4mm
Brand	Vishay
Model	561R10TCCV50
Packaging	Tape & Reel
Width	4mm
Mount Type	Through Hole
Series	561R
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	5pF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.1%
Pin Count	2
Dielectric	C0G
Suppression Class	Class I

Key Features

Features C0G dielectric for high stability and low losses.
Tolerance of ±5% ensures precise capacitance values.
Through hole radial terminal mount suitable for PCB applications.
Maximum operating temperature of 105°C for reliable operation.
Small form factor with 6.4 mm diameter and 4 mm width.
Dissipation factor of 0.1% for minimal energy loss.
Compliant with RoHS and relevant IEC standards.
Tape and reel packaging enables automated assembly processes.

Product Description

Vishay 561R10TCCV50 single layer ceramic capacitor is designed for reliable performance in electronic circuits requiring stable capacitance and high voltage tolerance. Equipped with a 5 pF capacitance and rated for 1 kV, this capacitor uses a high-quality C0G dielectric providing excellent temperature stability and minimal losses, making it ideal for precision applications.

The capacitor features a robust through hole radial terminal mount, facilitating secure PCB mounting and reliable electrical connections. Its maximum operating temperature is 105°C, enabling it to withstand typical industrial and commercial electronic environments.

This 561R series capacitor has a compact diameter of 6.4 mm and width of 4 mm, suitable for space-conscious circuit designs. The dissipation factor of 0.1% ensures efficient energy use with minimal wasted heat. It complies with global standards including RoHS, IEC 61249-2-21, and 2002/95/EC, supporting environmentally conscious manufacturing.

Supplied in tape and reel packaging, this capacitor supports high-speed automated soldering and assembly lines, enhancing production efficiency. Provides stable capacitance of 5 pF with ±5% tolerance. Operates safely at voltages up to 1 kV.

Designed for through hole mounting with radial terminals. High operating temperature rating of 105°C ensures durability. Compact physical size for versatile circuit integration. Low dissipation factor reduces energy losses in circuits.

Meets RoHS and IEC standards for quality and compliance. Packaging optimized for automated manufacturing processes.

This Vishay single layer ceramic capacitor is suitable for electronic, industrial, and laboratory applications requiring precision passive components. Browse the full range of capacitors and electronic components at EnvMart for high-quality solutions from reputable brands like Vishay.
