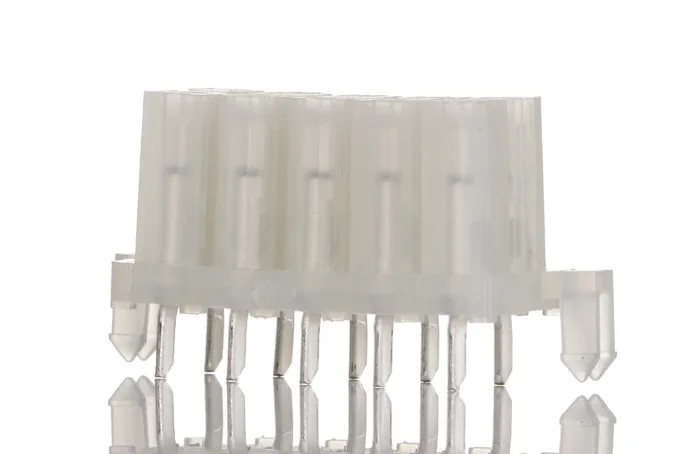

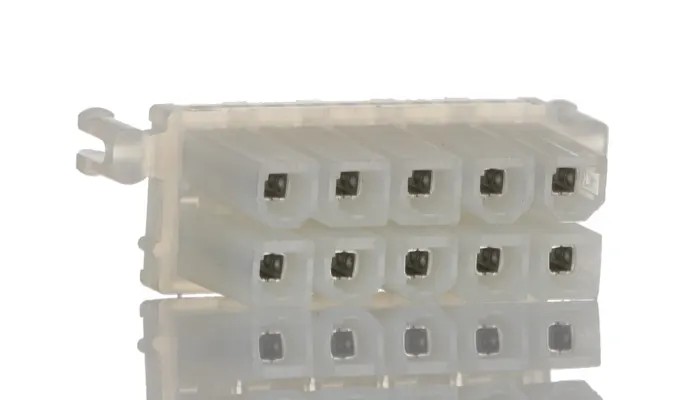

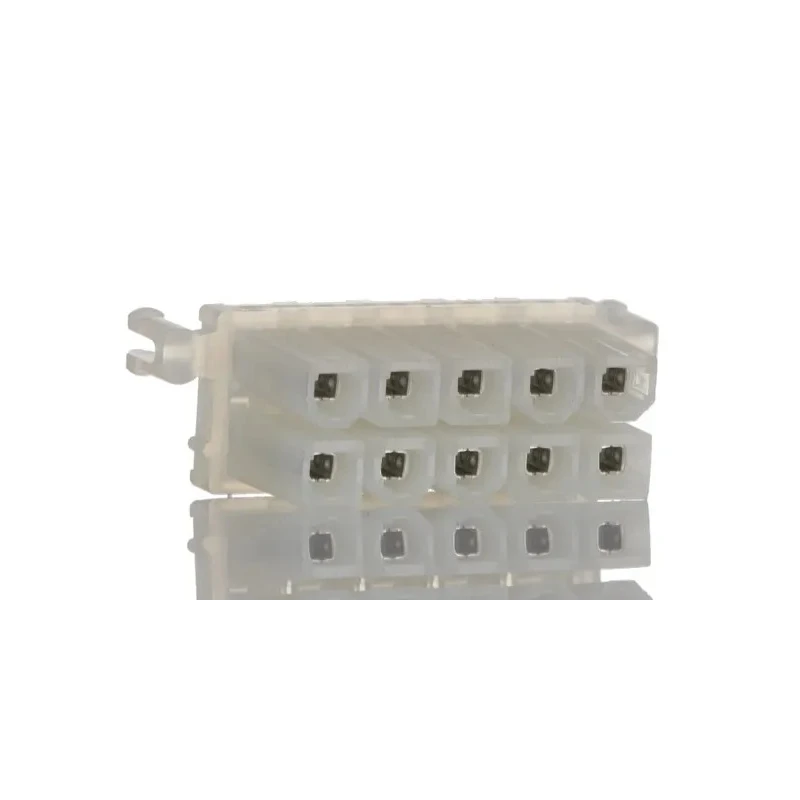

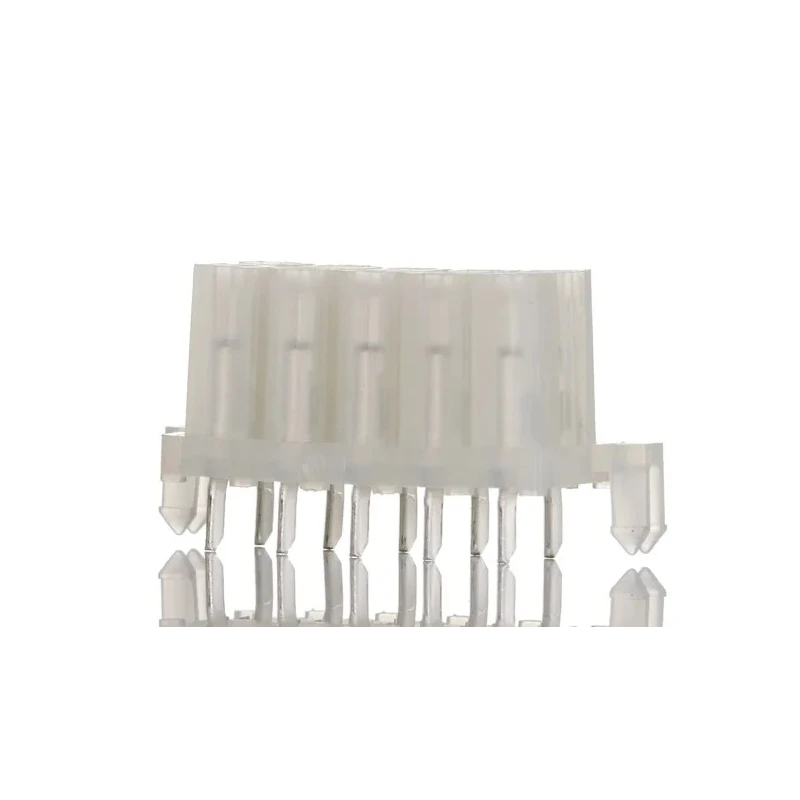

Molex Mini-Fit BMI Series PCB Socket Straight Through Hole 10-Contact 2 Row 4.2 mm Pitch 600V 9A 15-24-7100

Molex 15-24-7100 Mini-Fit BMI Series PCB Socket is a high-performance straight through hole connector designed for secure board-to-board connections. It features 10 male contacts arranged in 2 rows with a 4.2 mm pitch, enabling stable electrical transmission in demanding industrial settings.

The contacts are crafted from brass and plated with tin, ensuring excellent conductivity and corrosion resistance. The housing is molded from nylon, providing robust insulation and mechanical impact resistance.

This connector supports currents up to 9 amperes and operates at voltages as high as 600 volts. Its wide operating temperature range from -40°C to +105°C makes it suitable for harsh and variable environmental conditions. The through-hole solder termination guarantees strong mechanical and electrical connection to the PCB.

Designed with PCB retention features, the socket securely locks attached circuit boards, enhancing durability with a rated 30 mating cycles. The Mini-Fit BMI series also incorporates the Blind Mate Interface (BMI), simplifying alignment in board-to-board or panel-to-board applications.

Typical applications include automotive engineering, audio-visual devices, and consumer electronics where reliable power or signal transmission is critical. The connector’s resilience ensures stable performance in diverse industrial, manufacturing, and commercial environments.

Supports current up to 9A and voltage rating of 600V for robust electrical performance. Features durable brass contacts with tin plating for reliable electrical conductivity. Through-hole solder termination provides secure and stable PCB mounting.

Nylon housing provides excellent insulation and mechanical protection. Wide operating temperature range from -40°C to +105°C suitable for demanding environments. PCB retention feature ensures boards are firmly locked in place.

Durability rating of 30 mating cycles for long-term reliability. Compatible with Mini-Fit BMI series blind mate interface for easier alignment. Ideal for automotive, consumer electronics, and audio-visual devices. Explore more PCB connectors and sockets in the Electronics & Electricals category at EnvMart.
