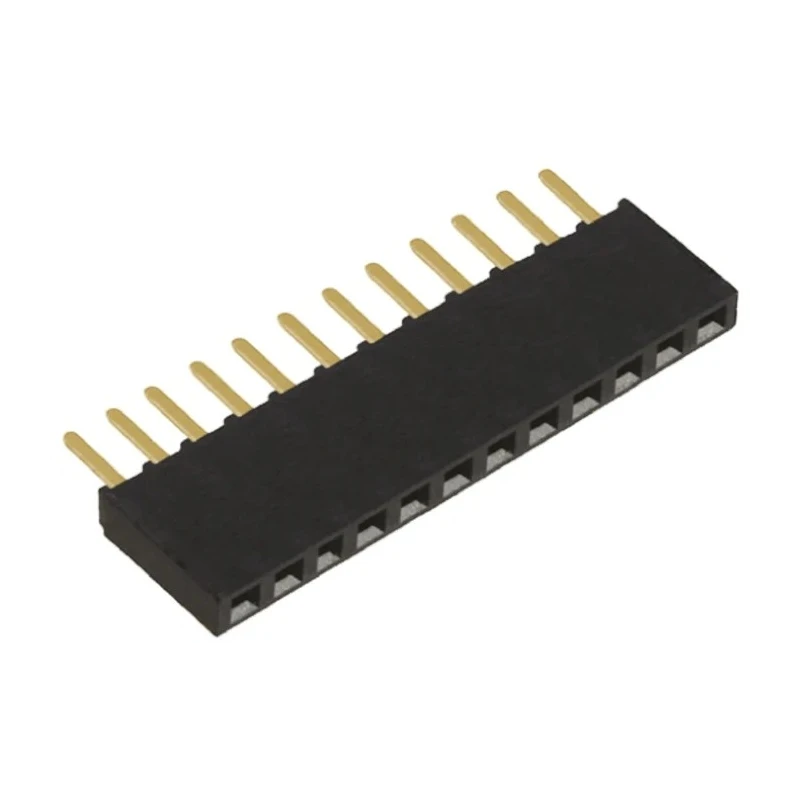

Samtec SSW Series Straight Through Hole PCB Socket 12-Contact 1 Row 2.54 mm Pitch Solder SSW-112-02-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-112-02-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contacts with 0.51μm gold plating ensure excellent conductivity.
- Operating temperature ranges from -55°C to 125°C for gold-plated versions.
- Through hole mount type with straight orientation for board-to-board connection.
- Compatible with TSW and TSM series headers for versatile applications.
- Ideal for industrial electronics, power connectors, and PCB interconnections.
- 12-contact 2.54mm pitch design suits precise and reliable PCB socket needs.
Product Description
Samtec SSW-112-02-G-S is a high-quality straight through hole PCB socket designed for board-to-board connections. Featuring 12 female contacts arranged in a single row with a 2.54 mm pitch, this socket uses a liquid crystal polymer housing for robust mechanical and electrical performance. It is designed for through-hole mounting with solder tail termination, providing reliable soldering and strong electrical contact.
The contacts are made from phosphor bronze and plated with 0.51 microns of gold, ensuring excellent conductivity and corrosion resistance. This socket supports a maximum voltage of 550V and a current rating of 6.9A. It operates effectively within a temperature range of -55°C to 125°C, making it suitable for demanding industrial and electronic applications.
The SSW series sockets mate with TSW and TSM series 2.54 mm pitch square post headers, offering flexibility for various board-to-board connection designs. This product is ideal for use in manufacturing, industrial equipment, power connectors, and electronics assembly.
Constructed with liquid crystal polymer housing for durability. Rated voltage of 550V and current capacity of 6.9A. Phosphor bronze contacts with 0.51μm gold plating ensure excellent conductivity. Operating temperature ranges from -55°C to 125°C for gold-plated versions.
Through hole mount type with straight orientation for board-to-board connection. Compatible with TSW and TSM series headers for versatile applications. Ideal for industrial electronics, power connectors, and PCB interconnections.
12-contact 2.54mm pitch design suits precise and reliable PCB socket needs.
This Samtec PCB socket is supplied new and packaged to facilitate efficient insertion into machinery and assembly lines. It enhances production efficiency by providing a dependable connector solution in electronics manufacturing environments.
Explore more Samtec products and PCB Sockets on EnvMart for your industrial and technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this socket is 550V.
This model has a current rating of 6.9A.
The contacts are arranged with a pitch size of 2.54 mm.
The contacts are made from phosphor bronze and are plated with 0.51 microns of gold for excellent conductivity.
It operates effectively within a temperature range of -55°C to 125°C.
This socket features 12 female contacts arranged in a single row.
It utilizes a through-hole mounting type with solder tail termination.
Yes, it is compatible with TSW and TSM series headers for versatile applications.
The housing is constructed from liquid crystal polymer, providing robust performance.
The orientation of this socket is straight, designed for board-to-board connections.
It is ideal for industrial electronics, power connectors, and PCB interconnections.
The country of origin for this product is India.
