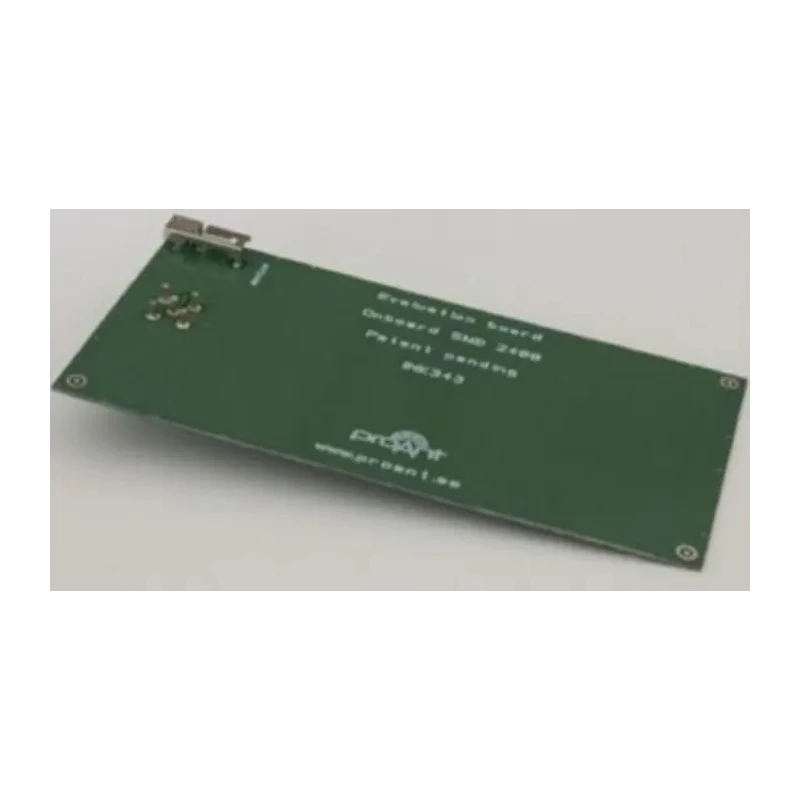

Abracon OnBoard 2.4 GHz SMD WiFi Evaluation Board for OnBoard SMD 2400 Antenna PRO-EB-450
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Model | PRO-EB-450 |
| Technology | Evaluation Board |
| For Use With | OnBoard SMD 2400 Antenna |
| Maximum Frequency | 2.45GHz |
| Kit Classification | Evaluation Board |
| Featured Device | PRO-OB-440 |
| Kit Name | OnBoard 2.4 GHz SMD - EVB |
| RF Technology | WiFi |
Key Features
- The board facilitates accurate antenna performance measurement using a Vector Network Analyser (VNA).
- Features a typical operating frequency range of 2.4 to 2.5 GHz suitable for multiple wireless protocols.
- Includes an SMA connector for easy connection to calibrated ports during testing.
- Supports mixed linear polarization with a peak gain of 5.2 dBi.
- Achieves an efficiency greater than 65% for reliable wireless communication.
Product Description
Abracon PRO-EB-450 WiFi Evaluation Board provides an essential platform to evaluate the OnBoard 2.4 GHz SMD antenna, optimized for applications in WiFi, Bluetooth, BLE, ZigBee, and other ISM band wireless communication systems. Operating predominantly at a frequency of 2.45 GHz, it enables precise assessment and calibration of antenna characteristics and performance.
The evaluation board is designed with an SMA connector allowing connection to a calibrated Vector Network Analyser (VNA) port, facilitating comprehensive testing across the 2.4 to 2.5 GHz band. This setup allows engineers to analyze antenna parameters including gain, efficiency, and polarization patterns with accuracy.
The antenna supported by this board exhibits mixed linear polarization with a peak gain of 5.2 dBi, ensuring effective signal reception and transmission. The device delivers physical and electrical compatibility for on-board antenna integration in various communication devices and IoT systems.
This product is ideal for industrial, laboratory, and development tool applications, aiding in the engineering evaluation phase of wireless communication devices. Suitable for use in development and prototyping of WiFi and Bluetooth-enabled embedded systems.
Facilitates engineering testing of OnBoard SMD 2400 Antenna. Operating frequency generally centered at 2.45 GHz compliant with WiFi and ISM usage. Peak gain of 5.2 dBi with efficiency exceeding 65%. Mixed linear polarization antenna design for broad application support.
Includes SMA connector for VNA connection and accurate antenna evaluation.
Choose Abracon Evaluation Boards for precise and reliable wireless antenna development. Explore extensive categories in electronic components and development tools at EnvMart for additional support products and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board supports a maximum frequency of 2.45 GHz, which is suitable for WiFi and ISM band applications.
It is optimized for applications in WiFi, Bluetooth, BLE, ZigBee, and other ISM band wireless communication systems.
The antenna exhibits a peak gain of 5.2 dBi, ensuring effective signal reception and transmission.
It includes an SMA connector that allows for easy connection to calibrated ports during testing with a Vector Network Analyser (VNA).
The antenna achieves an efficiency greater than 65%, which is important for reliable wireless communication.
This evaluation board facilitates accurate antenna performance measurement, allowing for precise assessment and calibration of antenna characteristics.
The antenna design supports mixed linear polarization, which broadens its application support.
The country of origin for this evaluation board is India.
The typical operating frequency range is from 2.4 to 2.5 GHz, making it suitable for various wireless applications.
It is ideal for industrial, laboratory, and development tool applications, particularly in the engineering evaluation phase of wireless communication devices.
The model number of this evaluation board is PRO-EB-450.
This product is classified as an Evaluation Board, specifically designed for use with the OnBoard SMD 2400 Antenna.
