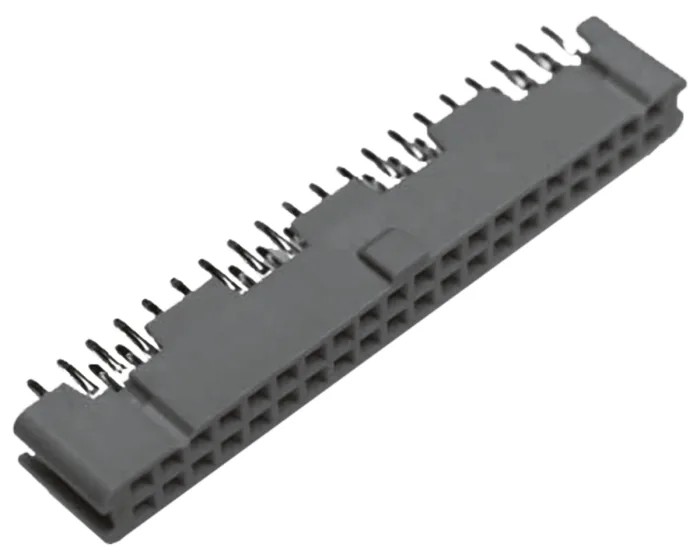

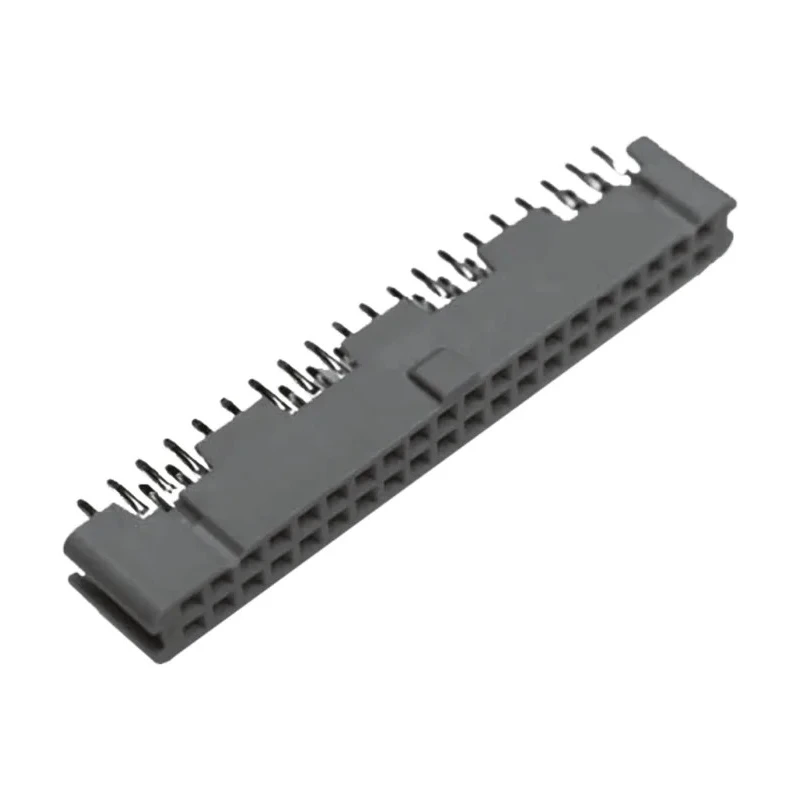

3M 9100 Series Straight Through Hole PCB Socket, 34-Contact, 2 Row, 2.54 mm Pitch, 12A Current, Solder 9134-4500PL

3M 9134-4500PL PCB Socket from the 9100 Series is a high-quality, straight through-hole connector designed for secure electrical connections between printed circuit boards. It features 34 female contacts arranged in 2 rows with a pitch of 2.54 mm, enabling compatibility with standard 34-way male headers. The socket supports a current rating of 12A and a voltage rating of 1kV, suitable for demanding electronic circuits.

The housing is constructed from glass-filled polyester, providing excellent mechanical strength, heat resistance, and flame retardancy, ensuring reliability under harsh operating conditions. Contacts are made of copper and plated with nickel over gold to ensure low contact resistance and long service life.

Operating temperature range spans from -55°C to 105°C, making this socket suitable for industrial, military, and commercial electronics applications including defense, computing, and communications.

Features such as dual polarization slots and a center bump on the housing prevent incorrect mating, enhancing system robustness and durability. This component is compliant with UL 94V-0 and RoHS 2011/65/EU standards ensuring safety and environmental compliance.

The compact size and straight orientation allow efficient use of PCB space, offering a practical and reliable solution for board-to-board connections. Its through-hole mount ensures strong mechanical attachment.

The socket supports a current rating of 12A for robust electrical performance. Features a glass-filled polyester housing for strength, heat resistance, and flame retardancy. Through-hole mount type with straight orientation ensures easy and secure PCB installation.

Contacts are copper with nickel over gold plating, enhancing conductivity and corrosion resistance. Operates safely within a voltage rating of 1kV and withstands temperatures from -55°C to 105°C. Complies with UL 94V-0 and RoHS 2011/65/EU standards for quality and environmental safety.

Designed with dual polarization slots and center bump to prevent incorrect mating. Compact dimensions make it suitable for space-limited electronics assembly and military applications.

Ideal for use in electronic assemblies, computing equipment, defense applications, and communications hardware, this 3M PCB Socket delivers high performance and durability. Browse more PCB connectors and sockets from EnvMart to find the perfect fit for your electronic design projects.
